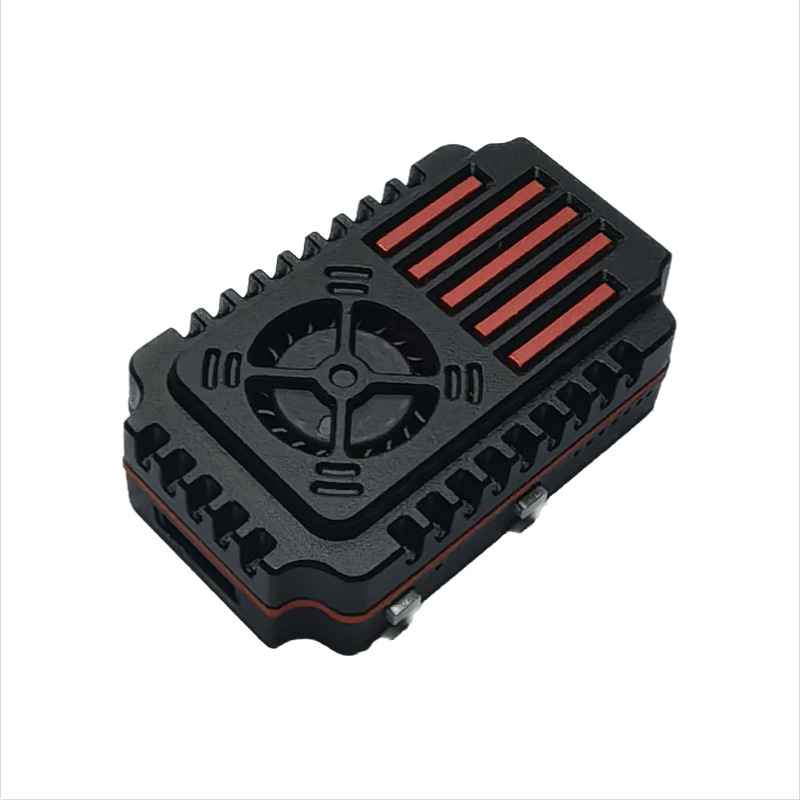

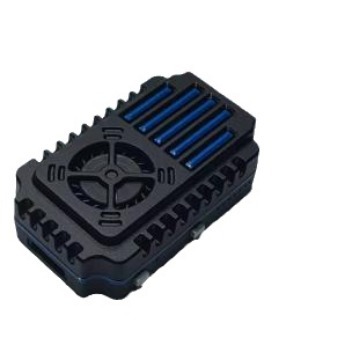

Analog VTX

Frequency: 1.080-1.420G
Maximum Power: 2W
Maximum Distance: 15KM
Frequency Point: 1.2G
Input Voltage: Operating Voltage: 7-36V
Maximum Operating Current: 12V/1.2A
Output Voltage: 5V/500mA
Video Format: NTSC/PAL
Output Power: PIT/25mW/1500mW/2500mW
Frequency Point: 80CH
Dimensions: 36mm×36mm×8mm
Mounting Holes: Mounting Hole Spacing: 30.5×30.5mm M3

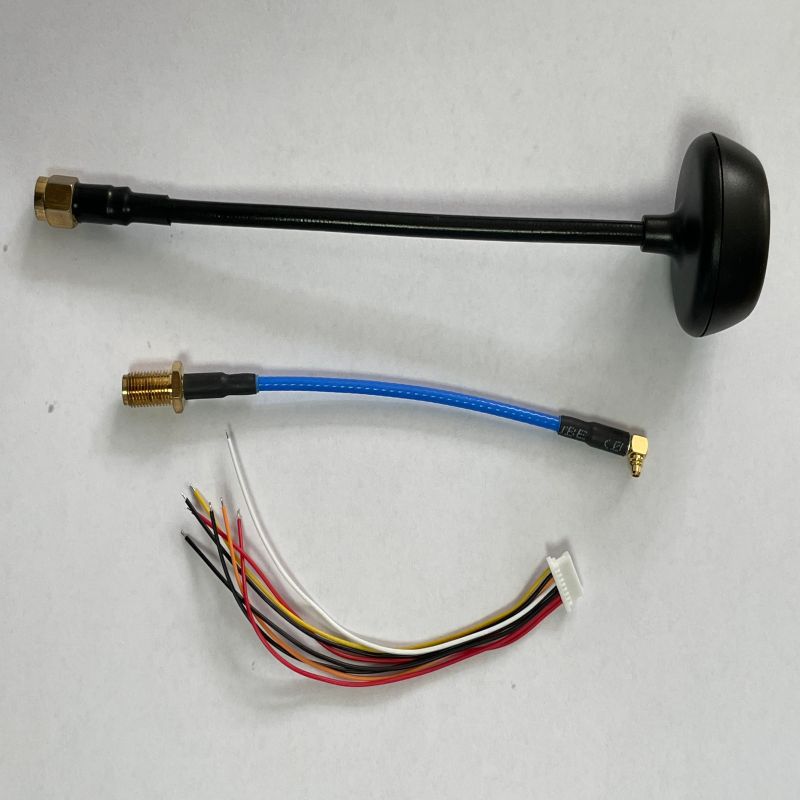

Antenna Connector: MMCX
Video Transmission Protocol: IRC
Weight: 16.6g

Power、Range、Band:

3W、15KM、4.64G-4.78G
