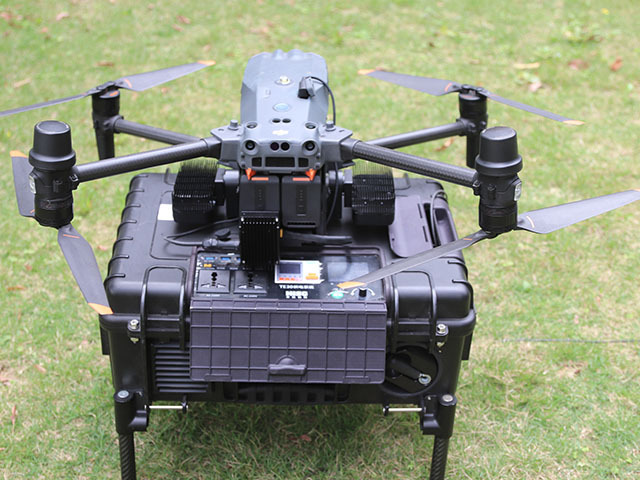

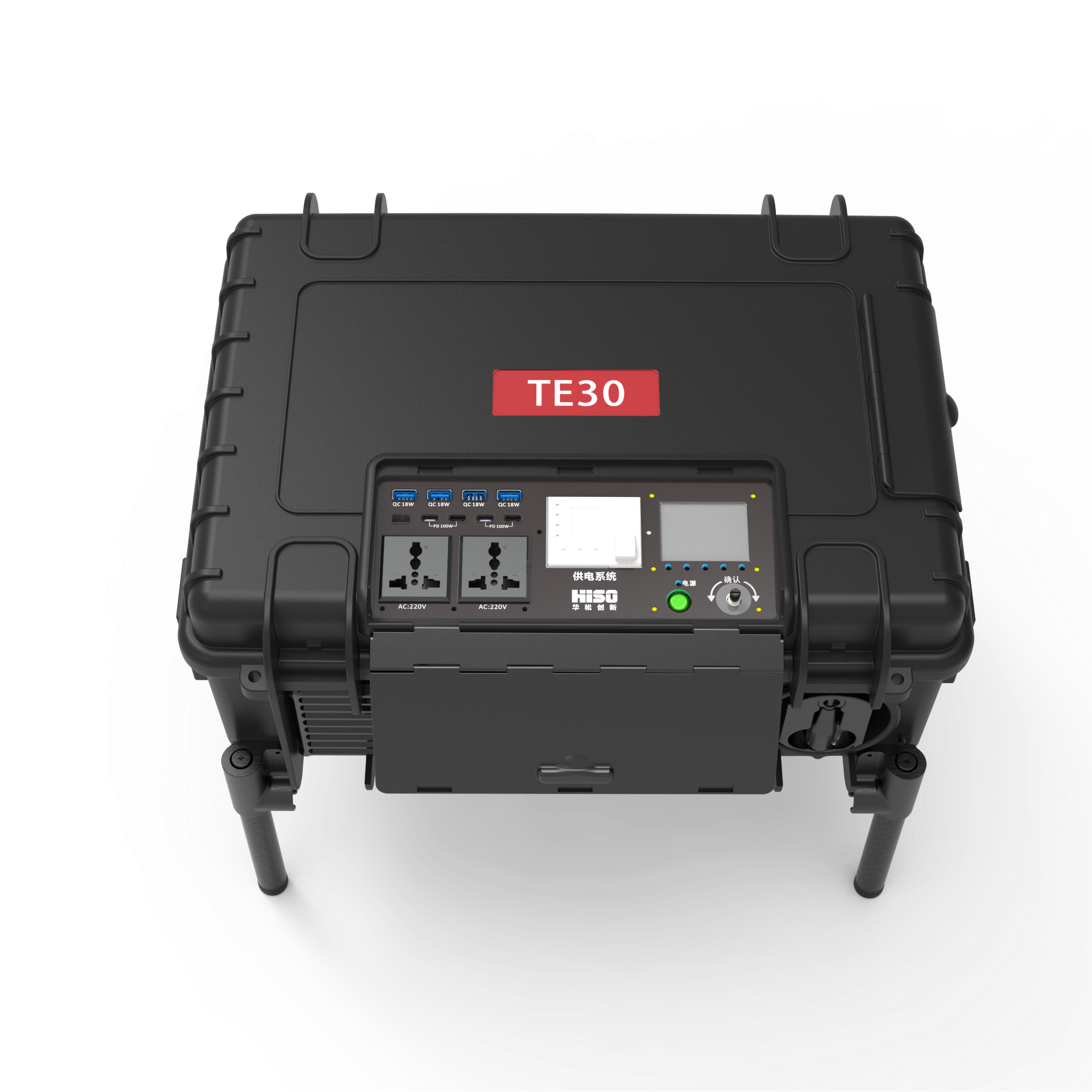

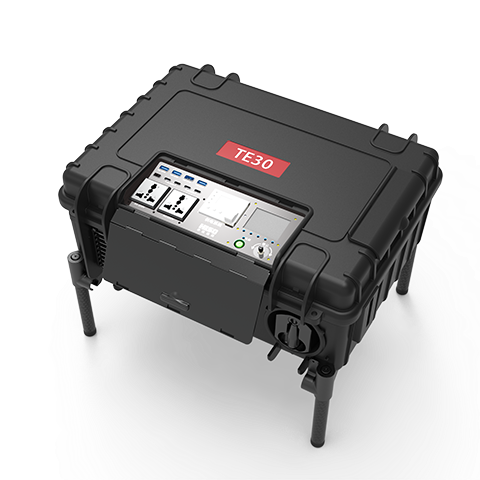

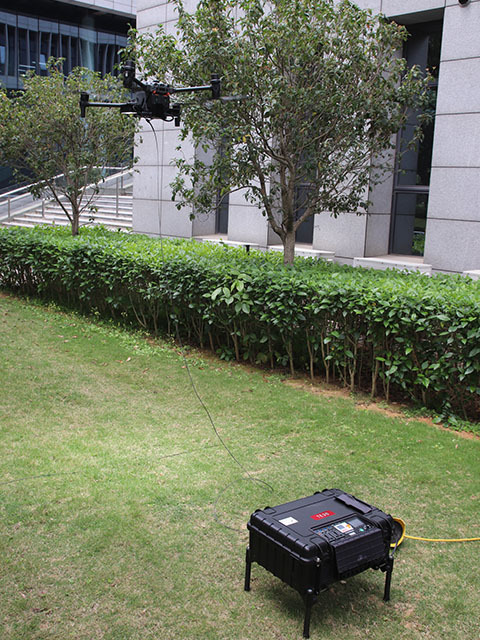

The TE30 power supply system is a backpack system for M30. The mooring box console is equipped with an LED lighting system; The mooring box provides a foldable tripod function, which can avoid contact with harsh ground environments when deployed on the ground, thus protecting the mooring box; The box body adopts a backpack design, and the box material is made of environmentally friendly material. The part that fits the human back conforms to ergonomic design, which is comfortable and durable, suitable for individual soldiers to carry over long distances. While high integration provides portability, the automatic wire retraction and pay-off function of the 55-meter cable can ensure that the mooring system can be quickly deployed and retrieved, reducing the impact and bending of the cable, and it is an effective device to protect the cable.
Item
Specification
Airborne Module Size
100mm80mm40mm
Weight
200g
Output Power
1500W
Ground-end Size of Mooring Box
480mm380mm220mm (including backframe)
Mooring Box Weight
10kg
Mooring Box Rated Power
2KW
Cable Length
55 meters
Operating Temperature
-20℃ - +50℃

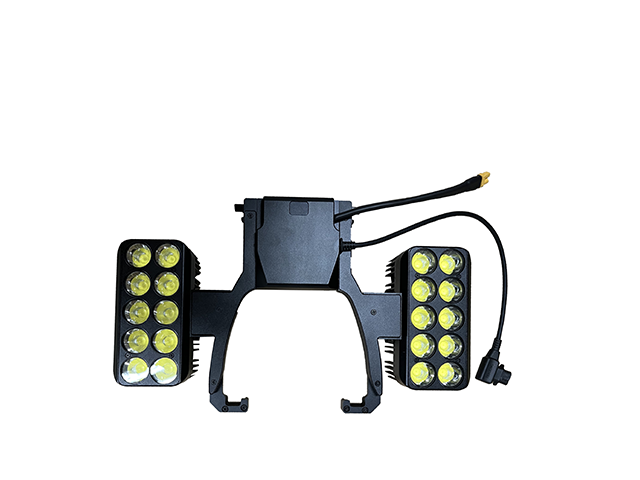

TE30-450 Flood Light
Specification
Overall Dimensions
270mm×155mm×63mm
Supply Voltage
DC 17-28V
Weight
650g
Light Type
White Light (6500K)
Total Power
450W/50000LM
Adjustable Rotation Range
Pitch -45° ~ 45°
Light Irradiation Angle
White Light 60°
Installation Method
Bottom Quick Installation, No Modification to the Aircraft for Light Installation
