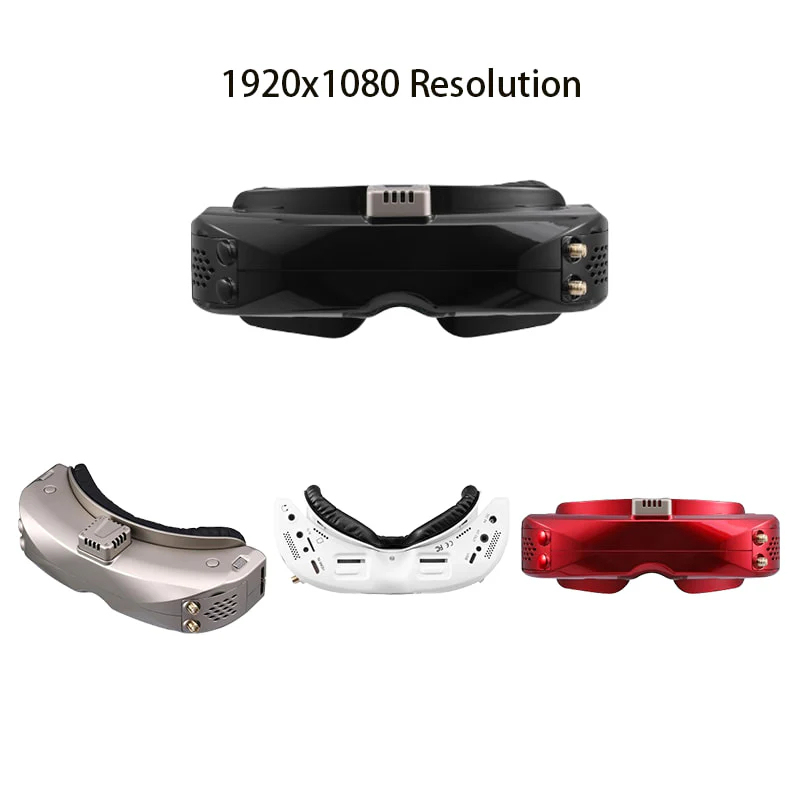

| 1 |

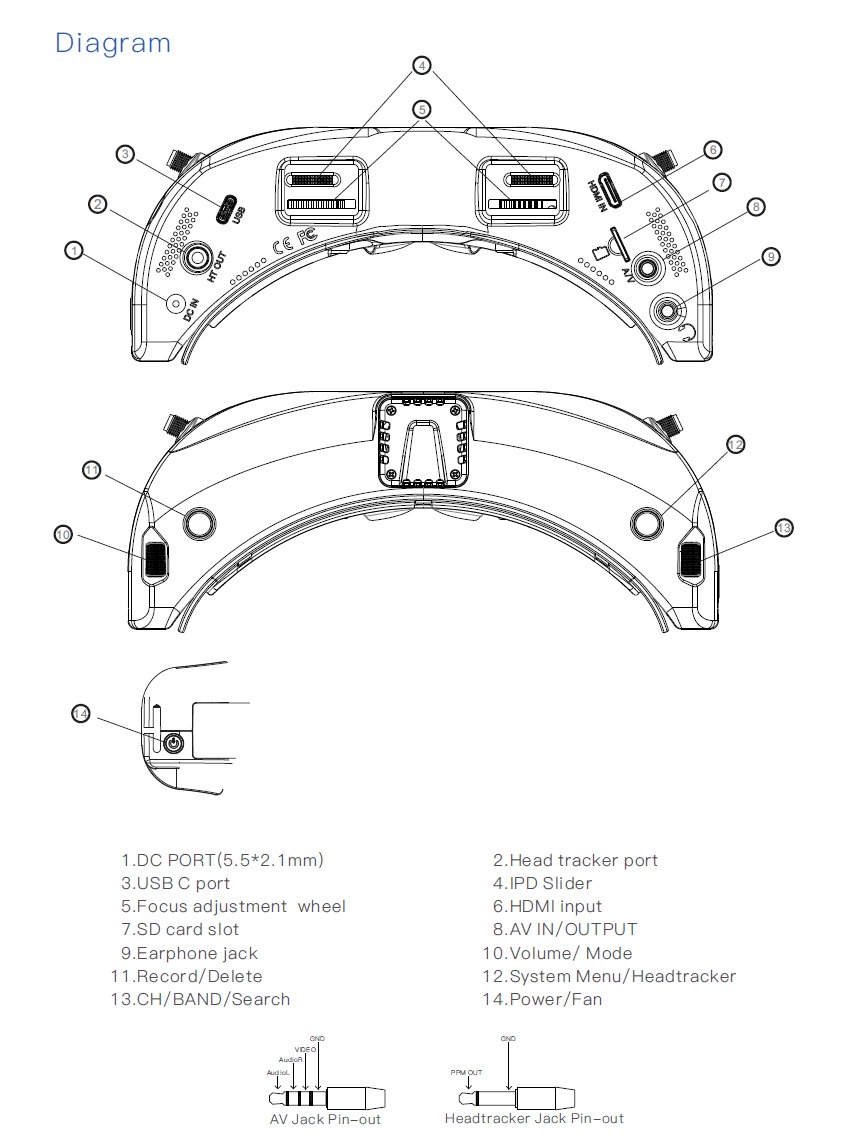

DC PORT(5.5*2.1 mm) |
Provides external power supply for the FPV goggles, a standard power connector size for RC model equipment. |
| 2 |
Head tracker port |
Connects to the head tracking module, enabling flight view to synchronize with head movements for an enhanced immersive FPV experience. |
| 3 |
USB C port |
Used for firmware updates, flight video data transfer, and can substitute the DC port for power supply in some scenarios. |
| 4 |
IPD Slider |
Adjusts the distance between the left and right lenses (IPD = Interpupillary Distance) to match different users' pupillary distances, ensuring clear image alignment. |
| 5 |
Focus adjustment wheel |
Adjusts lens diopter (typically supporting -6~+2 adjustment), allowing users with myopia/hyperopia to view images clearly without additional glasses. |
| 6 |
HDMI input |
Receives high-definition video signals from external devices (e.g., drone video receivers, computers) and supports high-frame-rate input. |
| 7 |
SD card slot |
Accepts an SD card to record FPV flight footage, supporting common specifications such as H.264 encoding and 60fps recording. |
| 8 |
AV IN/OUTPUT |
Transmits analog video signals, compatible with traditional analog video receivers or external monitors for sharing flight footage. |
| 9 |
Earphone jack |
Connects to headphones to receive flight audio (e.g., drone status prompts, pilot communication voice). |
| 10 |
Volume/Mode |
Adjusts headphone volume and switches operating modes (e.g., recording mode, video reception mode). |
| 11 |
Record/Delete |
Starts/stops video recording with one click, or deletes recorded video files. |
| 12 |
System Menu/Head tracker |
Accesses the system settings menu, or enables/disables the head tracking function. |
| 13 |
CH/BAND/Search |
Switches channels/bands for 5.8GHz analog video transmission, or automatically searches for available video signals. |
| 14 |
Power/Fan |
Controls the goggles' power on/off and the cooling fan's operation (to dissipate heat for the high-performance OLED panel). |
