Home > All Collections > Drone Accessories > Batteries & Chargers > 【N162 Ah】Sodium-ion batteries for electrical energy storage
  • 【N162 Ah】Sodium-ion batteries for electrical energy storage,XH-Nexus,【N162 Ah】Sodium-ion batteries for electrical energy storage
  • 【N162 Ah】Sodium-ion batteries for electrical energy storage,XH-Nexus,【N162 Ah】Sodium-ion batteries for electrical energy storage

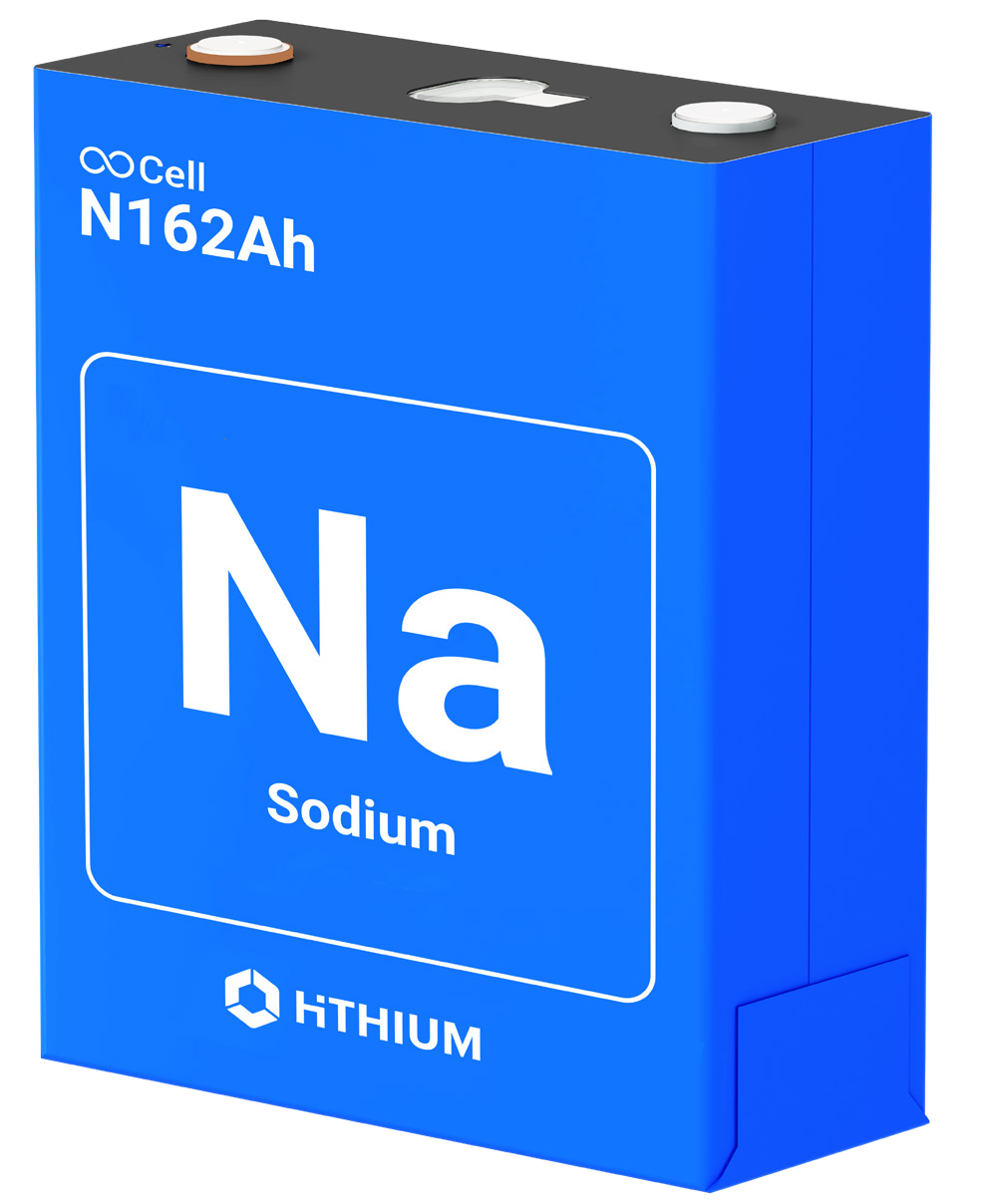

【N162 Ah】Sodium-ion batteries for electrical energy storage

Sodium Iron Phosphate Pyrophosphate (NFPP) Energy Storage Battery

  • Features: Long cycle life, wide operating temperature range, and high safety.

High Safety & High Reliability

  • Suitable for electrical energy storage scenarios.
  • Product Certifications:
    GB/T 44265, UL1973, UL9540A, UN 38.3
  • Company Certifications:
    ISO 9001, ISO 14001, ISO 45001
  • Environmental Compliance:
    RoHS, REACH, Battery Directive

High Safety

  • ≥ 20,000 cycles life, with advanced materials and process technology.
  • ≥ 94% energy efficiency @1P.
  • Specifically designed for electrical energy storage systems.

Wide Temperature Range Scenarios

  • Extreme operating temperature range: -40~60℃.

Strong Safety and Reliability

  • Withstands full-needle penetration and large-area extrusion without fire or explosion.
GET A QUOTE
  • 【N162 Ah】Sodium-ion batteries for electrical energy storage,XH-Nexus,【N162 Ah】Sodium-ion batteries for electrical energy storage

Description

Category Parameter Specification
Basic Parameters Nominal Capacity 162 Ah ¹·²
Nominal Energy 456.8 Wh ¹·²
Material System NFPP/HC ⁵
Cycle Life ≥20,000 ¹·²·³
Mass Energy Density ≥95 Wh/kg
Volumetric Energy Density ≥173.9 Wh/L
Product Model NA162P100A
Electrical Parameters Nominal Voltage 2.82 V ¹·²
Operating Voltage 1.5 ~ 3.3 V
Internal Resistance (1 kHz) 0.18 mΩ + 0.05
Maximum Self-Discharge Rate 3% / month ²
Standard Charge/Discharge C-rate 1P/1P
Mechanical Interface Dimension (L×W×H) 174.70×71.70×207.11 mm
Type Prismatic Cell
Weight 4.6 kg +/- 0.2
Volume 2.59 L
Temperature Range Charging -10℃ ~ 60℃
Discharging -40℃ ~ 60℃
Storage (Recommended) -20℃ ~ 35℃
Product Certification* Certifications & Reports GB/T 44265, UL 9540A, UL 1973, UN 38.3
Environmental Compliance* Compliance RoHS, REACH, Battery Directive
Company Certifications Certifications ISO 9001, ISO 14001, ISO 45001

Notes

¹ 1P/1P
² 25℃ +/- 2.0
³ 70% SOH
⁴ Na₂Fe₃(PO₄)₂P₂O₇
⁵ Hard Carbon
* Under Certification
