NC3

GET A QUOTE
  • NC3,XH-Nexus,XY-2587 UAV Communication Product | Radio Datalink | XH-Nexus
  • NC3,XH-Nexus,XY-2587 UAV Communication Product | Radio Datalink | XH-Nexus
  • NC3,XH-Nexus,XY-2587 UAV Communication Product | Radio Datalink | XH-Nexus
  • NC3,XH-Nexus,XY-2587 UAV Communication Product | Radio Datalink | XH-Nexus

Description

Product Introduction

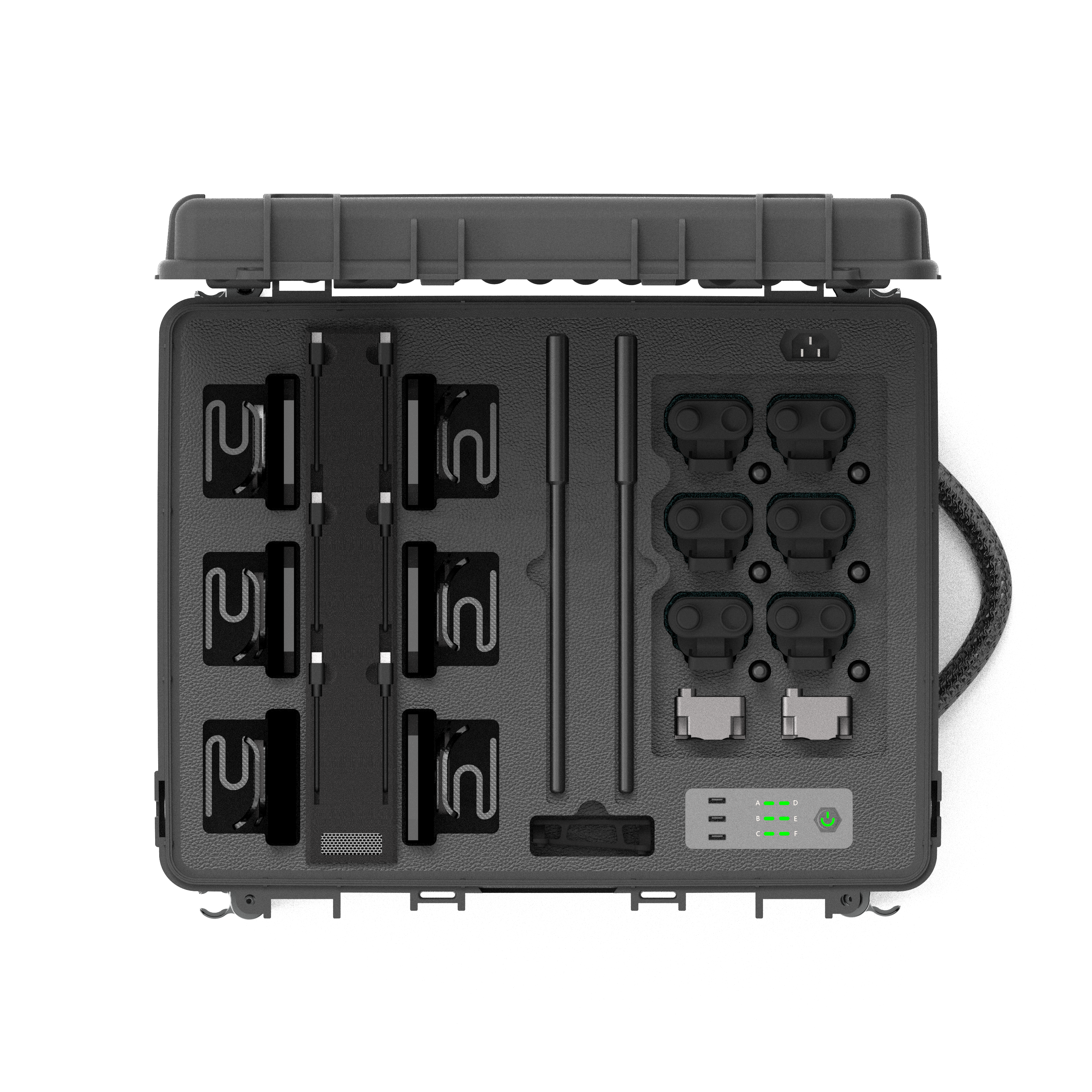

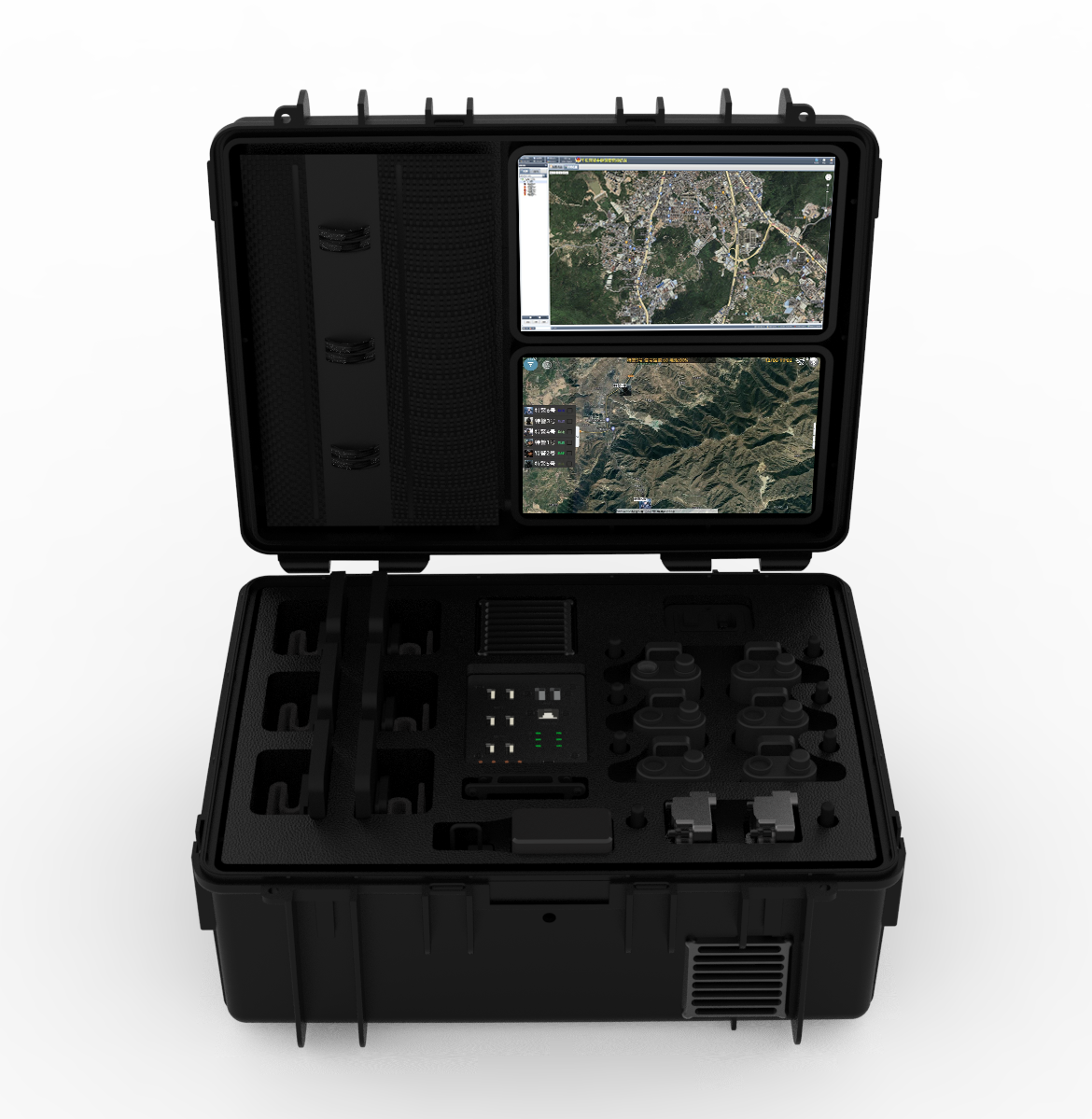

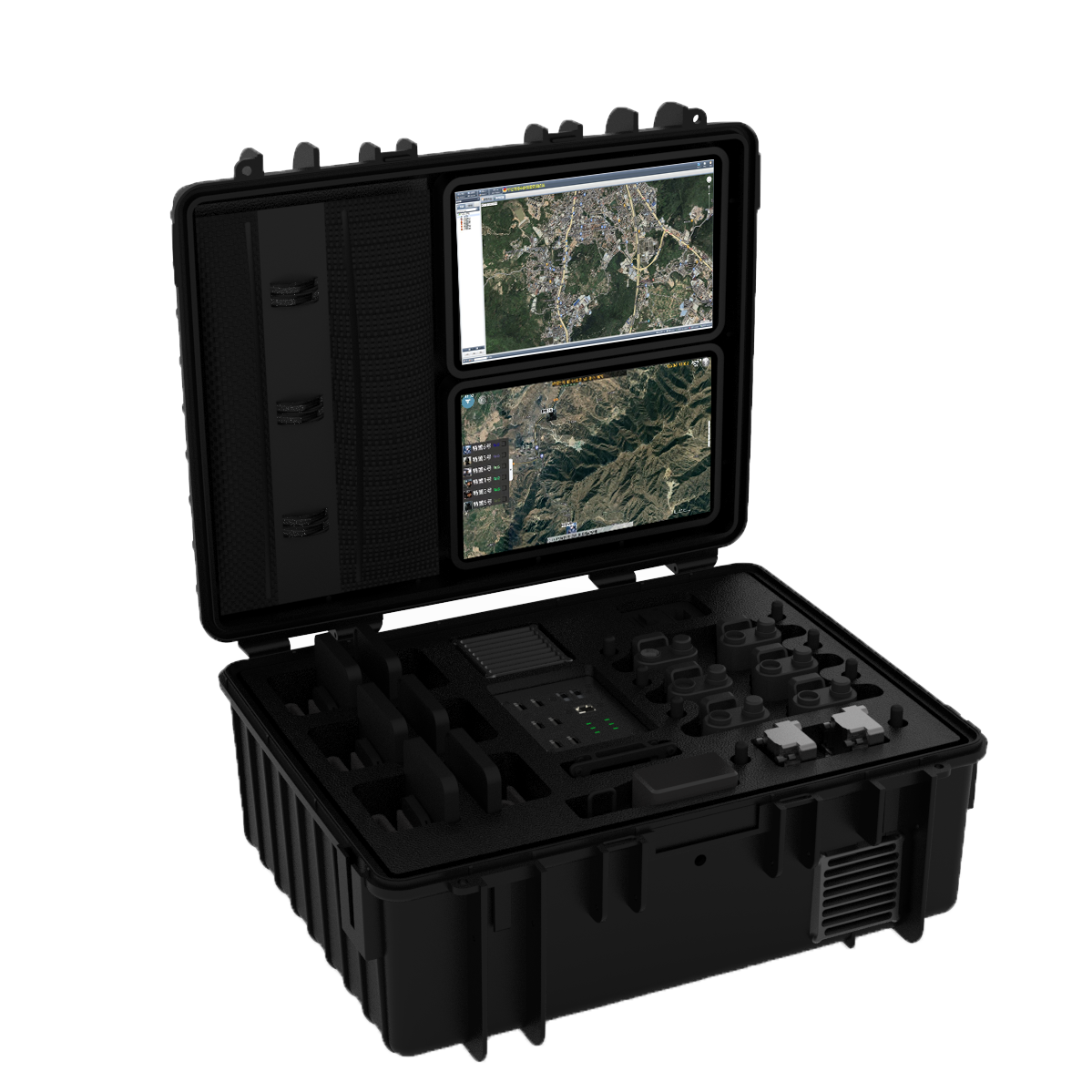

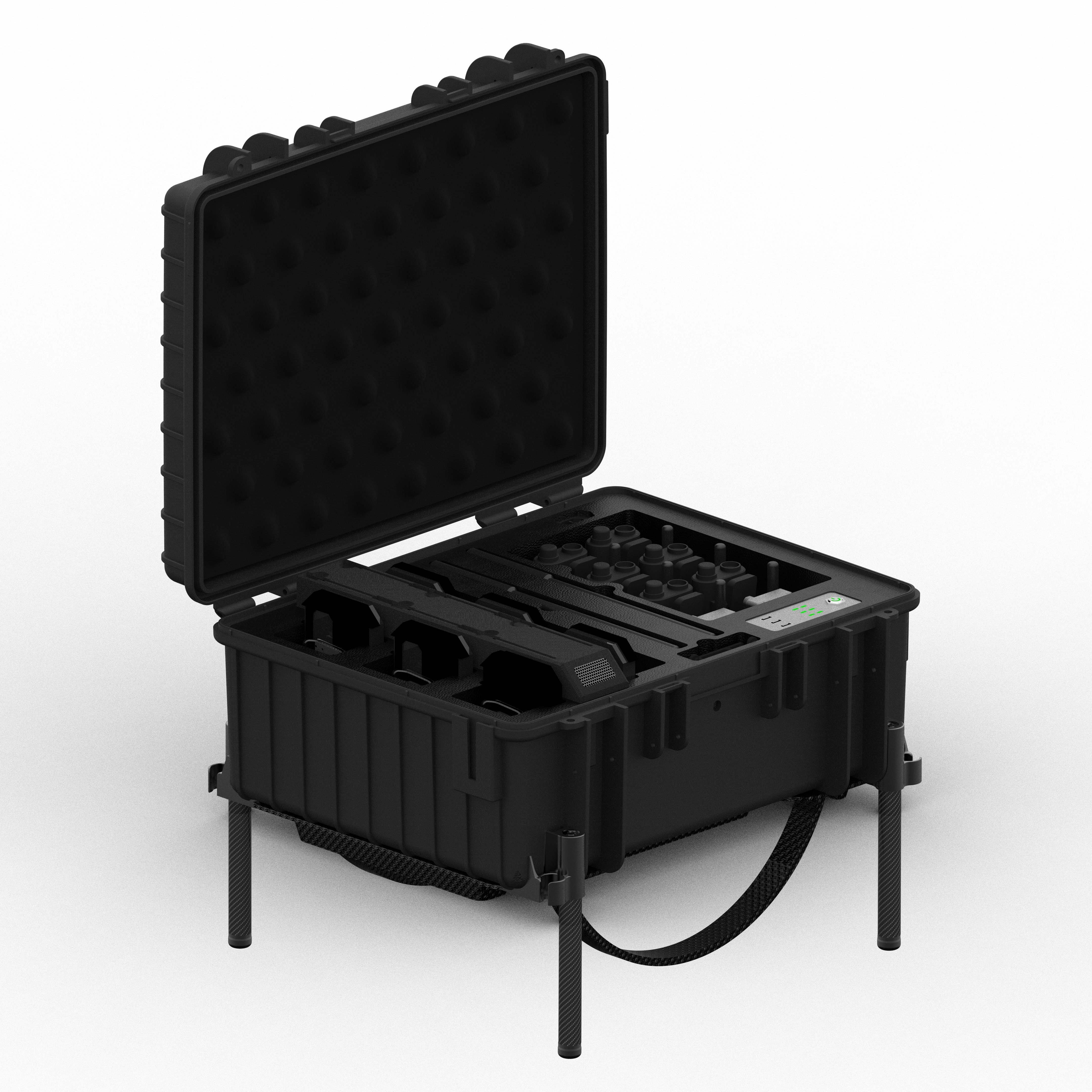

The case of this product is built-in with airborne communication relay, ad hoc network voice handset, wearable dedicated tablet computer, battery, charger and other devices. It can automatically charge 6 handsets at the same time and display the charging status in real time.
The wearable dedicated tablet computer contains scheduling and positioning software HS.
The software has user registration and device registration management functions, offline and online high-definition map functions, and handset positioning function. It can use the Beidou and GPS chips built into the handset to achieve precise positioning of the handset, record the track points of each handset, and calculate the distance point between the calling device and the local device.

Product Advantages

  • Intelligent automatic addressing to complete wireless networking, with the whole network on the same frequency;
  • Built-in scheduling and positioning software HS;
  • Fast networking speed, strong independence, high survivability, flexible network expansion, and a built-in charging system in the case;
  • Can charge handsets and batteries;

Technical Parameters Details
Airborne Module Size 80mm80mm50mm
Weight 250g
Power Supply Mode of Airborne Communication Relay Power supply from aircraft fuselage, input range DC 9-25V
Communication Distance 15km@single relay (unobstructed line of sight) / 60km@six relays (maximum radius of relay in plain area is 25km)
Case Size 520mm435mm235mm
Weight 10kg
Working Mode Same-frequency relay, maximum support for 6 hops
Working Temperature -10℃~60℃
Maximum Signal Reception Level -7dBm
