Description

Product Advantages

  • Lightweight design, compact and portable;
  • Waterproof and dustproof;
  • Simple operation, the relay can work immediately after being turned on;

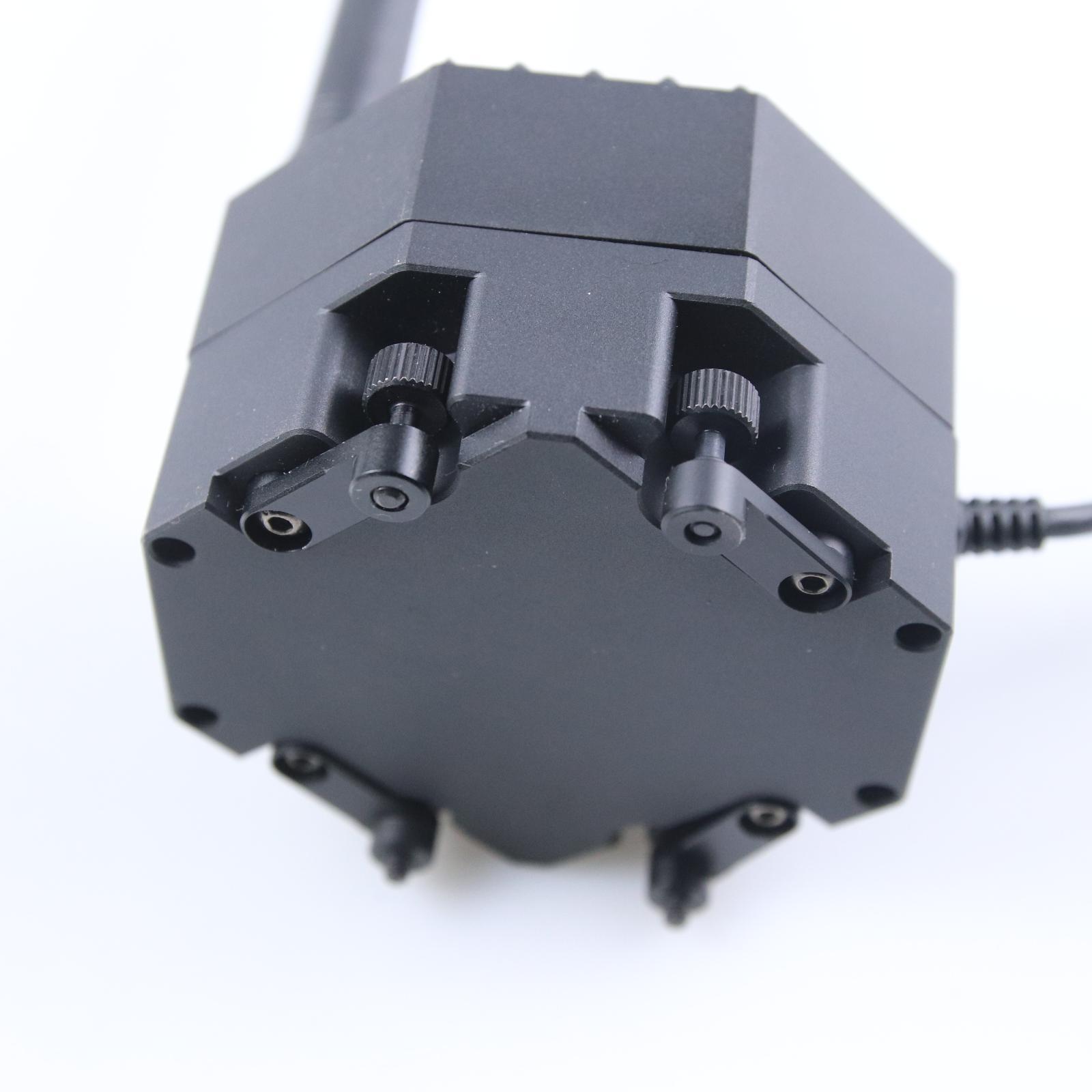

  • Top quick installation in 10 seconds;



Product Introduction

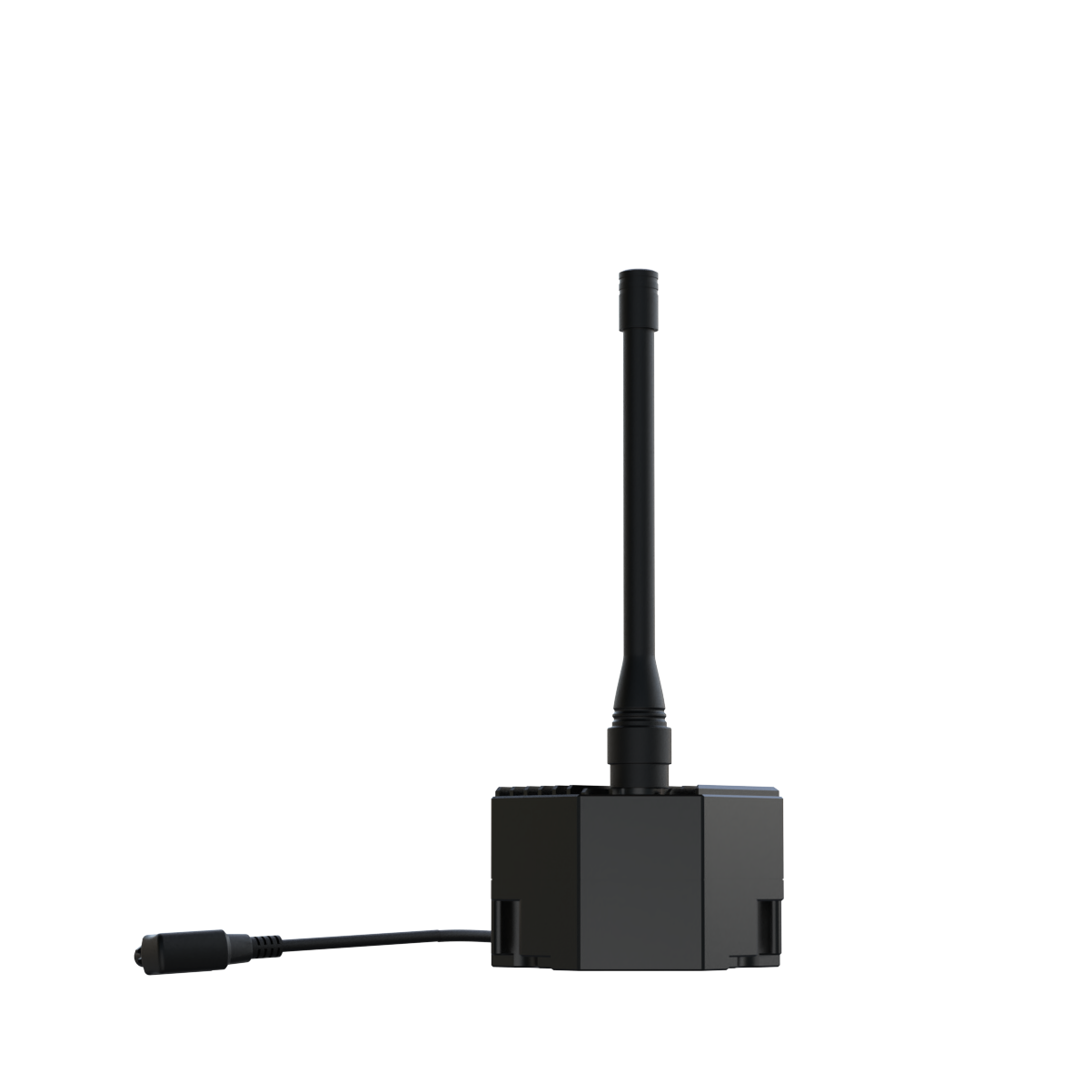

It is a narrowband voice relay with a compact and portable body, compatible with the PDT digital conventional system. It uses a standard portable antenna, can be carried around, and supports quick deployment to extend on-site networking.
The relay can work immediately after being turned on, and the frequency and group number can be changed directly on the UAV remote controller, which is convenient and practical. It can help extend the network to blind areas such as high-rise underground buildings, tunnels, super-large complex buildings, as well as petrochemical enterprises and tunnels on site.
It can be used in various extreme situations for a long time to provide reliable emergency communication support on site. It is waterproof and dustproof, and can work reliably in harsh weather conditions.

Technical Parameters

Parameter Category Details
Frequency Range 350MHz-470MHz (divided into two versions: 350-390MHz and 400-470MHz)
Channel Capacity 1024
Channel Spacing (Digital) 12.5KHz
Working Mode Time Slot Relay
Working Voltage 9-24VDC
Operating Temperature -30℃~+60℃
Storage Temperature -40℃~+85℃
Waterproof Grade IP67
Built-in Vocoder Support NVOC/Air Interface
Weight 220g (excluding antenna)
Dimension (L×W×H) 75×75×53mm (excluding antenna)
Frequency Writing Method Direct frequency writing via PSDK UAV remote controller, including group number and color code
Positioning Method Supports Beidou single-mode positioning
Supported Mode PDT Digital Conventional
Startup Time 1 minute for cold start, 10 seconds for hot start
