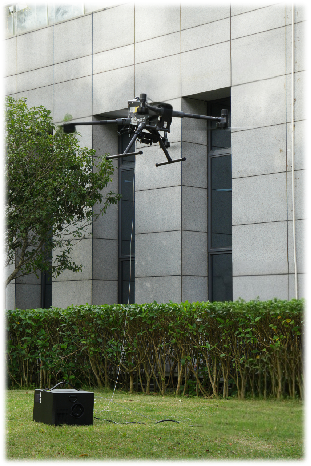

The TE400 Air-Ground Power Supply and Lighting System is compatible with the DJI Matrice M400 series. It converts single-phase alternating current into high-voltage direct current, transmits it to the onboard power supply via high-performance nickel-alloy power cables, and continuously supplies power to the aircraft. When used with a backup battery, it can achieve continuous operation for up to 12 hours with ultra-long endurance while ensuring safe flight. It also features an ultra-miniature high-power lighting system.

The TE400 Air-Ground Power Supply and Lighting System consists of three main parts: an onboard power supply, a manual-automatic integrated cable reel, and a ground lighting system. The manual-automatic integrated cable reel integrates a ground power supply, high-performance power cables, and an automatic cable reeling and unreeling device. It provides backpack and hand-carry capabilities. The highly integrated ground power supply system not only offers portability but also ensures that the automatic cable reeling and unreeling function for cables up to 110 meters can be executed quickly. It can also reduce cable impact and bending, effectively protecting the cables.

In special applications, the TE400 can support the M400 as a relay drone for relay tasks with a maximum range of 150 meters.

Technical Parameters

Parameter	Specification
Ground Box Dimension	≤355mm×262mm×230mm
Ground Box Weight	≤8.5kg
Onboard Weight	<600g
Cable Length	Cable Length ≥110m (Lighting); Cable Length ≥160m (As a Relay Drone)
Ground Power Interruption Protection Function	During the drone's flight, if the ground power supply is abnormally interrupted, the drone can fly and land normally.
Overall Control Method	The entire power supply system is fully integrated into the DJI system and can be directly controlled via DJI Pilot2 APP, WeChat Mini Program, or a dedicated APP.

Lighting Platform - Onboard

Onboard Light Parameter	Specification
Onboard Light Dimension	≤300×120×40mm (Single Side)
Onboard Light Supply Voltage	DC 24-60V
Onboard Light Installation Method	Quick-release on the shoulder, no modification to the aircraft for light installation, enabling 3-second overall disassembly and assembly
Onboard Light Type	6500K White Light, Red-Blue Stroboscopic Light
Total Power of Onboard Light	Low-voltage Lamp: ≥1200W/120000LM (White Light) (High-power Lamp Customizable)

Lighting Platform - Ground

Parameter	Specification
Power	≥400W
Ground Light Weight	≤300g
Control Mode	Controlled by Mobile WeChat Mini Program and APP, allowing control of switch, brightness, and combat mode, which is convenient and practical
Installation Method	Quick installation, compatible with tripod installation; equipped with extendable legs, the light supports near and far lighting and white light stroboscopy
IP Protection Class	IP55
