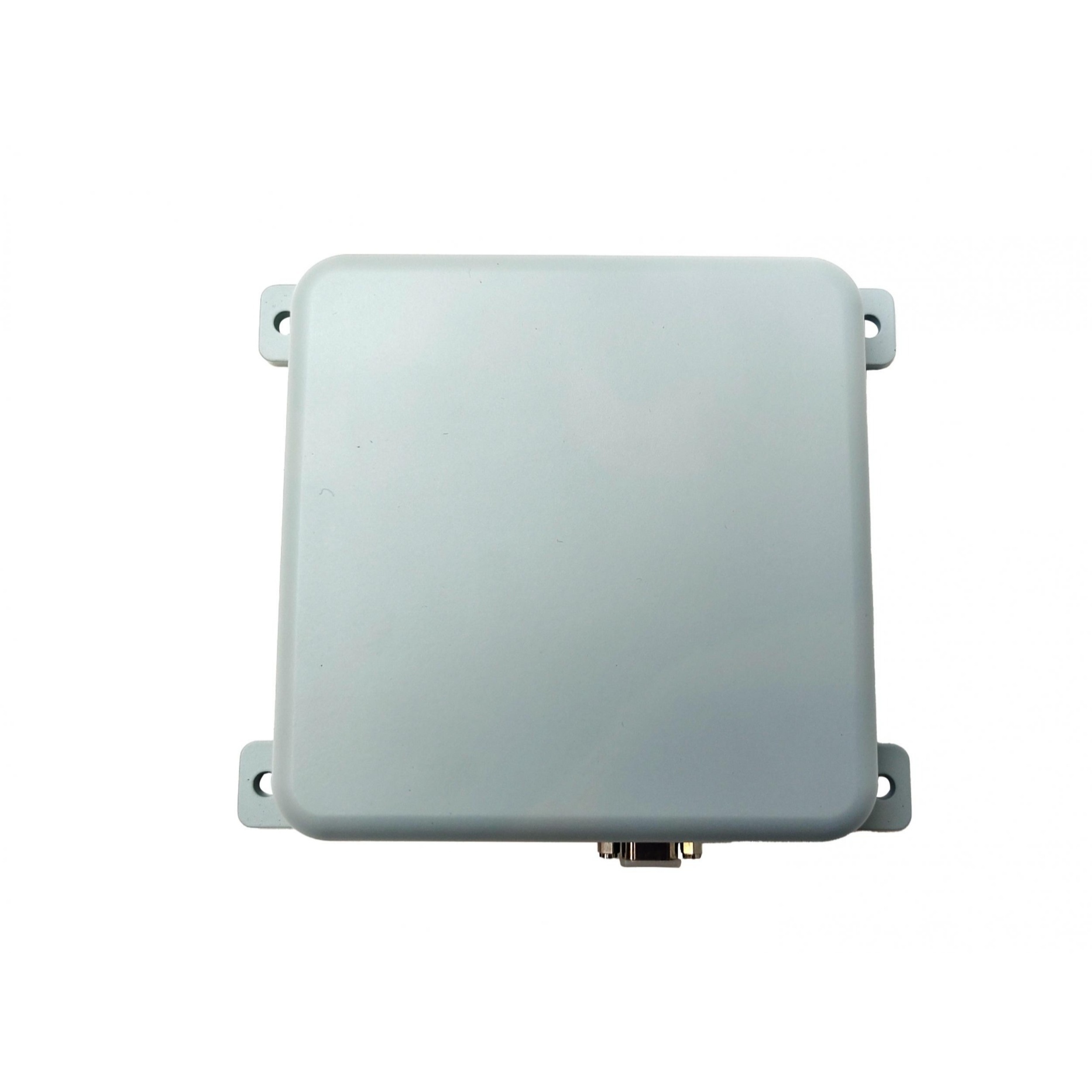

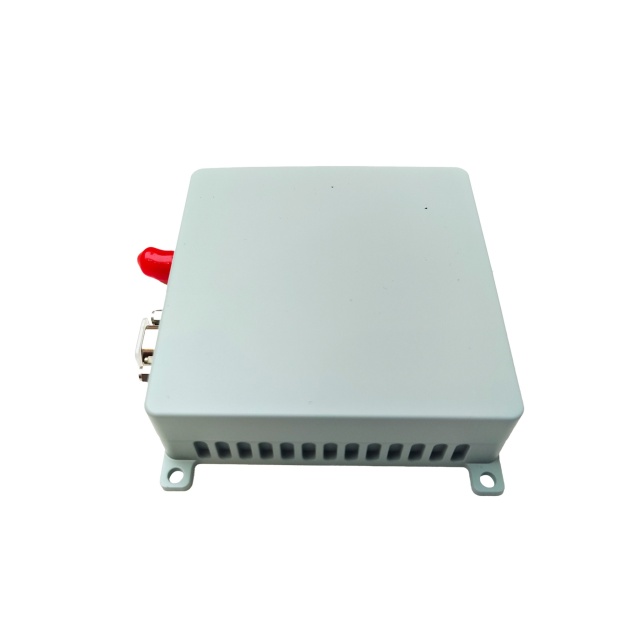

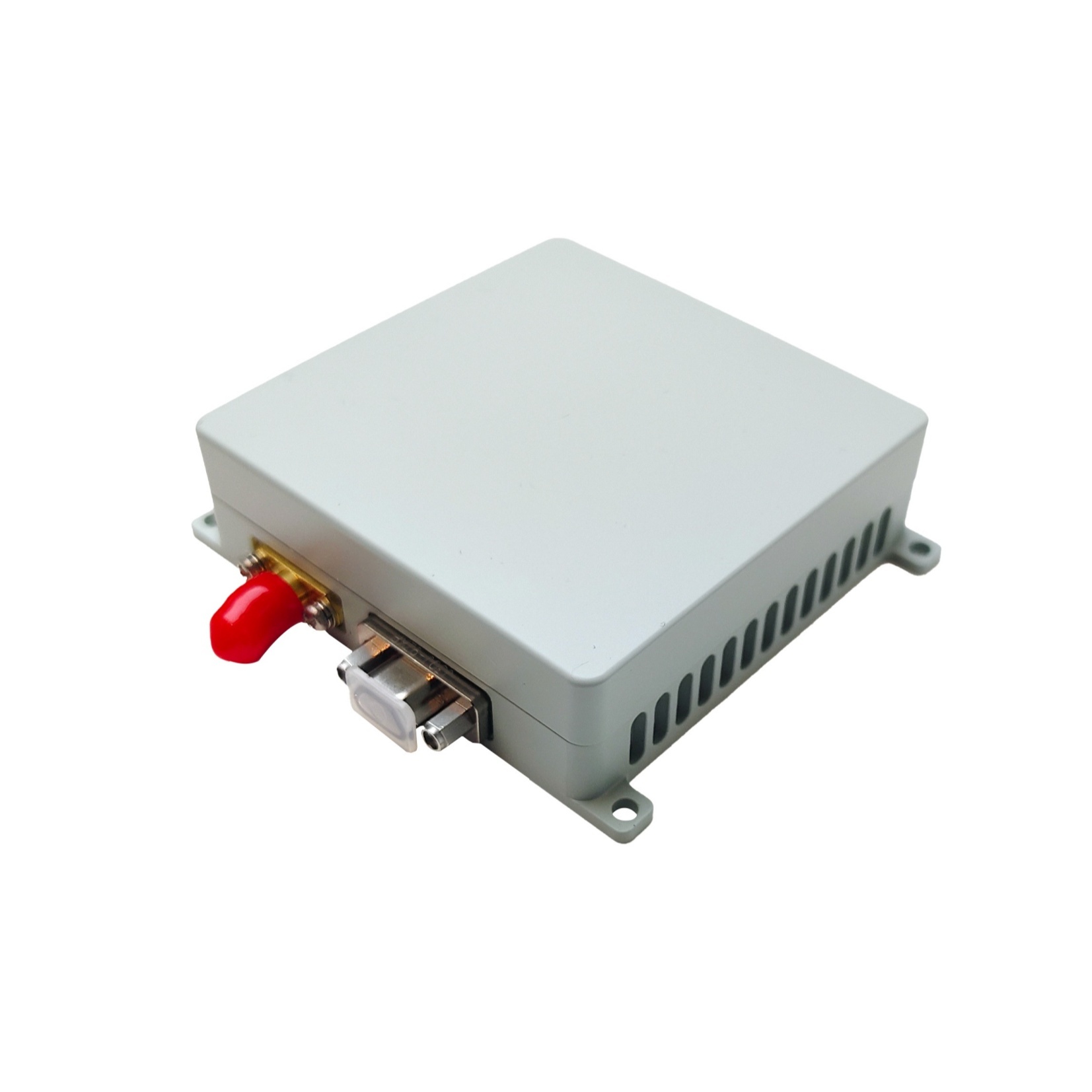

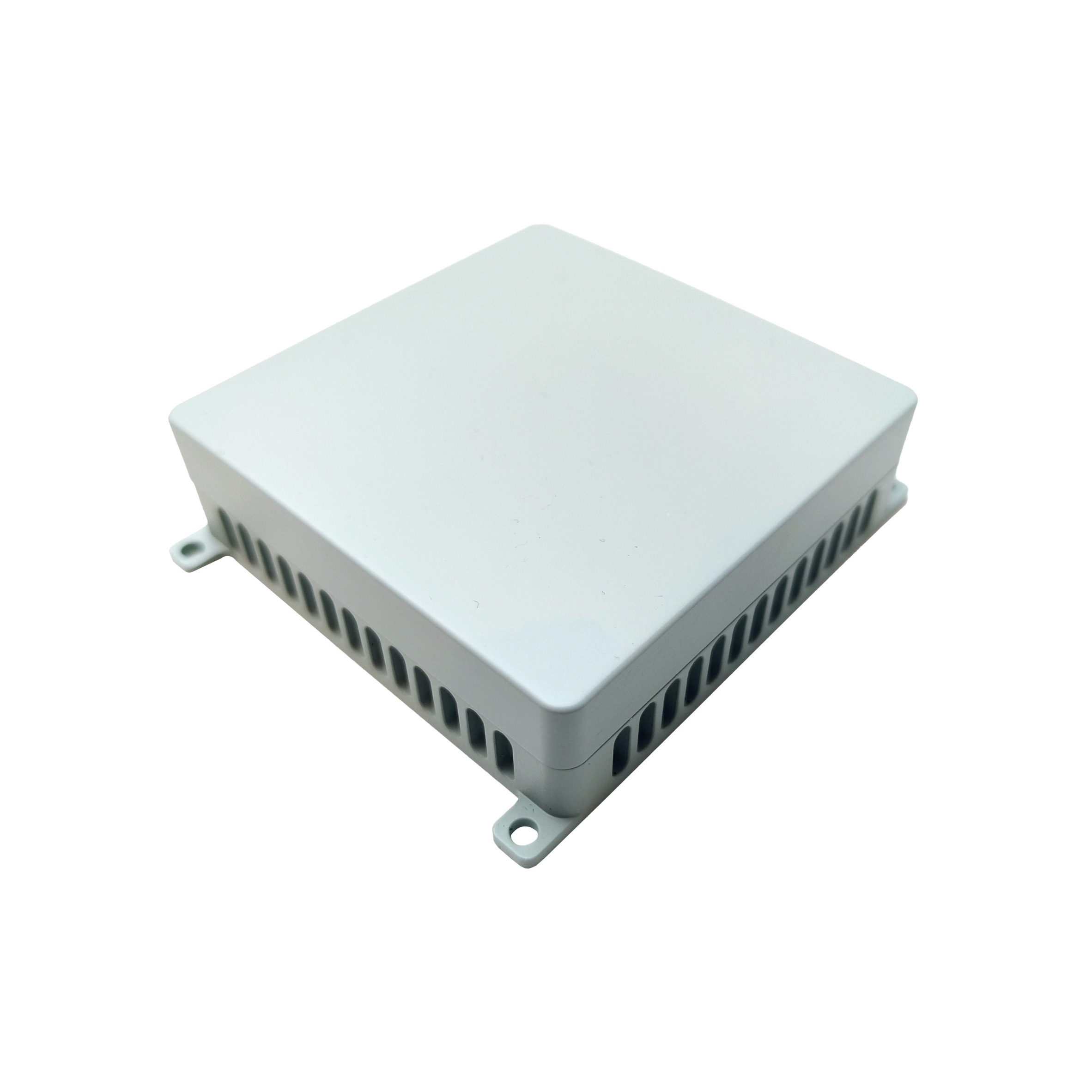

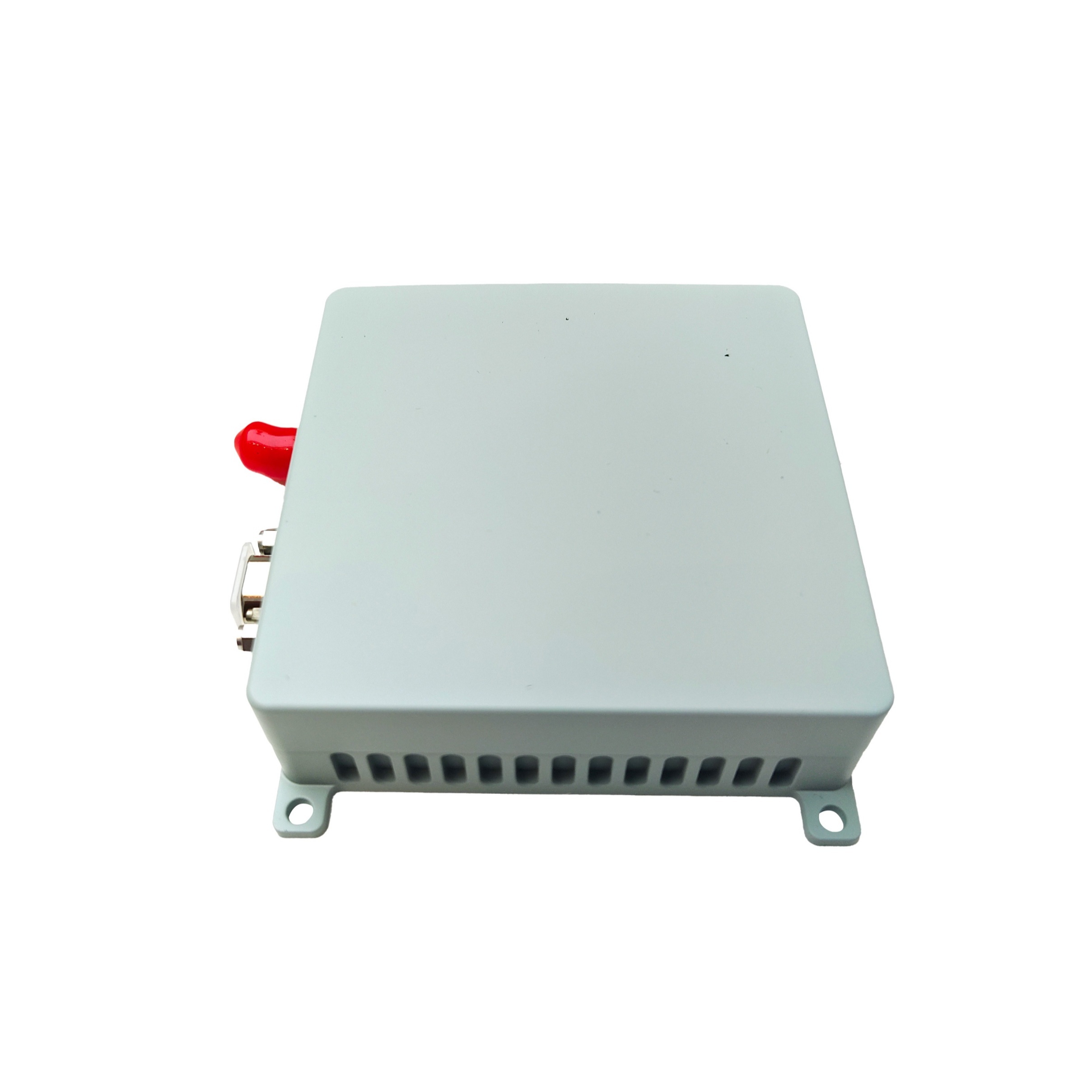

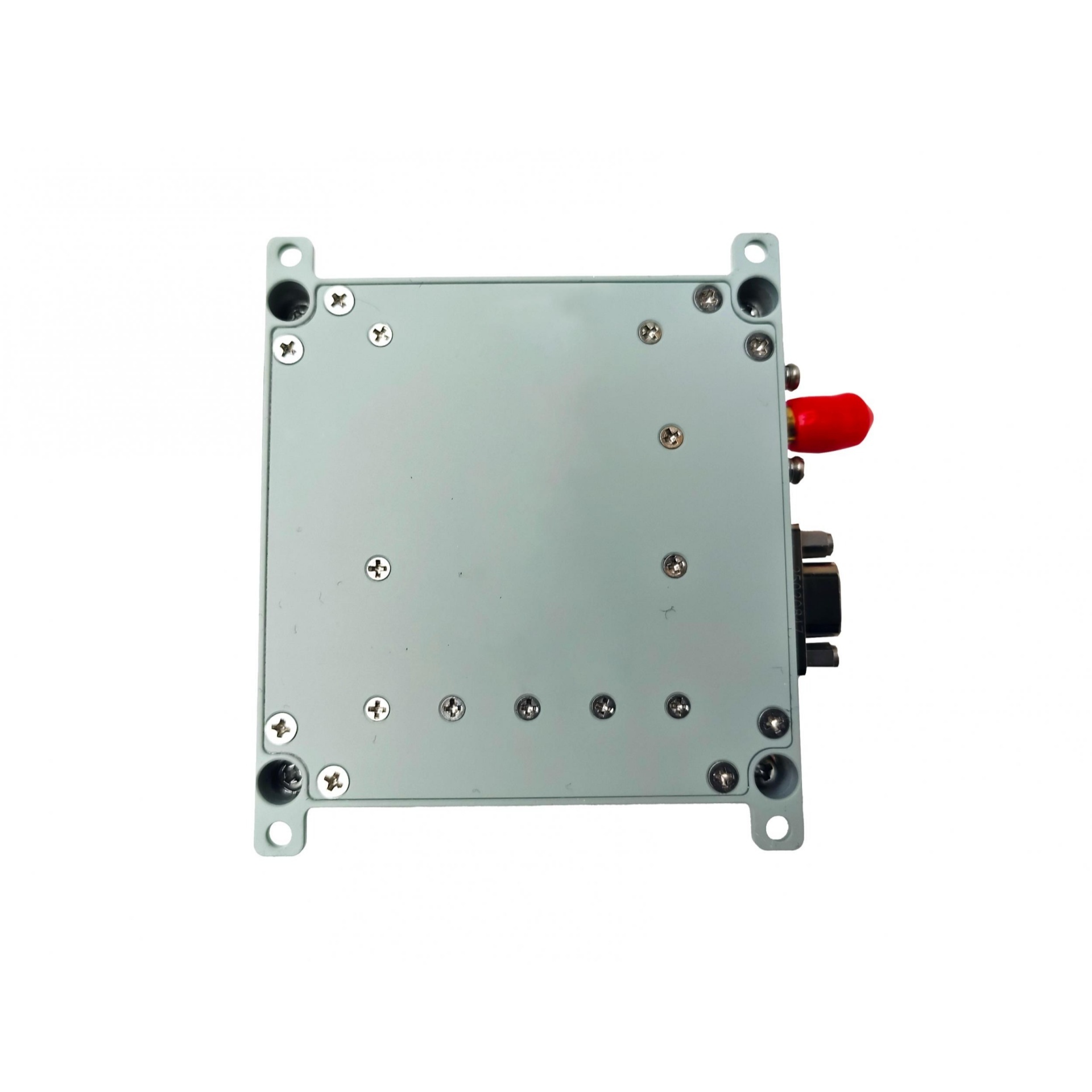

XH-S65-4CH-SNB 4-Element Ultra-compact Anti-jamming Terminal | 65mm Aperture, BDS/GPS/GALILEO Tri-band, All-in-One GNSS for Small Drones

Product Overview

Key Advantages

• Tri-band 4-element Strong Anti-jamming
  Supports three mainstream GNSS frequency bands: BDS B1, GPS L1 and GALILEO E1. Single-tone interference suppression reaches ≥95dBc, dual-tone suppression ≥85dBc, and three-tone suppression ≥80dBc, effectively suppressing broadband interference signals and ensuring continuous and stable navigation signals for small platforms.
• Adaptable to All Interference Types
  It effectively copes with various electromagnetic interference forms including band-limited Gaussian white noise interference, spread spectrum matched filter interference, pulse interference, sweep interference and mixed interference, fully covering the interference environments in common operation scenarios of small and medium drones and ensuring positioning stability.
• Full Airspace Coverage Protection
  The anti-jamming airspace covers the full 0°~360° azimuth range and -90°~90° pitch range, providing three-dimensional full-dimensional interference protection without azimuth or pitch blind spots, suitable for full-attitude flight scenarios of drones.
• Ultra-compact & Extremely Lightweight
  With an extremely small 65mm aperture, the overall dimension is only 65×65×21mm and the weight is ≤130g. It barely occupies installation space and adds no extra flight load, perfectly fitting the compact structure of small and medium UAVs and micro unmanned equipment.
• Ultra-low Power & Cost-effective
  Operating power consumption is ≤6W at room temperature. The ultra-low energy design greatly reduces the power supply pressure of small unmanned platforms and effectively extends battery life. The standardized integrated solution has outstanding cost advantages and is suitable for mass deployment on various small and medium unmanned devices.

Detailed Technical Specifications

Applications
