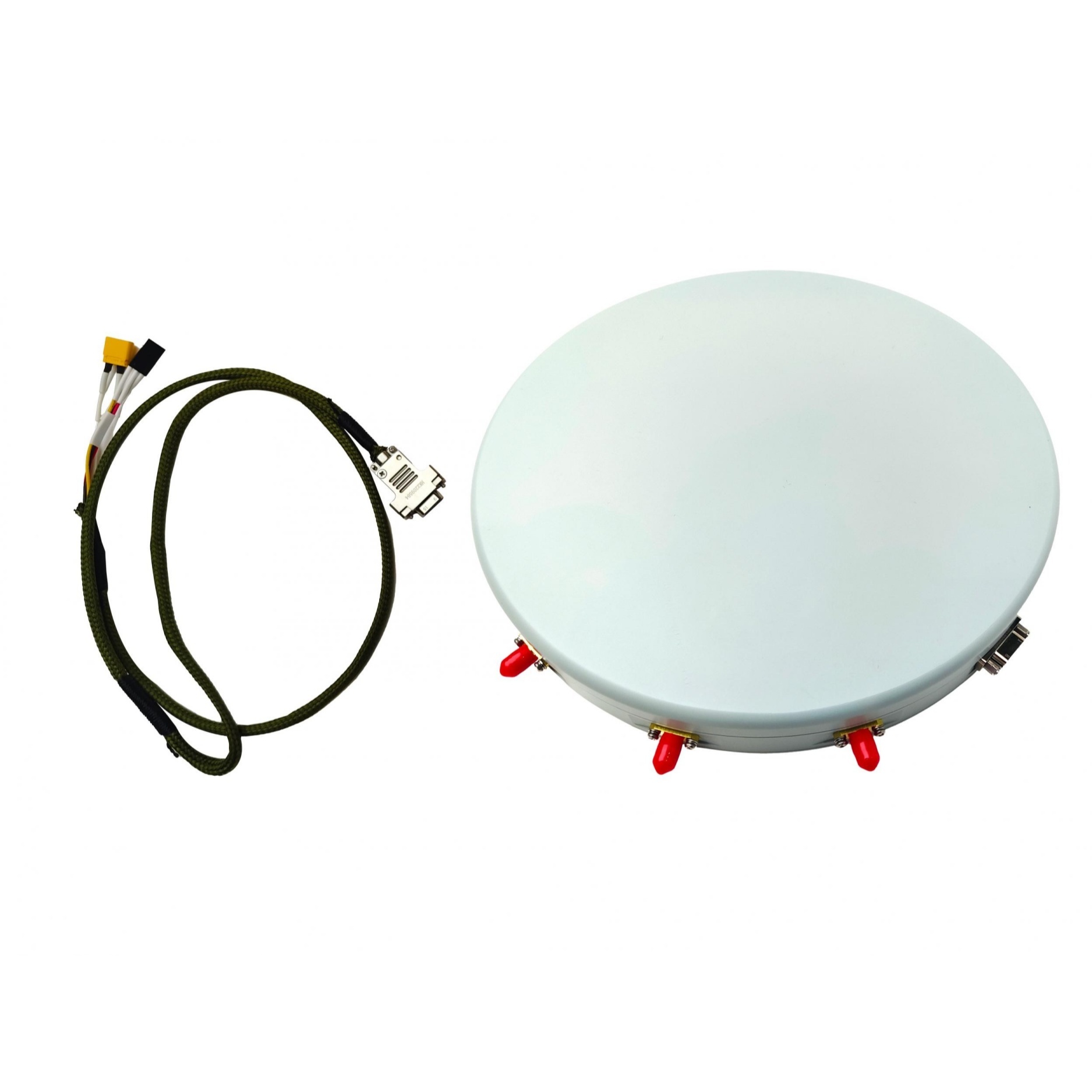

XH2504-3T7A21C-WG-DT Mini 7-Element Multi-system GNSS Anti-jamming All-in-One | BDS/GPS/GLONASS/GALILEO, Anti-jamming Terminal for Drones

Product Overview

Key Advantages

• Four-system Broadband Anti-jamming Performance
  Supports signal reception of BDS, GPS, GLONASS and GALILEO, covering mainstream global GNSS frequency bands. Single-tone interference suppression reaches ≥110dBc, 3-tone suppression ≥100dBc, and 6-tone suppression ≥90dBc, with up to 6 simultaneous jamming signals suppression. The broadband anti-jamming capability adapts to complex electromagnetic scenarios.
• Adaptable to All Interference Types
  It effectively resists various electromagnetic interference forms including band-limited Gaussian white noise interference, spread spectrum matched filter interference, pulse interference, sweep interference and mixed interference, fully covering common unintentional and malicious interference scenarios to ensure uninterrupted navigation signals.
• Full Airspace Coverage Protection
  The anti-jamming airspace covers the full 0°~360° azimuth range and -90°~90° pitch range, realizing three-dimensional full-dimensional interference protection without azimuth or pitch blind spots, suitable for full-attitude flight scenarios of drones.
• Highly Integrated All-in-one Design

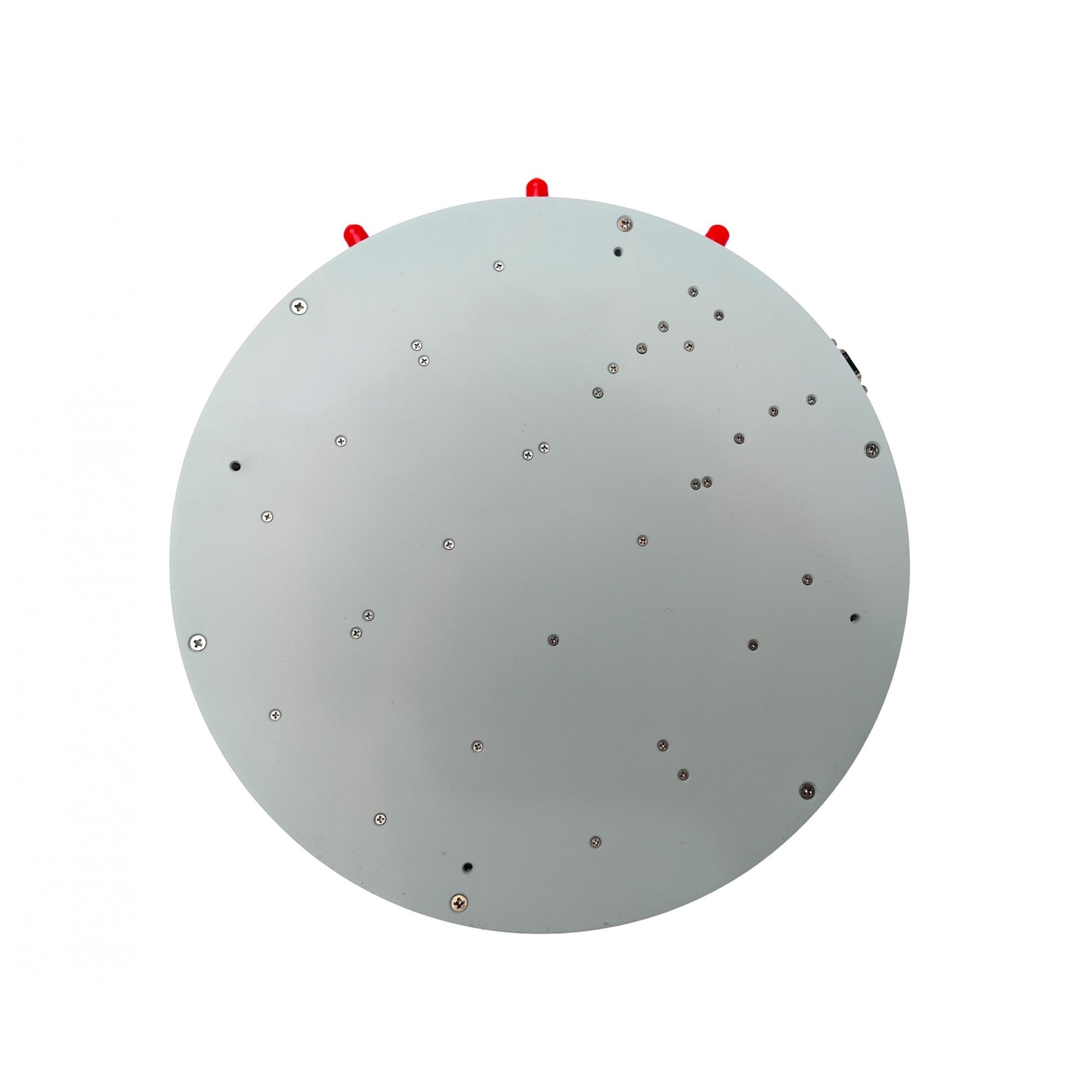

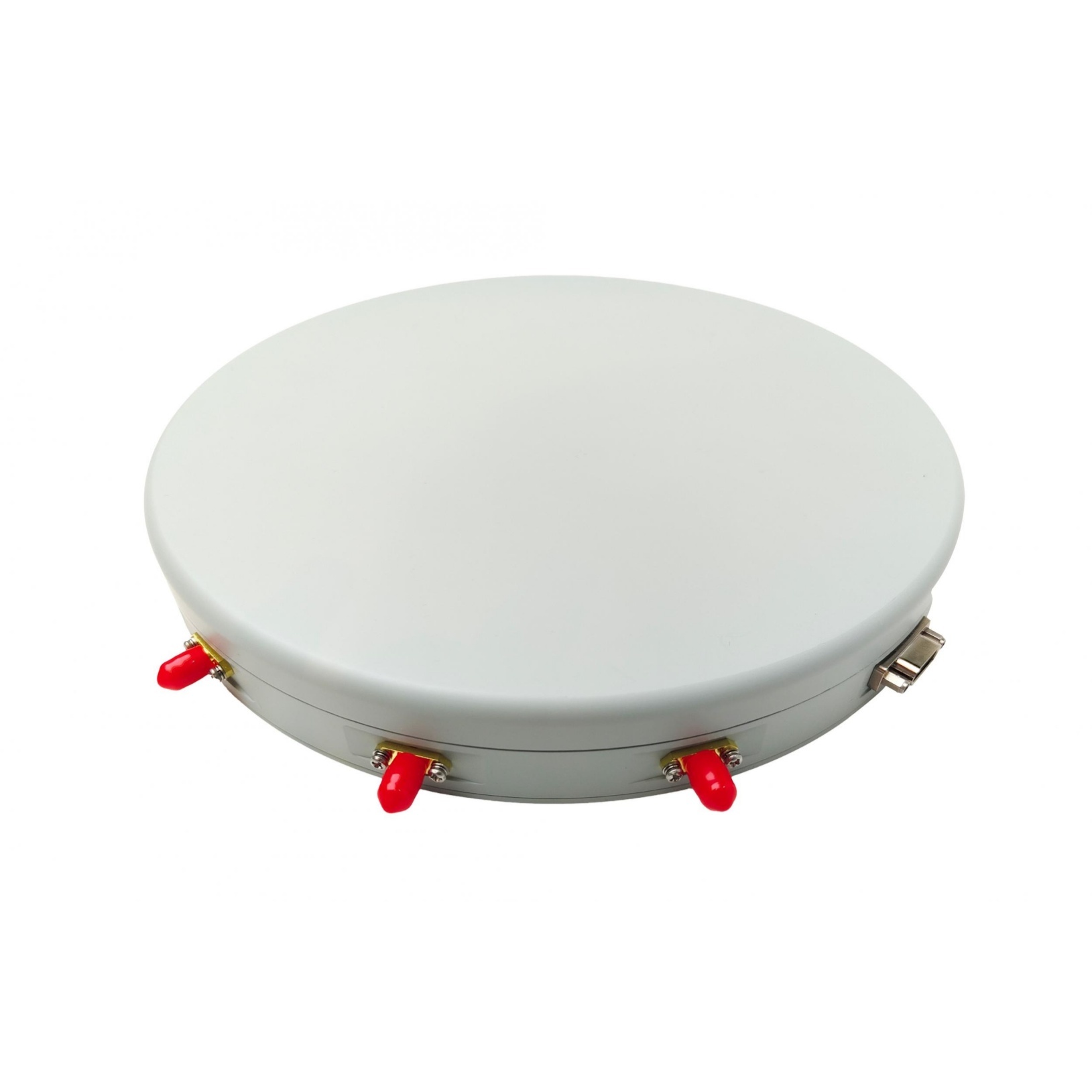

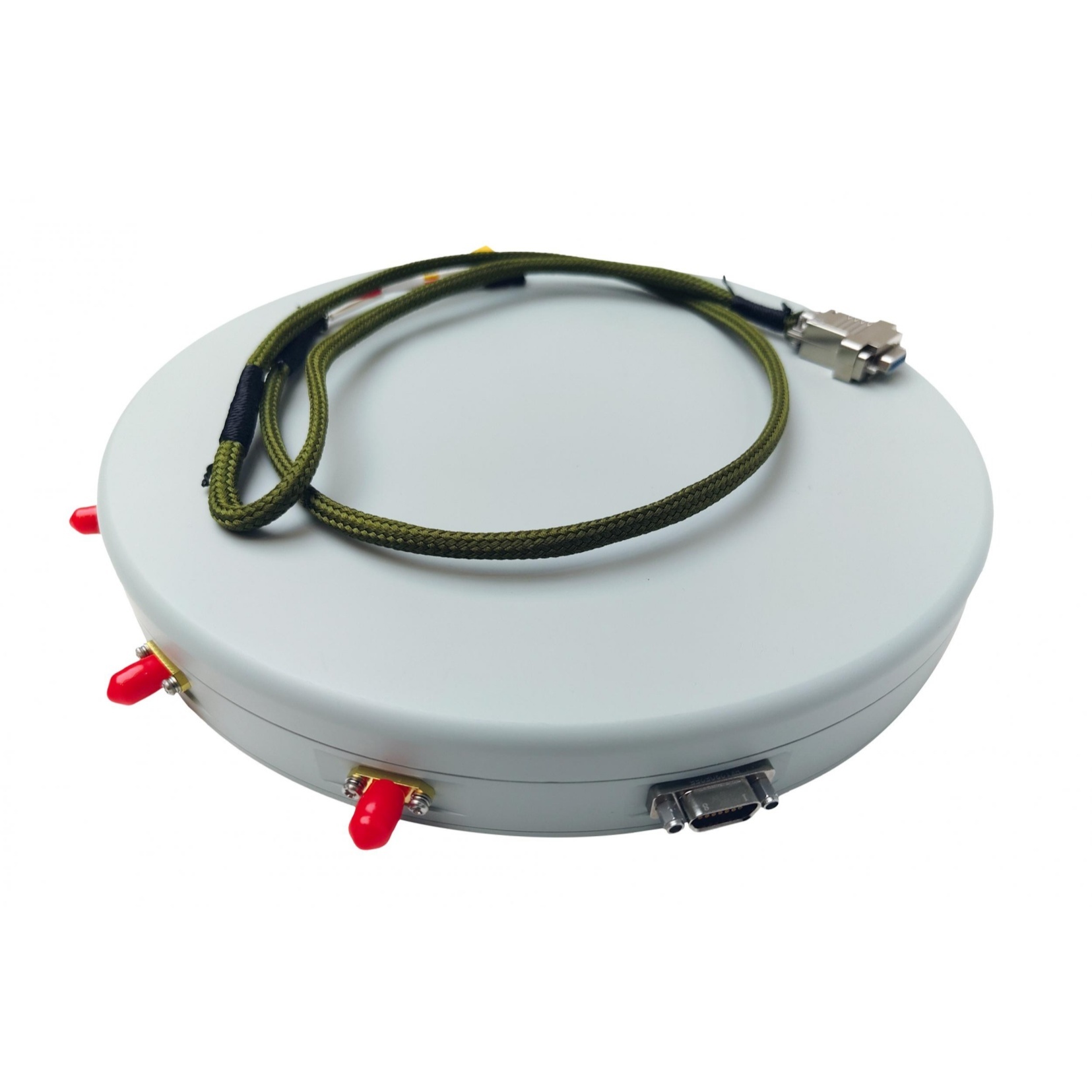

  Built-in integrated antenna array, anti-jamming processing module and satellite navigation receiver, the all-in-one architecture eliminates the need for additional peripherals and reduces system complexity. The circular lightweight structure measures only Φ220×29.5mm and weighs ≤1200g, easy to install and suitable for the compact installation space of drones and small platforms.
• Low Power & Cost-effective
  Operating power consumption is ≤25W, and the low-energy design adapts to the power supply capacity of small platforms. The standardized integrated solution reduces custom development and deployment costs, and provides outstanding cost advantages while ensuring high-performance anti-jamming, suitable for mass deployment.

Detailed Technical Specifications
