This is an X-band 2D active phased array antenna operating at 9.2GHz~10GHz, supporting ±45° two-dimensional electronic scanning. It adopts an integrated design with antenna array, beam control power board and thermal components. Featuring transmit power spatial combining and receive low-noise amplification, it delivers EIRP ≥92dBm and overall receive gain ≥58dB. It supports multiple operation modes, status monitoring and temperature/current reporting, with IP67 dust and water protection for the whole unit and IP68 for cooling fans. Highly integrated, lightweight and highly reliable, it is widely applicable to counter-UAV radars and various platforms.

GET A QUOTE

Description

Product Overview

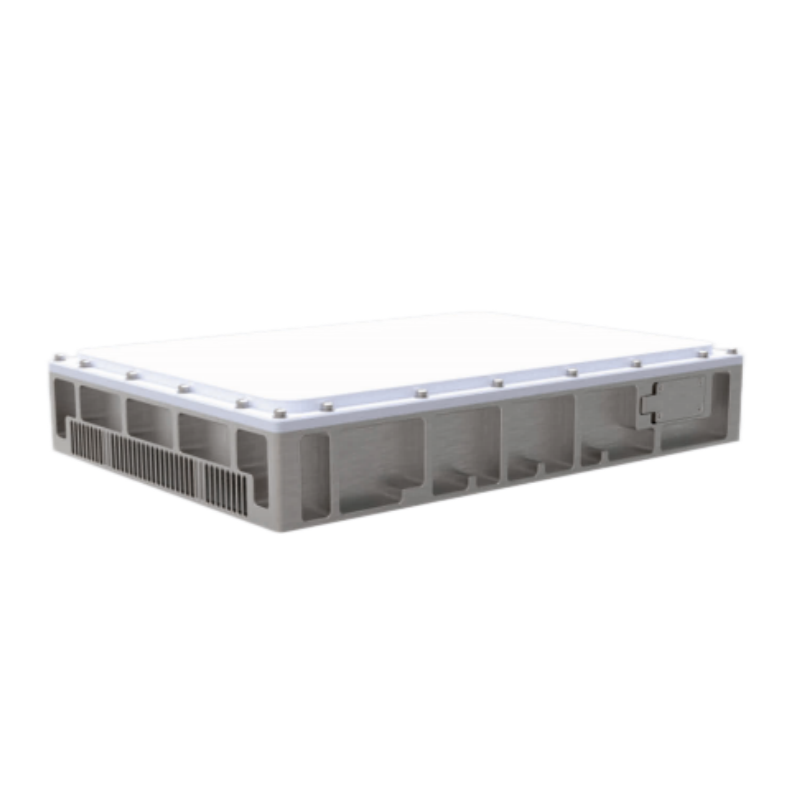

The X-1024 X-band 2D phased array antenna is a high-performance active phased array antenna developed for counter-UAV radar scenarios. It adopts an integrated architecture including radome, antenna array assembly, beam control power board and thermal dissipation components. Operating in the 9.2GHz~10GHz X-band, it supports two-dimensional electronic scanning with a coverage of ±45°, enabling fast beam switching and rapid transmit-receive pulse switching. Integrating transmit power amplification & spatial power combining, receive low-noise amplification and status monitoring, it features high integration, light weight, high performance and high reliability, and can be directly adapted to various counter-UAV radars and detection platforms.

Core Functions & Features

Flexible Multi-mode Switching
Supports free switching among three operation modes: continuous receive mode, pulsed transmit mode, and transmit-receive pulse switching mode, adapting to the operation requirements of different radar detection scenarios.
High-performance Transmit & Receive Capability
The transmit chain achieves power amplification and spatial power combining with EIRP ≥92dBm. The receive chain is equipped with low-noise amplification, delivering an overall receive gain of ≥58dB and G/T ≥6.5dB/K. Controllable receive and transmit sidelobe levels with adjustable weighting depth ensure the sensitivity and anti-interference performance of radar detection.
Fast Beam & T/R Switching
Two-dimensional electronic scanning covers ±45° with a scan loss ≤3dB. Beam switching time is ≤100μs (including data delivery time), and transmit-receive pulse switching time is ≤150ns, enabling fast beam agility and high-speed T/R state switching for high dynamic detection scenarios.
Full Status Monitoring & Intelligent Thermal Control
Supports real-time operating status reporting and online temperature & current monitoring for system operation and maintenance. The cooling fan features IP68 dust and water protection, with adaptive fan speed control to balance cooling efficiency and power consumption.
High Protection & High Reliability
Combined with the rear compartment, the whole unit achieves IP67 dust and water protection, suitable for harsh outdoor environments. The highly integrated and lightweight design weighs ≤14kg with a dimension of only 600mm×600mm×65mm, facilitating installation and deployment on various platforms.

Detailed Specifications

Parameter	Specification	Note
Operating Frequency Band	9.2GHz~10GHz	Customizable frequency available
Antenna Type	Active phased array antenna	-
Scanning Mode	2D scanning	±45° coverage
Polarization	Vertical polarization	Customizable
EIRP	≥92dBm	-
Overall Receive Gain	≥58dB	Antenna gain + active gain
G/T	≥6.5dB/K	-
Receive Sidelobe Level	≤-22dB	Adjustable weighting depth
Transmit Sidelobe Level	≤-12dB	Weighted
Scan Loss	≤3dB	At ±45° scanning
Beam Switching Time	≤100μs	Including data delivery time
T/R Pulse Switching Time	≤150ns	Typical value
Overall Power Consumption	≤1000W	At 20% transmit duty cycle
Antenna Weight	≤14kg	-
Overall Dimension	600mm × 600mm × 65mm	-
Protection Grade	IP67 (whole unit), IP68 (cooling fan)	Achieved with rear compartment

Applications

Widely applicable to counter-UAV radars, low-altitude surveillance radars, short-range defense radars, X-band integrated communication and detection platforms, etc. It adapts to various deployment forms such as fixed outdoor stations, vehicle-mounted and ship-borne systems.
