The XH‑256 is a compact X-band 2D active phased array antenna with fully integrated design, featuring ±45° 2D electronic scanning, nanosecond-level beam switching and stable RF performance. Weighing only 3.5kg with low power consumption and IP67 protection (with rear housing), it is ideal for portable deployment, compact anti-UAV radars and mobile low-altitude security platforms. Custom frequency and polarization are available.

GET A QUOTE

Description

Product Overview

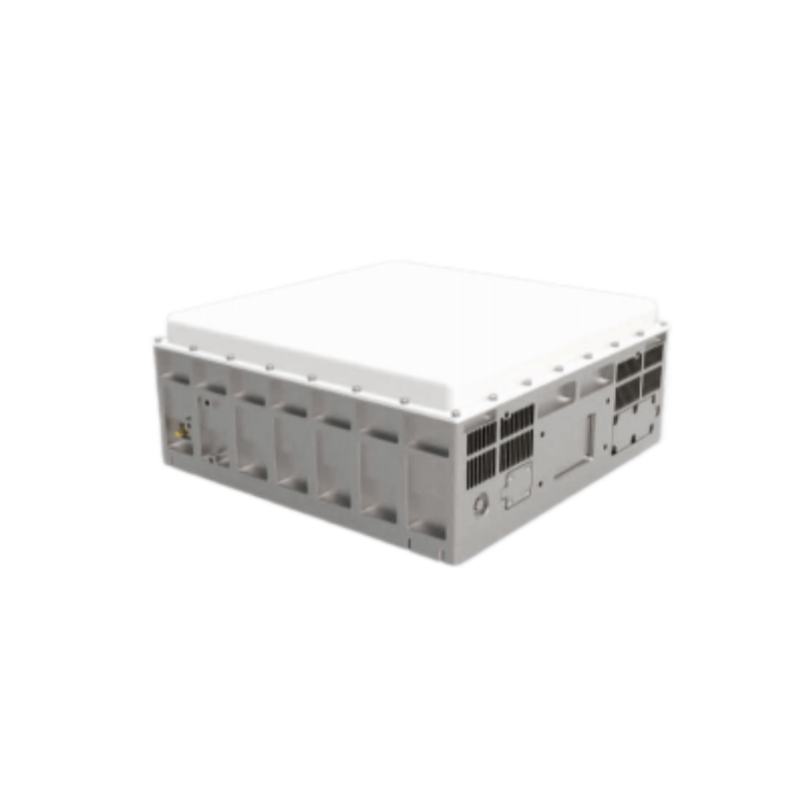

The XH‑256 X-Band 2D Active Phased Array Antenna is a highly integrated radar antenna featuring compact size and lightweight design. It integrates antenna array, beam steering power board and thermal dissipation module into one unit, delivering inertia-free 2D electronic scanning in both azimuth and elevation. It provides wide beam coverage without mechanical rotation, with fast response and high reliability.

With a compact 315mm square low-profile structure, weight under 3.5kg and power consumption as low as 235W, it significantly reduces deployment threshold and system supporting requirements. It can be flexibly deployed in portable stations, vehicle-mounted systems and small platforms, and is widely used in anti-UAV detection radars, mobile low-altitude surveillance and temporary perimeter security.

Key Advantages

Ultra-Light & Compact for Flexible Deployment
Dimension 315mm×315mm×65mm, weight ≤3.5kg. The ultra-thin compact structure greatly reduces installation space requirements, and is compatible with portable setup, vehicle-mounted mobility and small platform integration, improving installation and transportation efficiency.
2D Active Electronic Scanning with Ultra-Fast Response
Covers ±45° in both azimuth and elevation. Beam switching time ≤70μs, typical TX-RX pulse switching time only 150ns, enabling rapid acquisition and tracking of low-altitude slow targets, supporting multi-target scenarios. No mechanical wear ensures longer service life.
Stable RF Performance with Controllable Sidelobes
EIRP ≥80dBm, total receive gain ≥55dB, G/T ≥0.5dB/K. Receive sidelobe level ≤-22dB, transmit sidelobe level ≤-12dB, with adjustable weighting depth. It delivers good detection accuracy and anti-interference capability to meet the performance requirements of compact radar systems.
Industrial Protection & Smart Thermal Management
IP67 ingress protection for the full unit when paired with rear housing; cooling fan rated IP68. Built-in working status reporting, real-time temperature and current monitoring with adaptive fan speed control, adapting to harsh outdoor environments and ensuring long-term stable operation.
Low Power Consumption & Multi-Mode Flexibility
Total power consumption ≤235W @ 20% transmit duty cycle, greatly reducing power supply requirements. Supports continuous receive, pulse transmit and TX-RX pulse switching modes, with integrated power amplification, spatial power combining and low-noise reception, flexibly compatible with radar systems of different architectures.

Technical Specifications

Item	Specification	Notes
Operating Frequency	9.2GHz-10GHz	Custom frequency available on request
Antenna Type	Active phased array, 2D scanning	±45° coverage
Polarization	Vertical	Customizable
EIRP	≥80dBm	-
Total Receive Gain	≥55dB	Antenna gain + active gain
G/T	≥0.5dB/K	Weighted
Receive Sidelobe Level	≤-22dB	Adjustable weighting depth
Transmit Sidelobe Level	≤-12dB	-
Scan Loss	≤3dB	At ±45° scanning angle
Beam Switching Time	≤70μs	Including data download time
TX-RX Pulse Switching	≤150ns	Typical value
Power Consumption	≤235W	@ 20% transmit duty cycle
Weight	≤3.5kg	-
Dimensions	315mm×315mm×65mm	-
Ingress Protection	Main unit IP67; Cooling fan IP68	Full unit protection with rear housing

Applications

Compact anti-UAV detection radar systems
Portable mobile low-altitude security systems
Vehicle-mounted / shipborne mobile surveillance
Temporary low-altitude security for critical sites
Compact counter-UAV system integration
Distributed low-altitude detection nodes
