XH-007Pro-8CH-DF-WG-DR 8-Channel GNSS Anti-Jamming Terminal | Direction Finding & Anti-Spoofing PNT Security Module for Drones & UGVs

【Product Overview】

The XH-007Pro-8CH-DF-WG-DR is a professional 8-channel GNSS anti-jamming terminal for drones, UGVs and autonomous platforms. It suppresses unintentional electromagnetic interference and defends against malicious spoofing attacks, ensuring reliable PNT (Positioning, Navigation, Timing) data security. Built-in direction finding function locates interference sources accurately, with compact size and low power for easy integration.

【Key Features】

• 8-channel processing: ≥95dBc single interference suppression, ≥85dBc for 3 simultaneous interferences
• 0~360° full azimuth direction finding, -90°~90° pitch coverage
• Dual protection: broadband interference suppression + anti-spoofing
• Wideband GNSS compatible, stable performance during dynamic motion

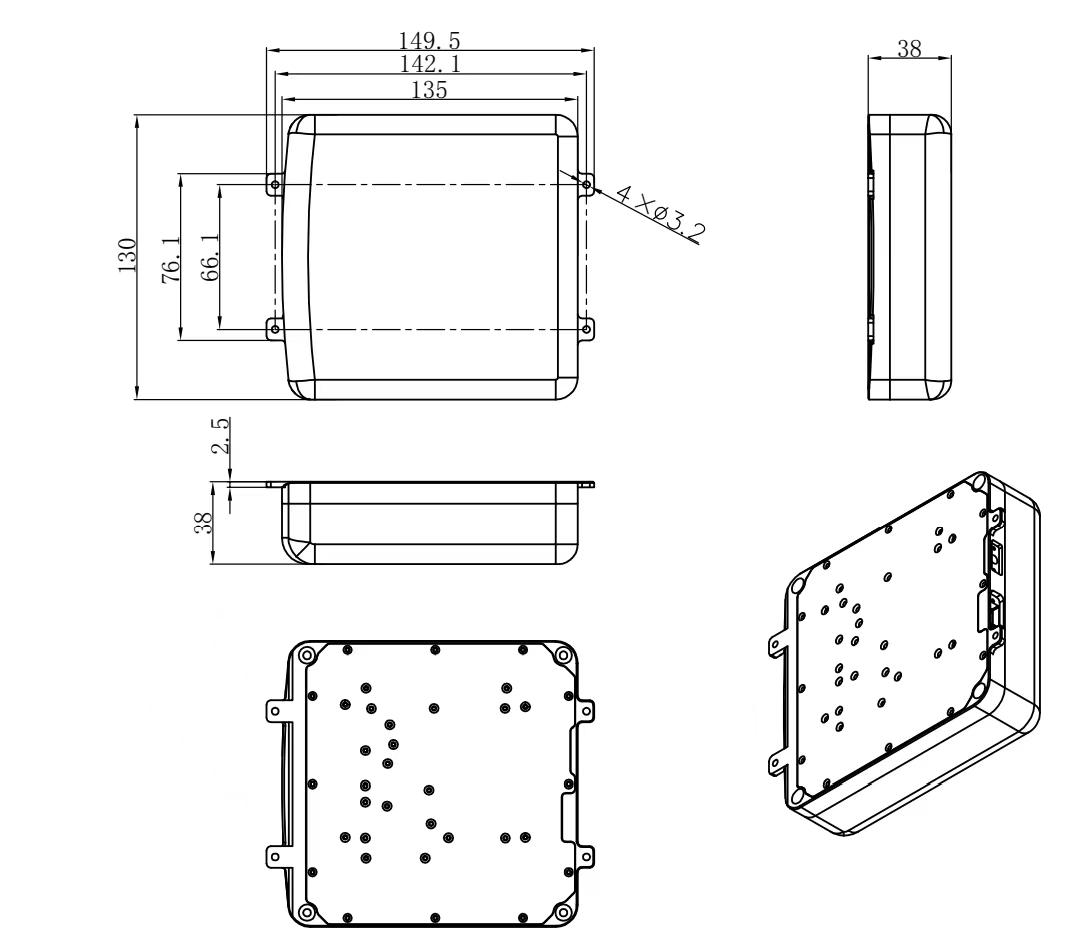

• Compact & lightweight: 130×135×38mm, ≤400g, ≤10W power consumption
• Standard 50Ω RF output, plug-and-play with mainstream GNSS receivers

【Technical Specifications】

Anti-Jamming Performance

Physical & RF Specs

【Applications】

• Surveying, inspection and industrial drones
• UGVs and autonomous mobile robots
• Navigation systems in complex electromagnetic environments
• GNSS receiver PNT security upgrade
• Anti-interference retrofit for unmanned platforms
