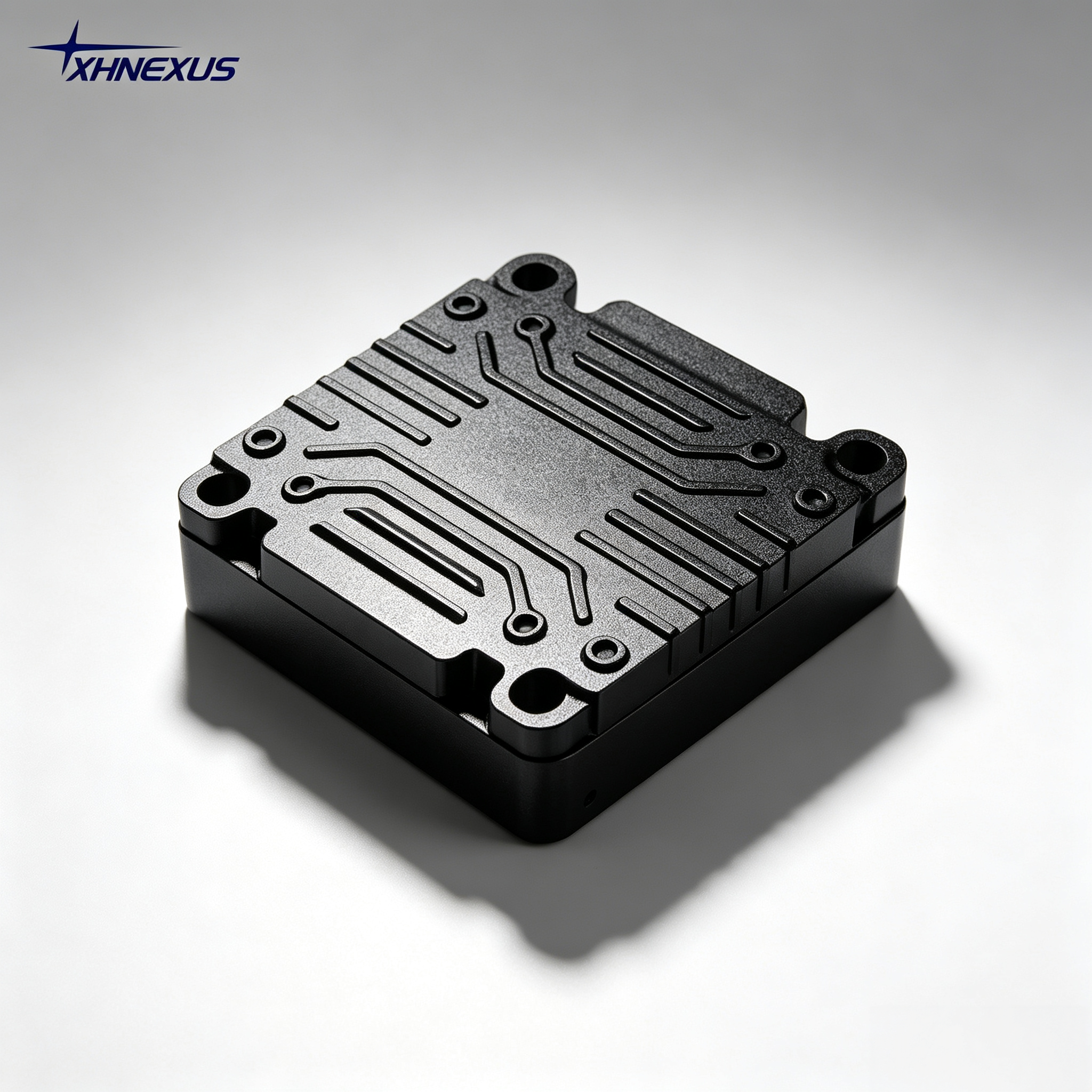

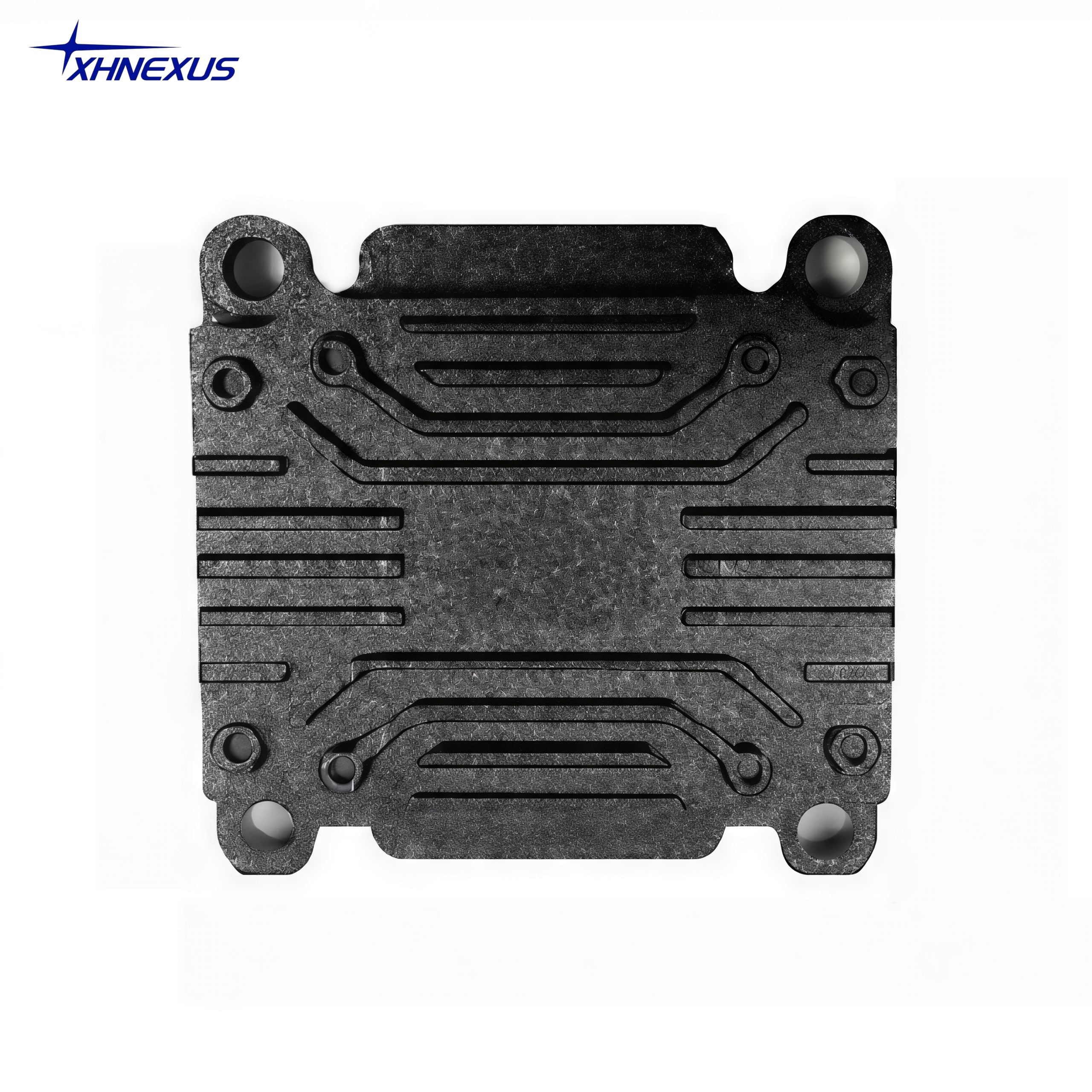

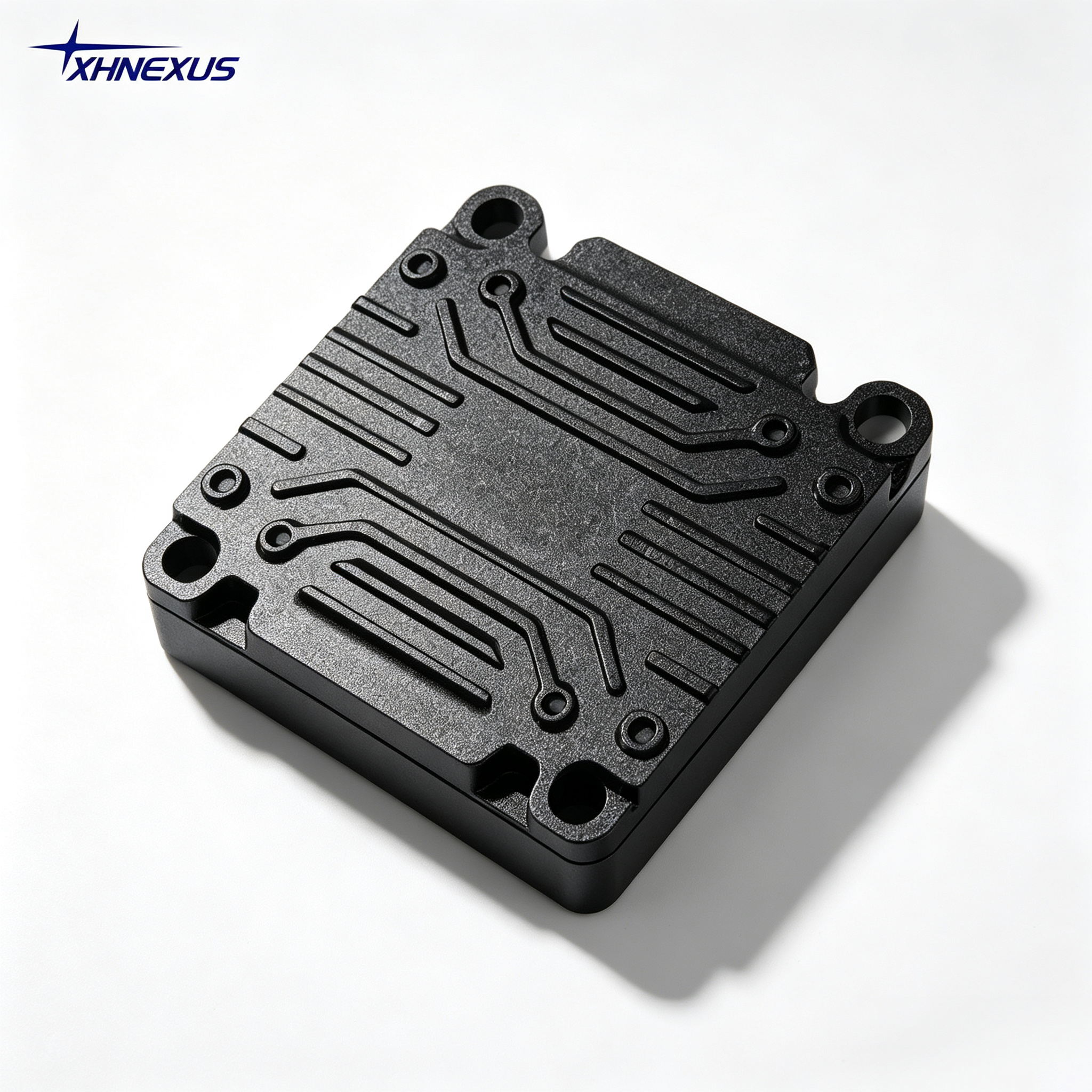

XH-1325 is a lightweight 1.2G analog VTX module with switchable power levels up to 2W, supporting max 15KM LOS transmission. 80 channels available, NTSC/PAL compatible, 7-36V wide input with 12V/5V auxiliary output. Only 16.6g ultra-light body, perfect for compact FPV drones and small lightweight UAV platforms.
| Item | Specification |
|---|---|
| Model | XH-1325 |
| Frequency | 1.080-1.420GHz (1.2G FPV band) |
| Transmit Power | PIT / 25mW / 1500mW / 2500mW (2W) |
| Max Range | 15KM (ideal LOS) |
| Channels | 80CH |
| Video Format | NTSC / PAL |
| Input Voltage | 7-36V DC |
| Aux Output | 12V/1.2A, 5V/500MA |
| Antenna Port | MMCX |
| Crystal | IRC |

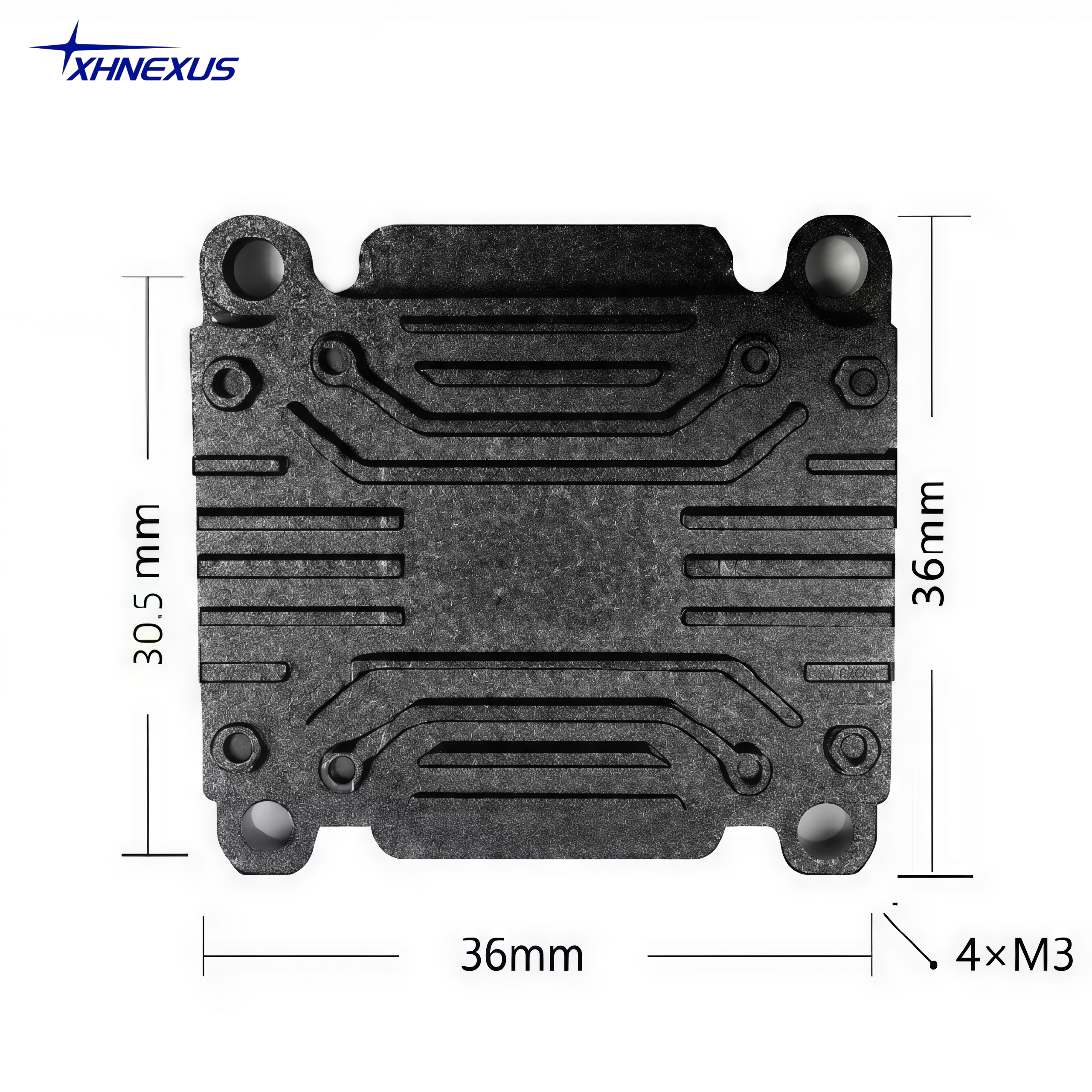

| Dimensions | 36mm×36mm×8mm |
| Mounting | 30.5*30.5mm M3 |
| Weight | 16.6g |
Compact FPV racing drones, small UAV video links, micro RC aircraft, lightweight wireless video transmission
