XH-2515 is a lightweight 5.8G analog VTX module with max 2.5W output, delivering up to 12KM ideal LOS transmission. It features 6 switchable power levels, 80 channels, NTSC/PAL compatibility, 7-36V wide input, 12V/1.2A & 5V/500MA auxiliary output, MMCX antenna port, and 30.5*30.5mm M3 standard mounting holes, compatible with mainstream FPV drone frames.
| Item | Specification |
|---|---|
| Model | XH-2515 |
| Frequency | 4.990-5.945GHz (5.8G FPV band) |
| Transmit Power | PIT / 25mW / 400mW / 800mW / 1500mW / 2500mW (2.5W) |
| Max Range | 12KM (ideal LOS) |
| Channels | 80CH |
| Video Format | NTSC / PAL |
| Input Voltage | 7-36V DC |
| Aux Output | 12V/1.2A, 5V/500MA |
| Antenna Port | MMCX |
| Crystal | IRC |

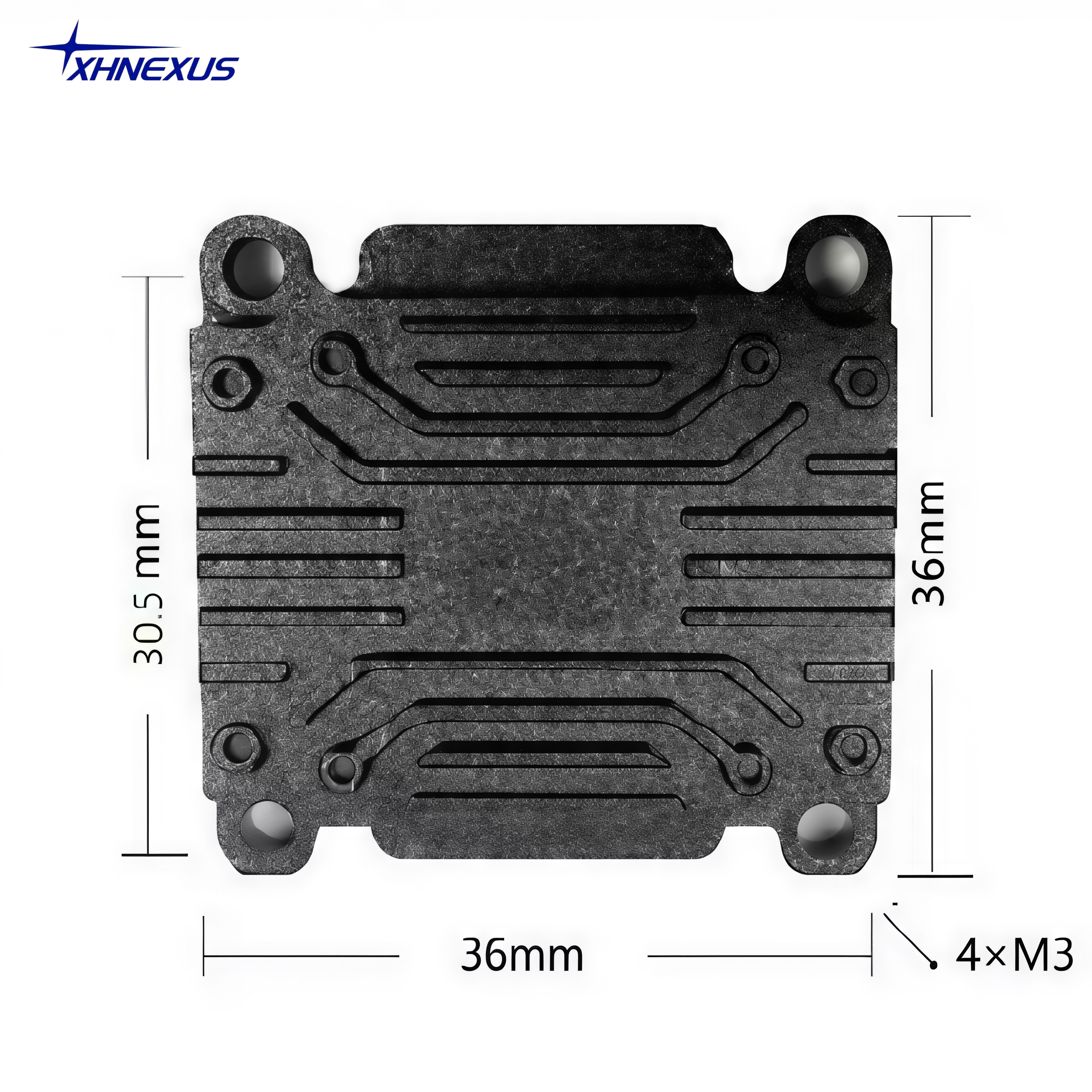

| Dimensions | 36mm×36mm×8mm |
| Mounting | 30.5*30.5mm M3 |
| Weight | 16.6g |
FPV racing drones, small UAV video links, RC aircraft, lightweight wireless video transmission
