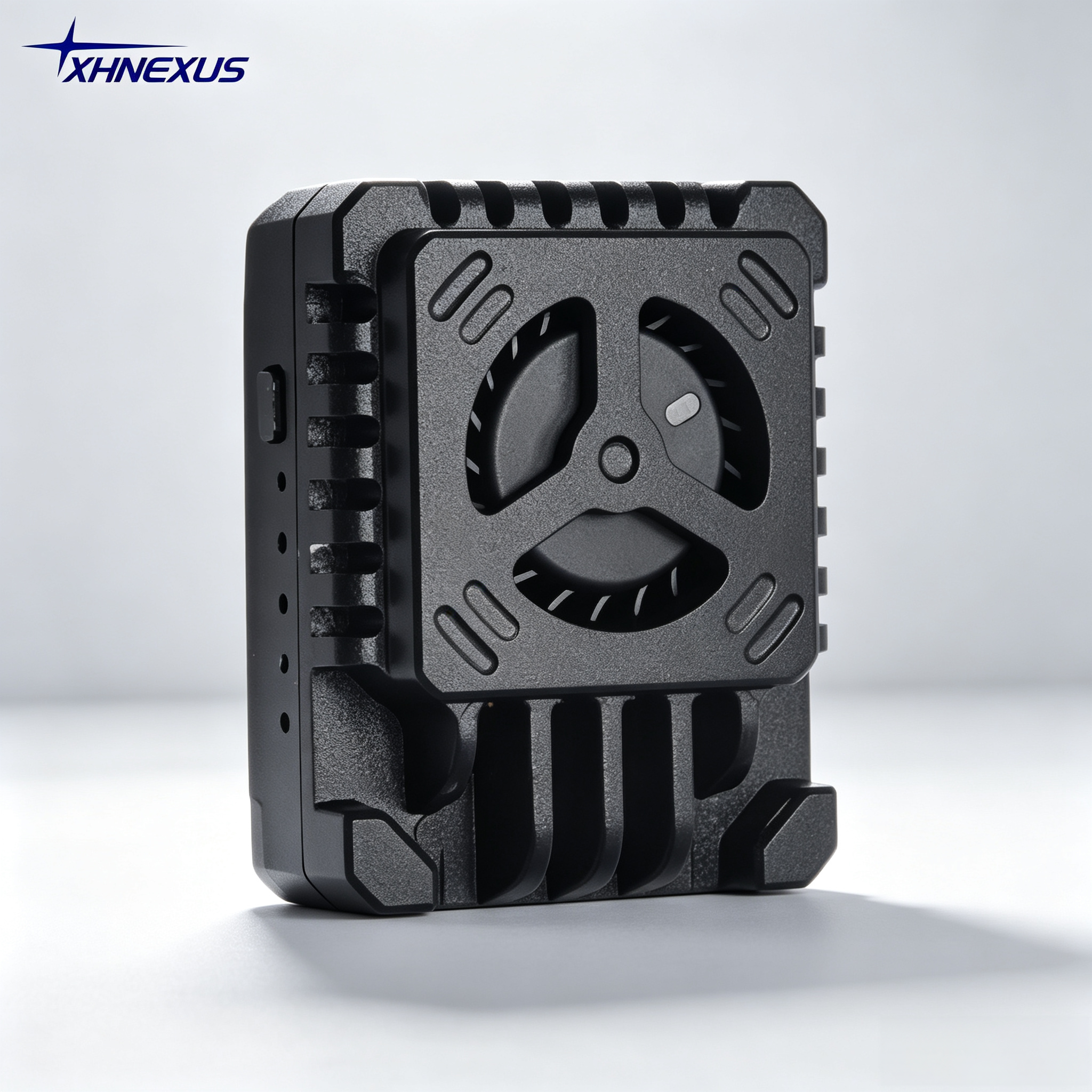

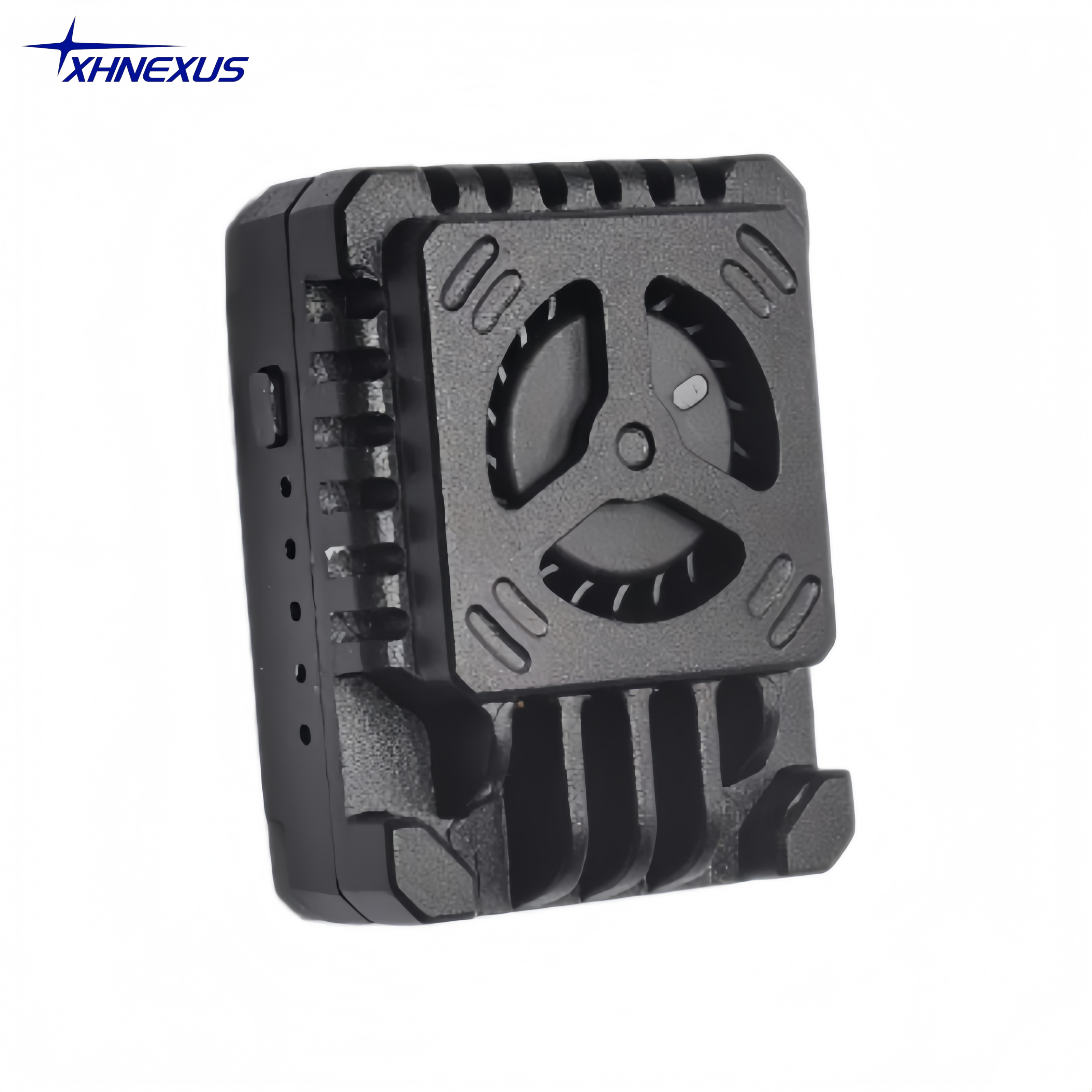

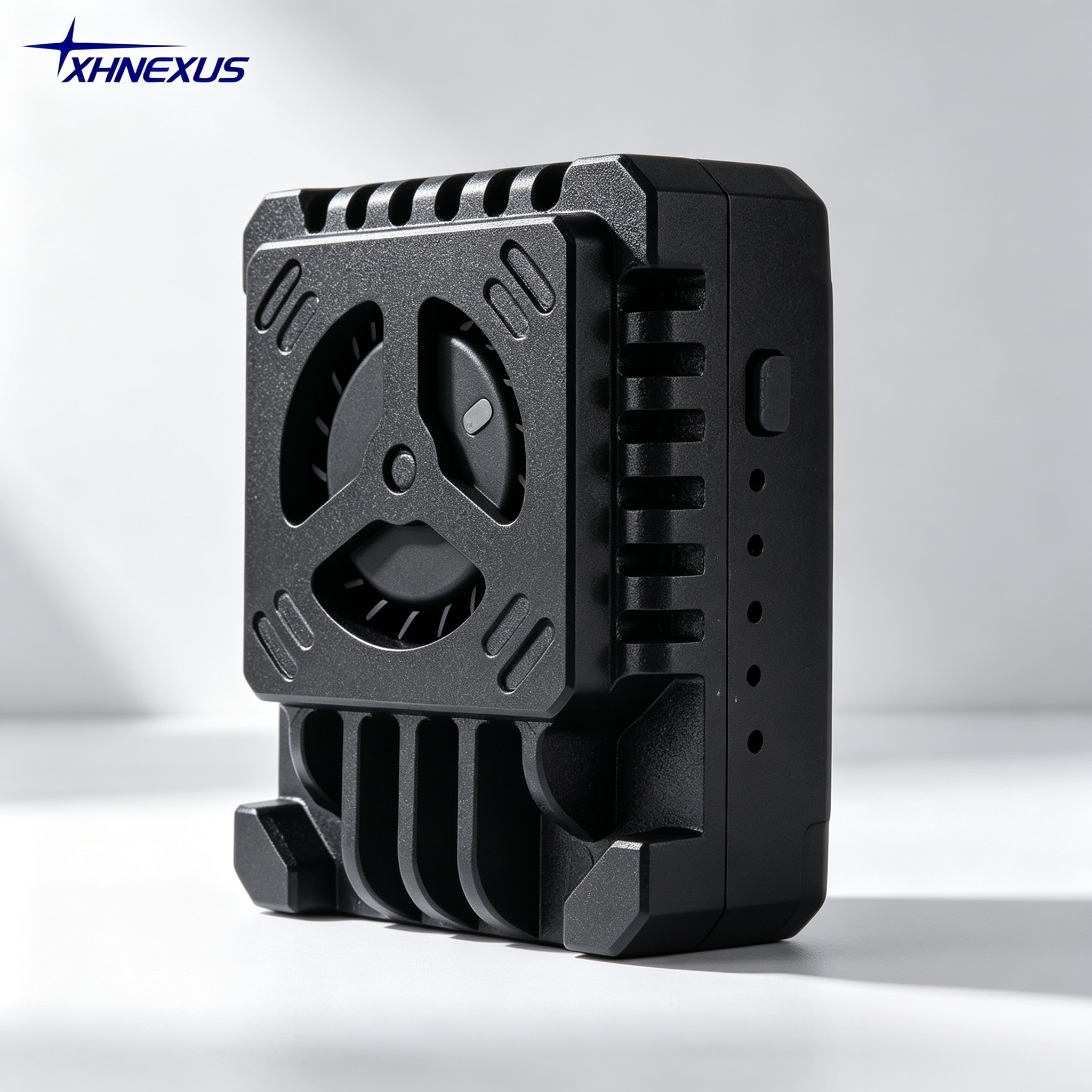

XH-2516 is a wide-band 5.8G analog VTX module with max 2.6W output, delivering up to 15KM ideal LOS transmission. It features 6 switchable power levels, 96 channels with wider frequency coverage, NTSC/PAL compatibility, 7-36V wide input, 12V/1.3A & 5V/500MA auxiliary output, MMCX antenna port, and 21.6g lightweight body, suitable for mid-short range FPV drones and multi-rotor UAV platforms.
| Item | Specification |
|---|---|
| Model | XH-2516 |
| Frequency | 4.884-6.055GHz (5.8G FPV wide band) |
| Transmit Power | PIT / 25mW / 400mW / 800mW / 1500mW / 2600mW (2.6W) |
| Max Range | 15KM (ideal LOS) |
| Channels | 96CH |
| Video Format | NTSC / PAL |
| Input Voltage | 7-36V DC |
| Aux Output | 12V/1.3A, 5V/500MA |
| Antenna Port | MMCX |
| Crystal | IRC |

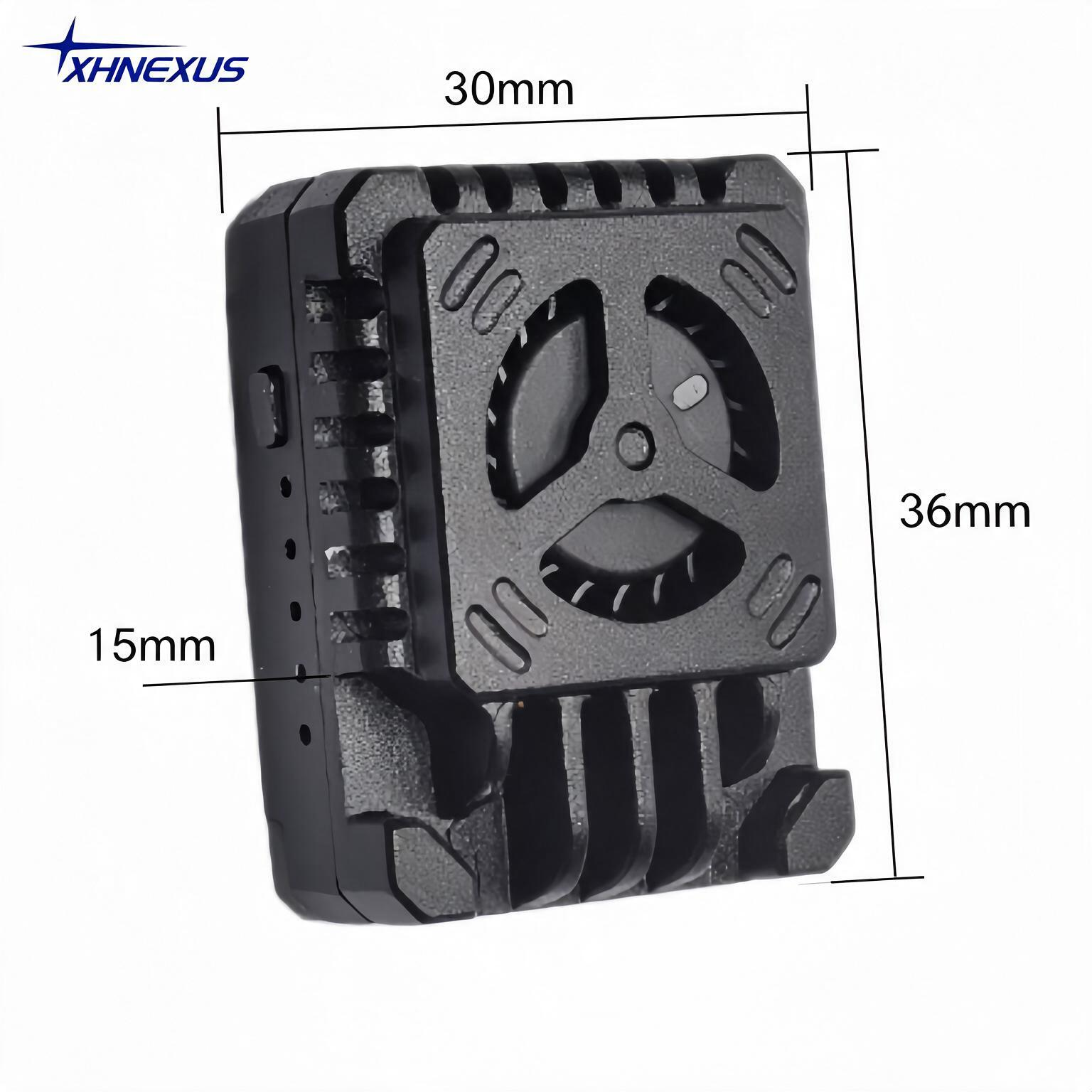

| Dimensions | 30mm×36mm×15mm |
| Mounting | 20*20mm M2 |
| Weight | 21.6g |
Mid-short range FPV racing drones, multi-rotor UAV video links, RC aircraft, medium-range wireless video transmission
