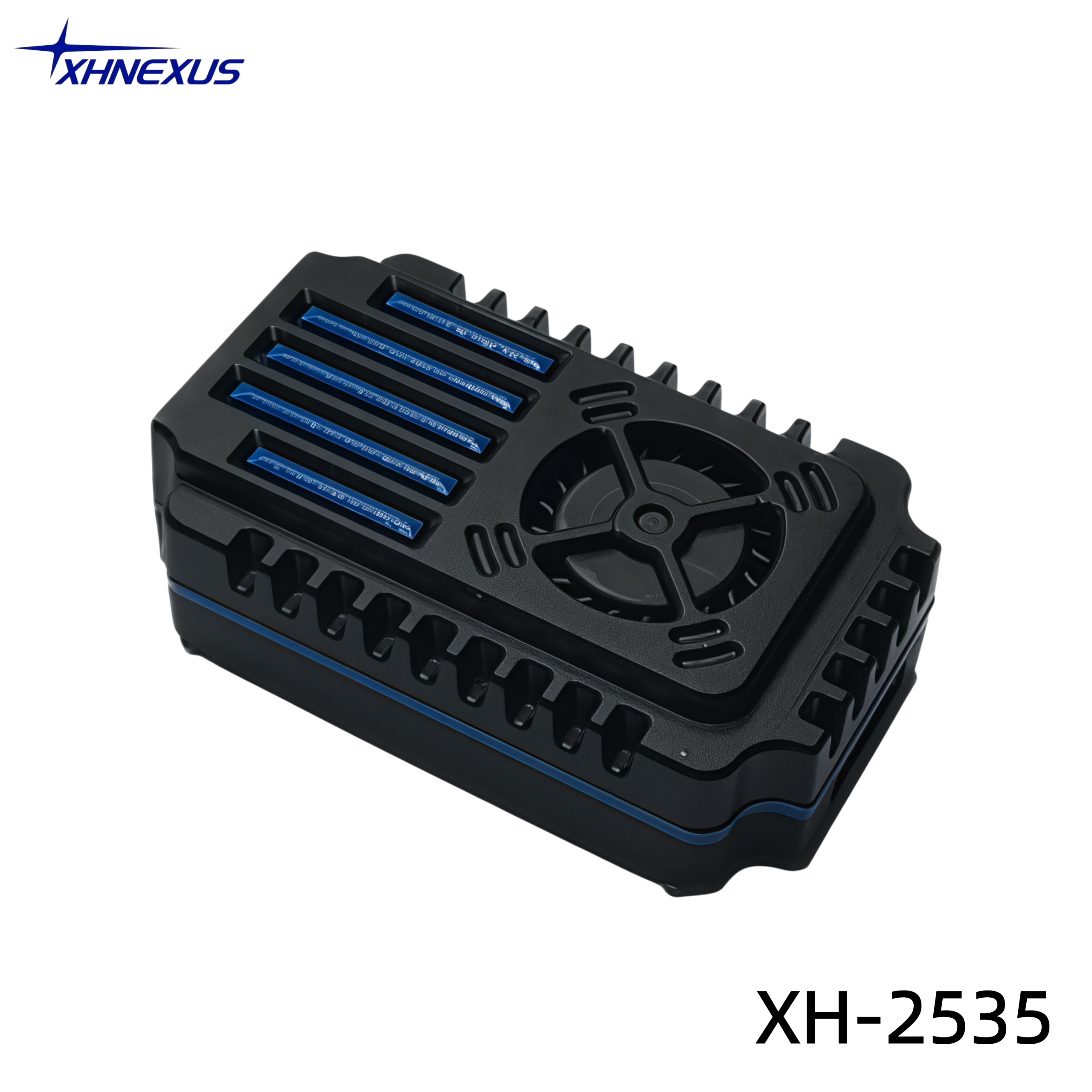

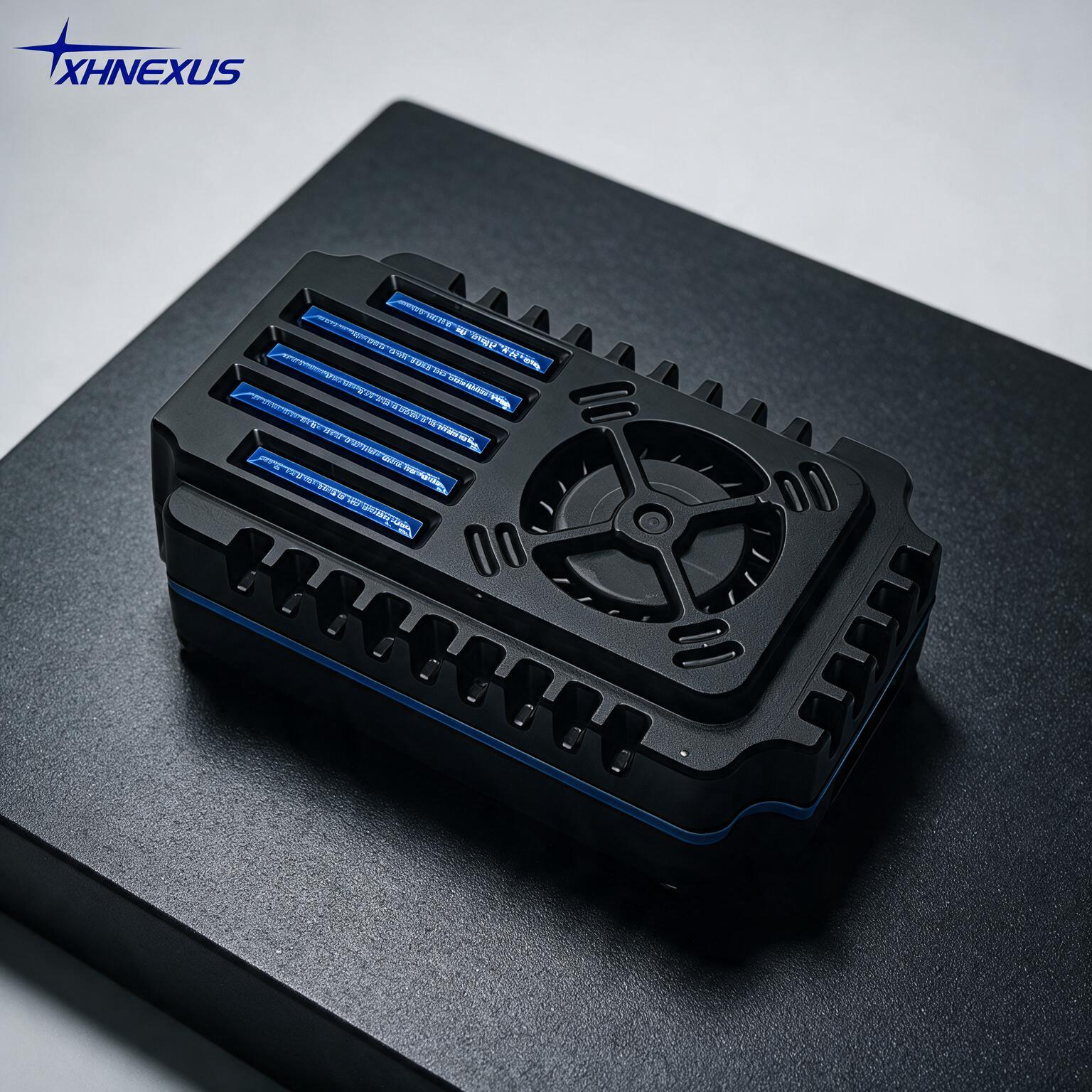

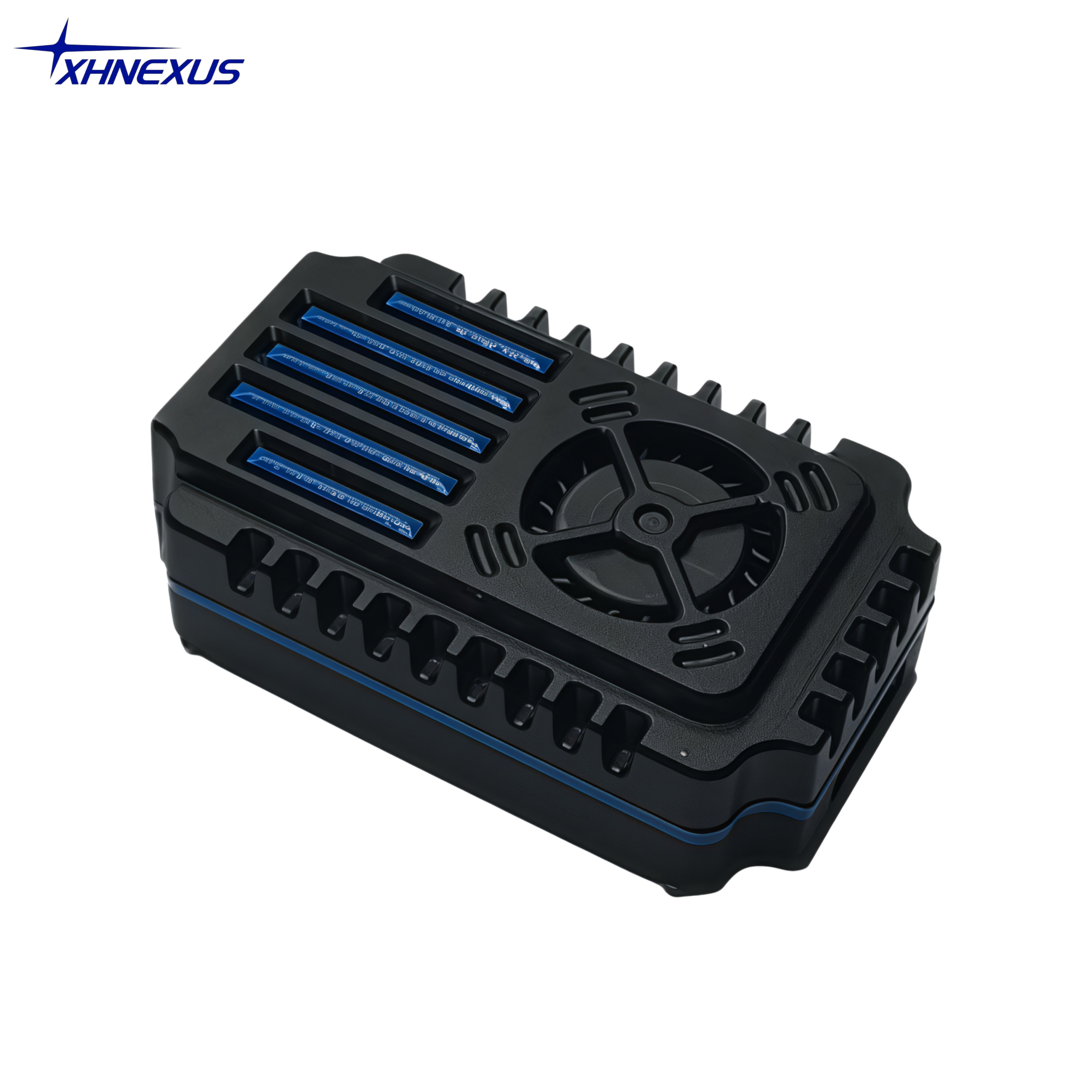

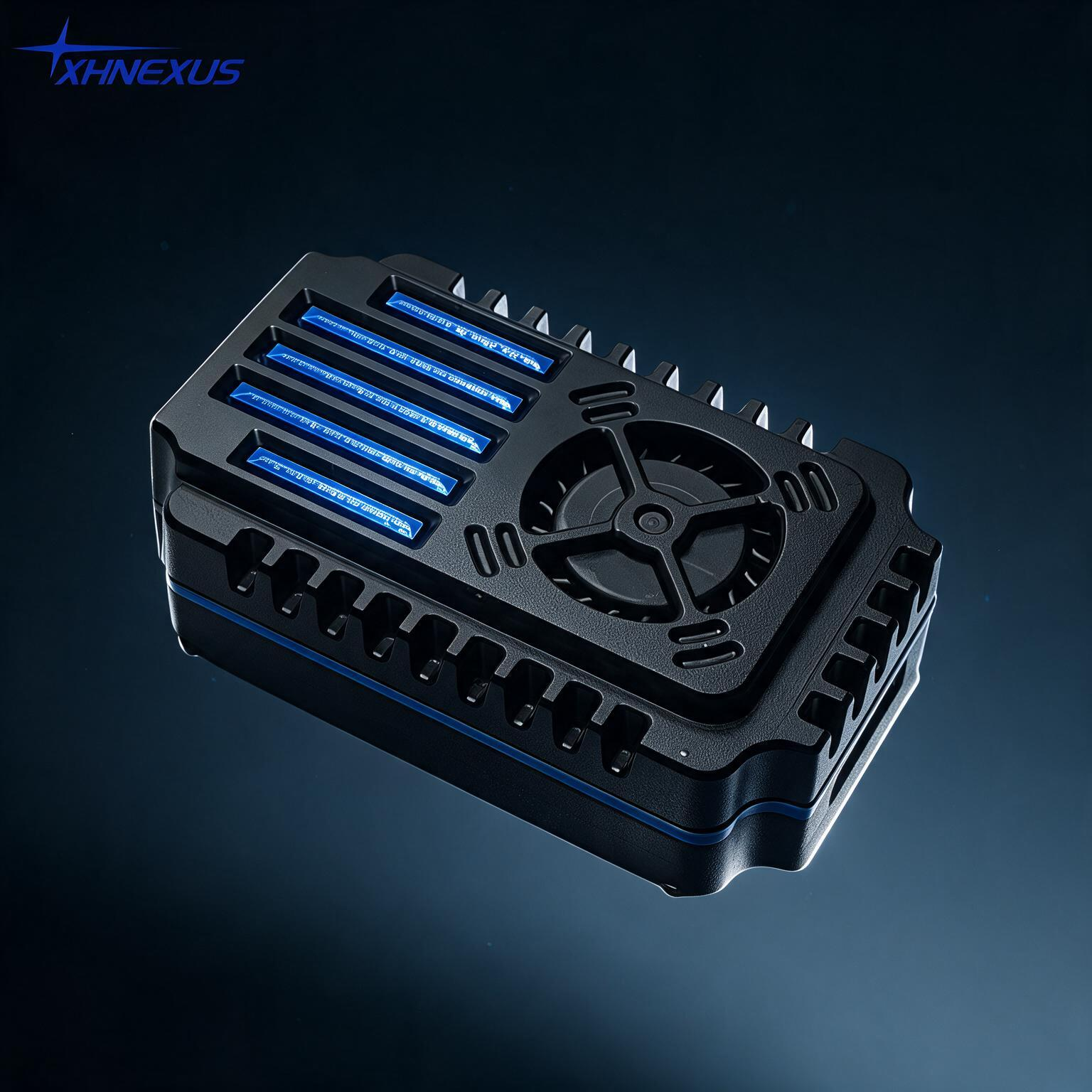

XH-2535 is a wide-band high-power 5.8G analog VTX module with max 5W output, delivering up to 25KM ideal LOS transmission. It features switchable power levels, 96 channels covering 4.884-6.055GHz, NTSC/PAL compatibility, 7-36V wide input, 12V/3A high-current & 5V/500MA auxiliary output, MMCX antenna port, and 35.1g lightweight body, suitable for mid-long range FPV drones and multi-rotor UAV platforms.
| Item | Specification |
|---|---|
| Model | XH-2535 |
| Frequency | 4.884-6.055GHz (5.8G FPV wide band) |
| Transmit Power | PIT / 25mW / 1500mW / 2500mW / 5000mW (5W) |
| Max Range | 25KM (ideal LOS) |
| Channels | 96CH |
| Video Format | NTSC / PAL |
| Input Voltage | 7-36V DC |
| Aux Output | 12V/3A, 5V/500MA |
| Antenna Port | MMCX |
| Crystal | IRC |
| Dimensions | 53mm×32mm×15mm |
| Mounting | 20*20mm M2 |
| Weight | 35.1g |
Mid-long range FPV racing drones, multi-rotor UAV video links, fixed-wing RC aircraft, medium-long range wireless video transmission
