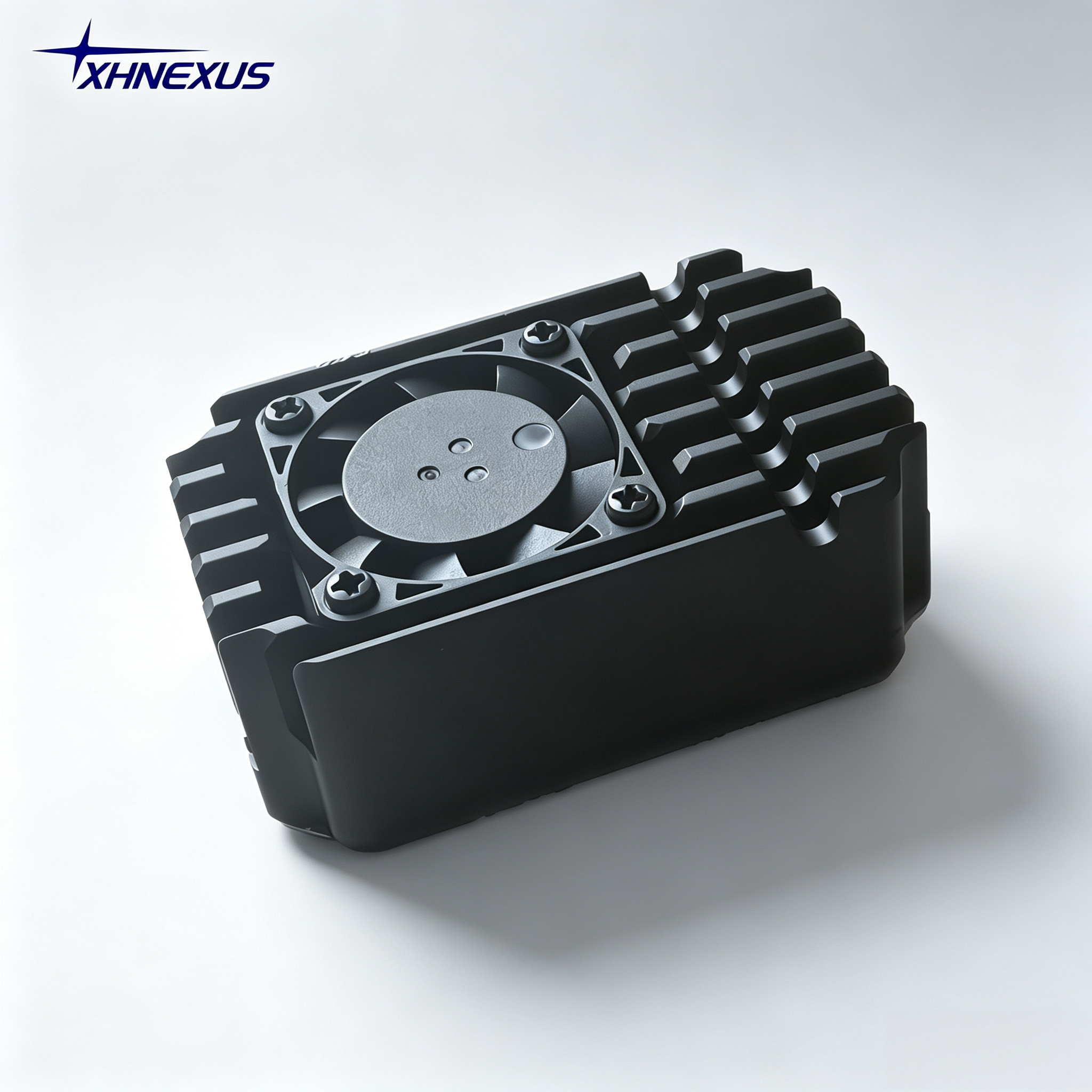

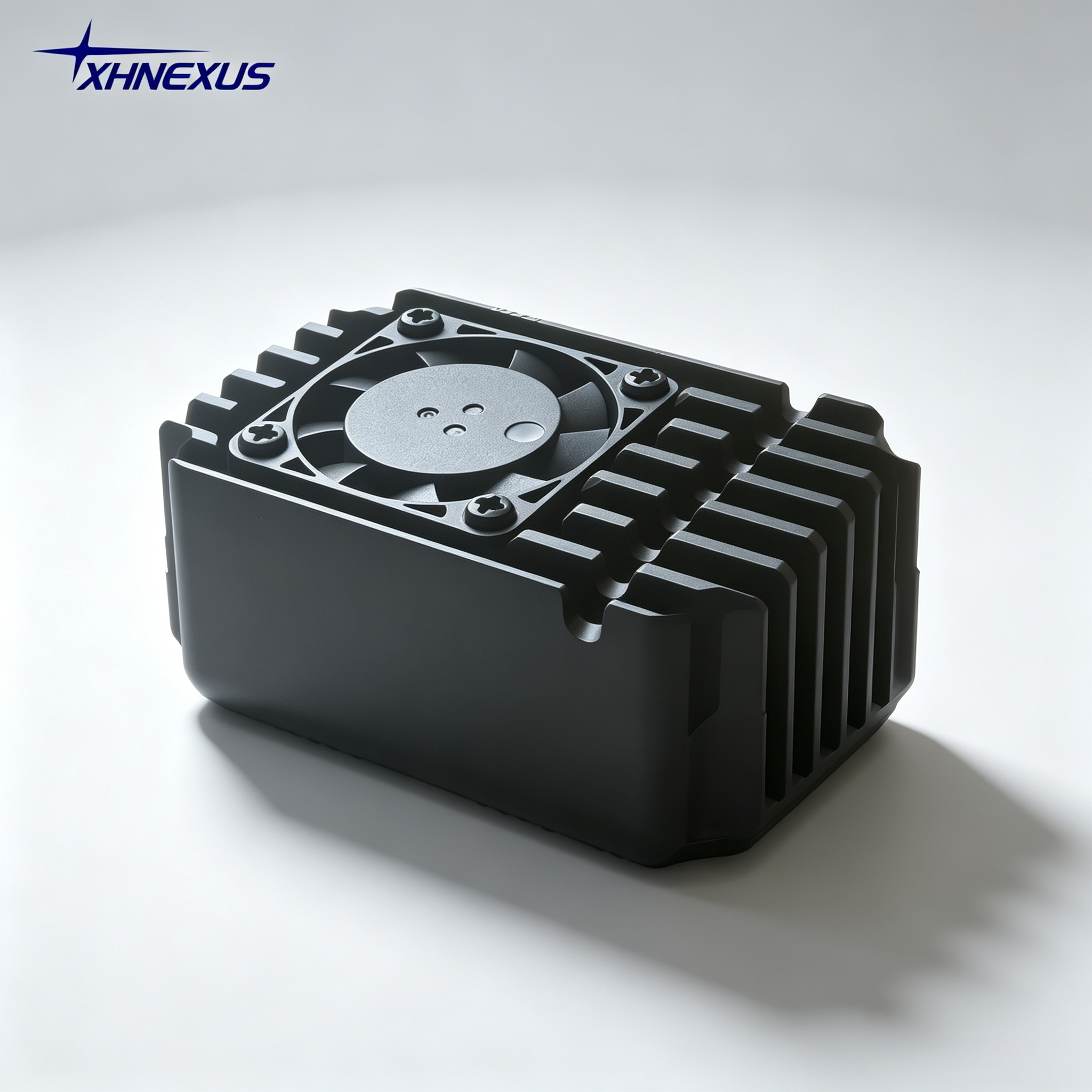

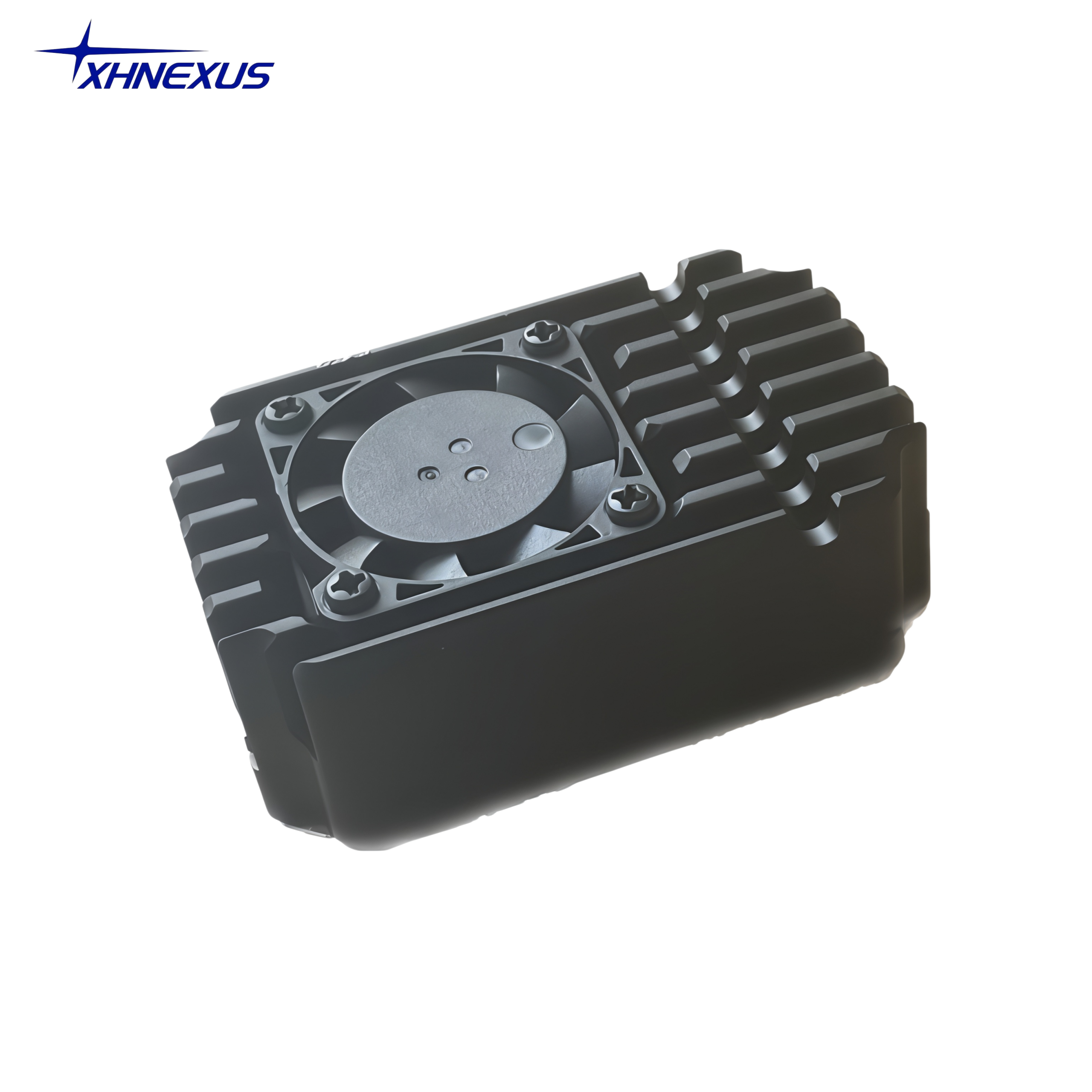

XH-2538 is a mid-power 5.8G analog VTX module with max 3W output, delivering up to 20KM ideal LOS transmission. It features 5 switchable power levels, 80 channels, NTSC/PAL compatibility, 7-36V wide input, 12V/1.6A & 5V/500MA auxiliary output, MMCX antenna port, and 35.1g lightweight body, suitable for mid-long range FPV drones and multi-rotor UAV platforms.
| Item | Specification |
|---|---|
| Model | XH-2538 |
| Frequency | 4.990-5.945GHz (5.8G FPV band) |
| Transmit Power | PIT / 25mW / 1500mW / 2000mW / 3000mW (3W) |
| Max Range | 20KM (ideal LOS) |
| Channels | 80CH |
| Video Format | NTSC / PAL |
| Input Voltage | 7-36V DC |
| Aux Output | 12V/1.6A, 5V/500MA |
| Antenna Port | MMCX |
| Crystal | IRC |

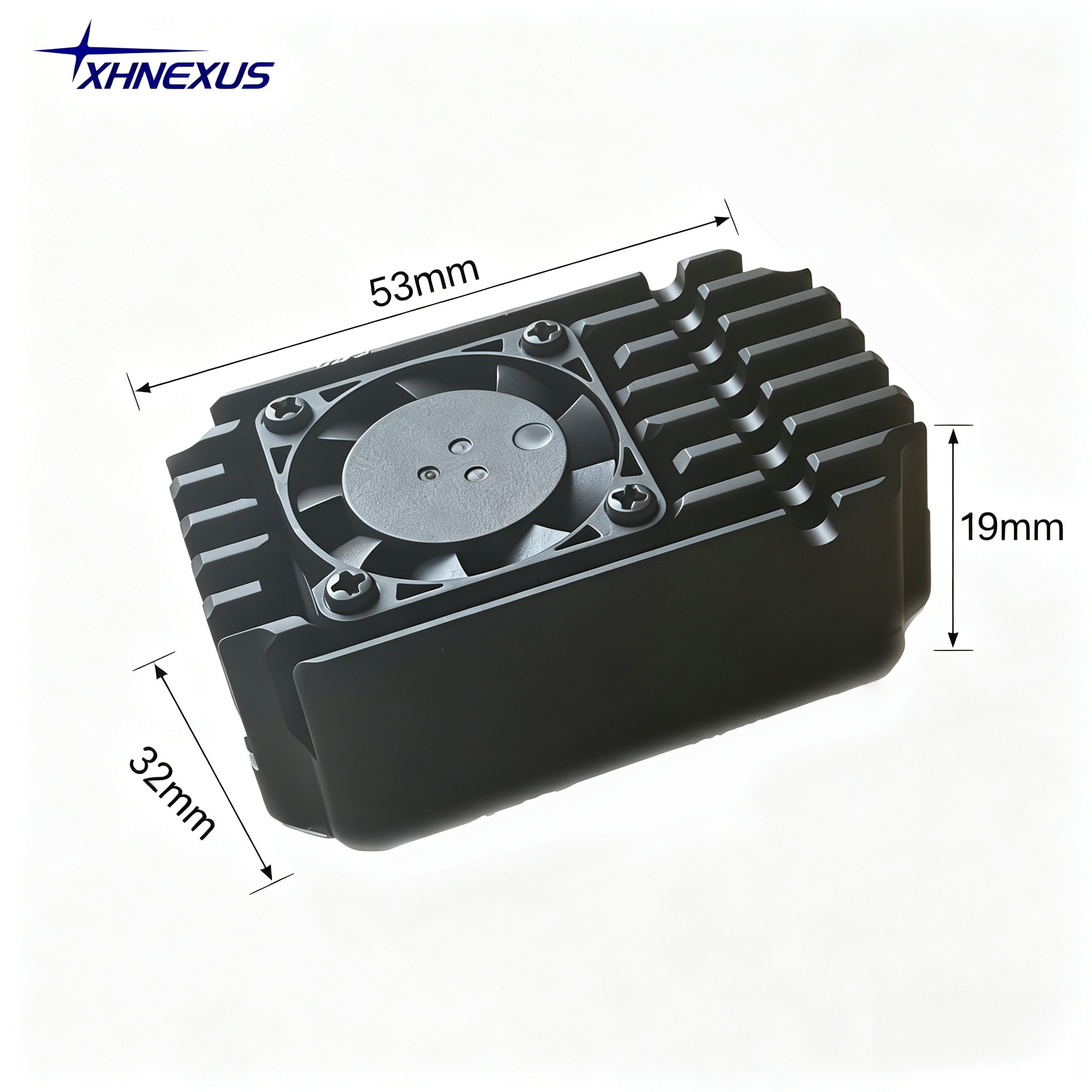

| Dimensions | 53mm×32mm×19mm |
| Mounting | 20*20mm M2 |
| Weight | 35.1g |
Mid-long range FPV racing drones, multi-rotor UAV video links, fixed-wing RC aircraft, medium-range wireless video transmission
