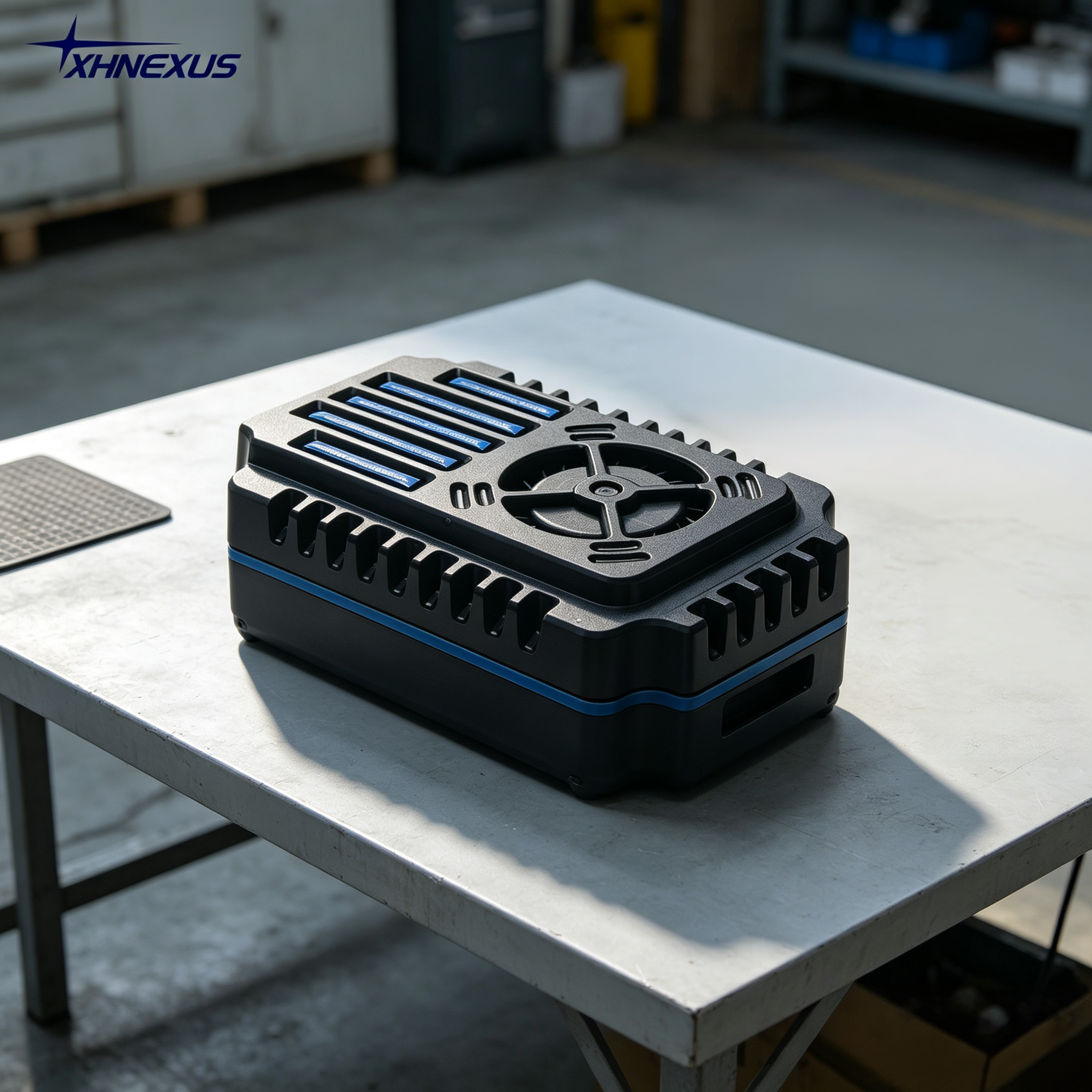

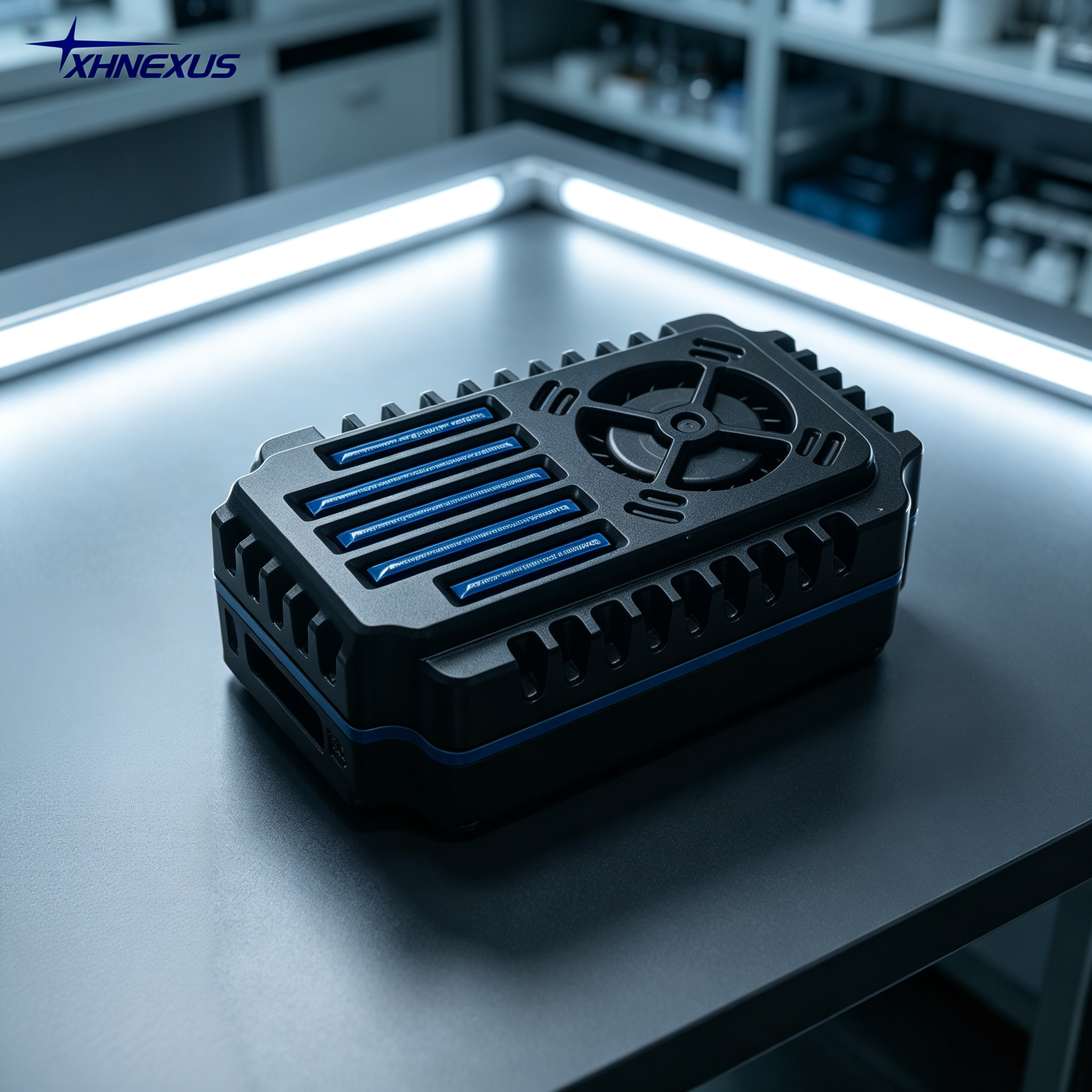

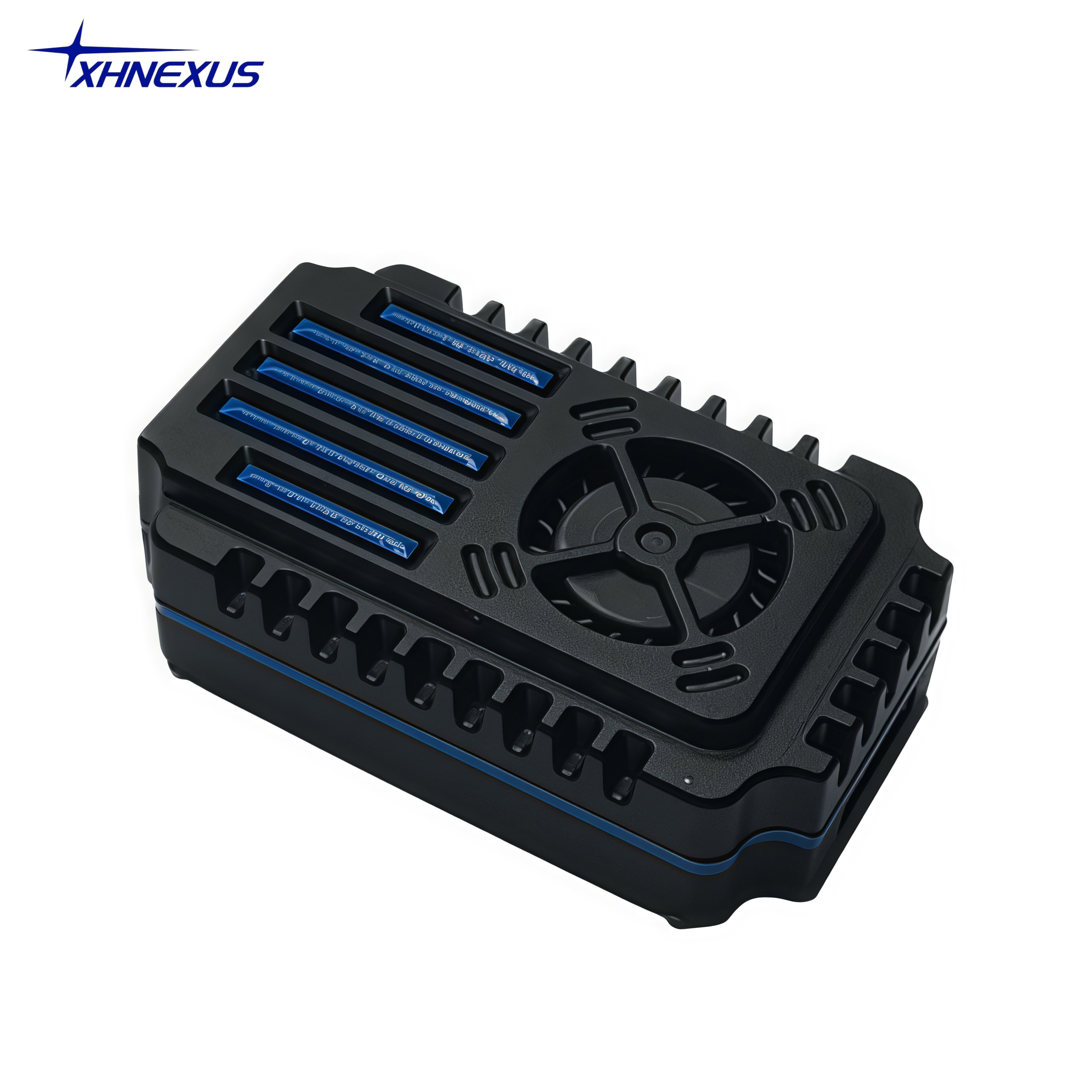

XH-3300 is a mid-power 3.3G analog VTX module with max 3.5W output, delivering up to 15KM ideal LOS transmission. It features 4 switchable power levels and 8 channels. The 3.3G band sits between 2.4G and 5.8G, balancing signal diffraction and transmission bandwidth for excellent performance in lightly obstructed environments. Compatible with NTSC/PAL, 7-36V wide input, 12V/1.8A & 5V/500MA auxiliary output, MMCX antenna port, and 35.1g lightweight body, suitable for mid-range FPV drones and multi-rotor UAV platforms.
| Item | Specification |
|---|---|
| Model | XH-3300 |
| Frequency | 3.290-3.450GHz (3.3G FPV band) |
| Transmit Power | PIT / 25mW / 200mW / 3500mW (3.5W) |
| Max Range | 15KM (ideal LOS) |
| Channels | 8CH |
| Video Format | NTSC / PAL |
| Input Voltage | 7-36V DC |
| Aux Output | 12V/1.8A, 5V/500MA |
| Antenna Port | MMCX |
| Crystal | IRC |

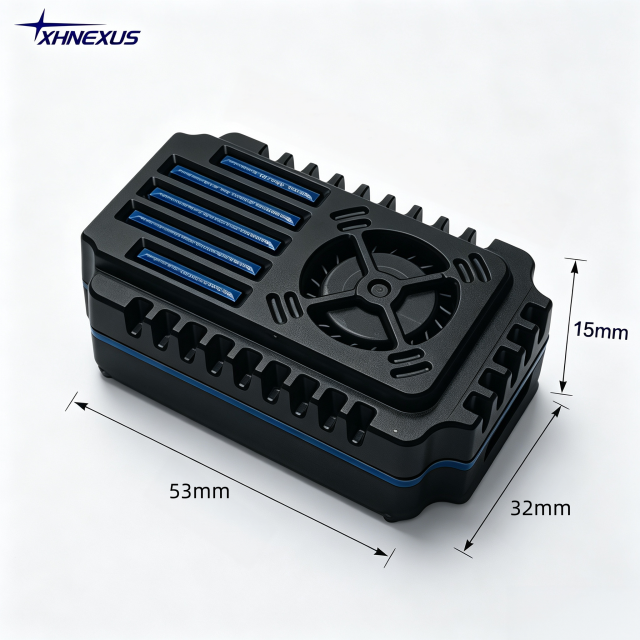

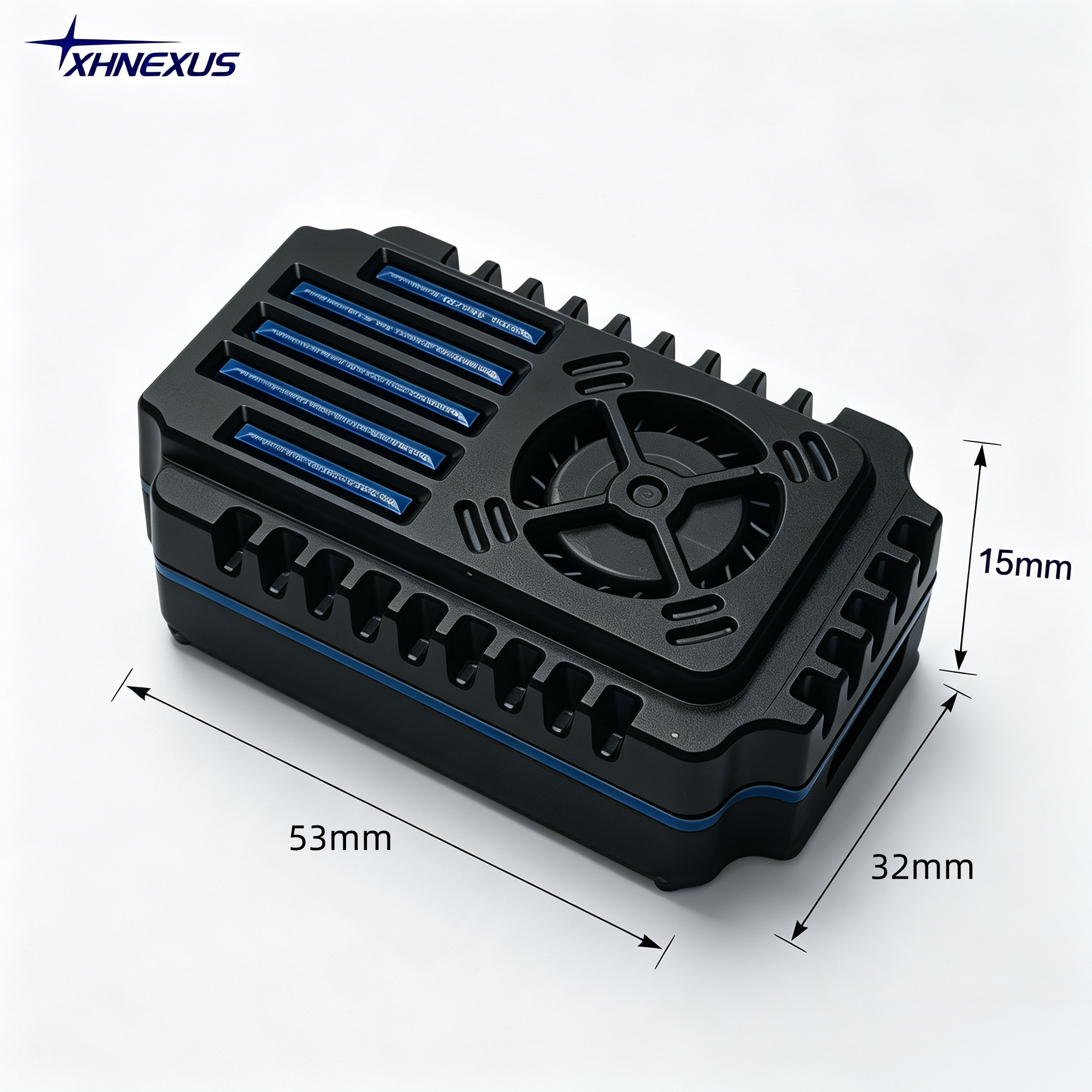

| Dimensions | 53mm×32mm×15mm |
| Mounting | 20*20mm M2 |
| Weight | 35.1g |
Mid-range FPV racing drones, multi-rotor UAV video links, lightly obstructed wireless transmission, fixed-wing RC aircraft
