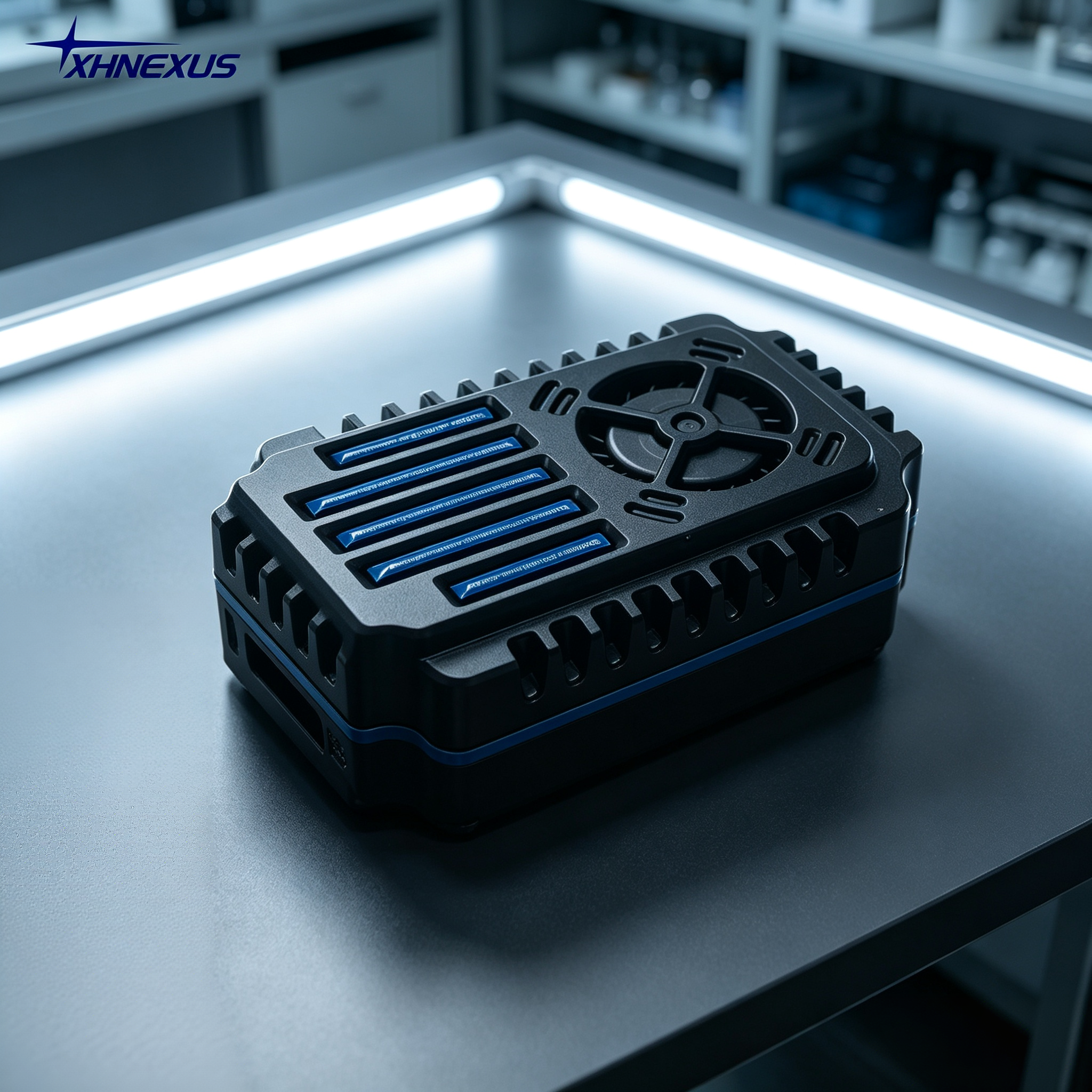

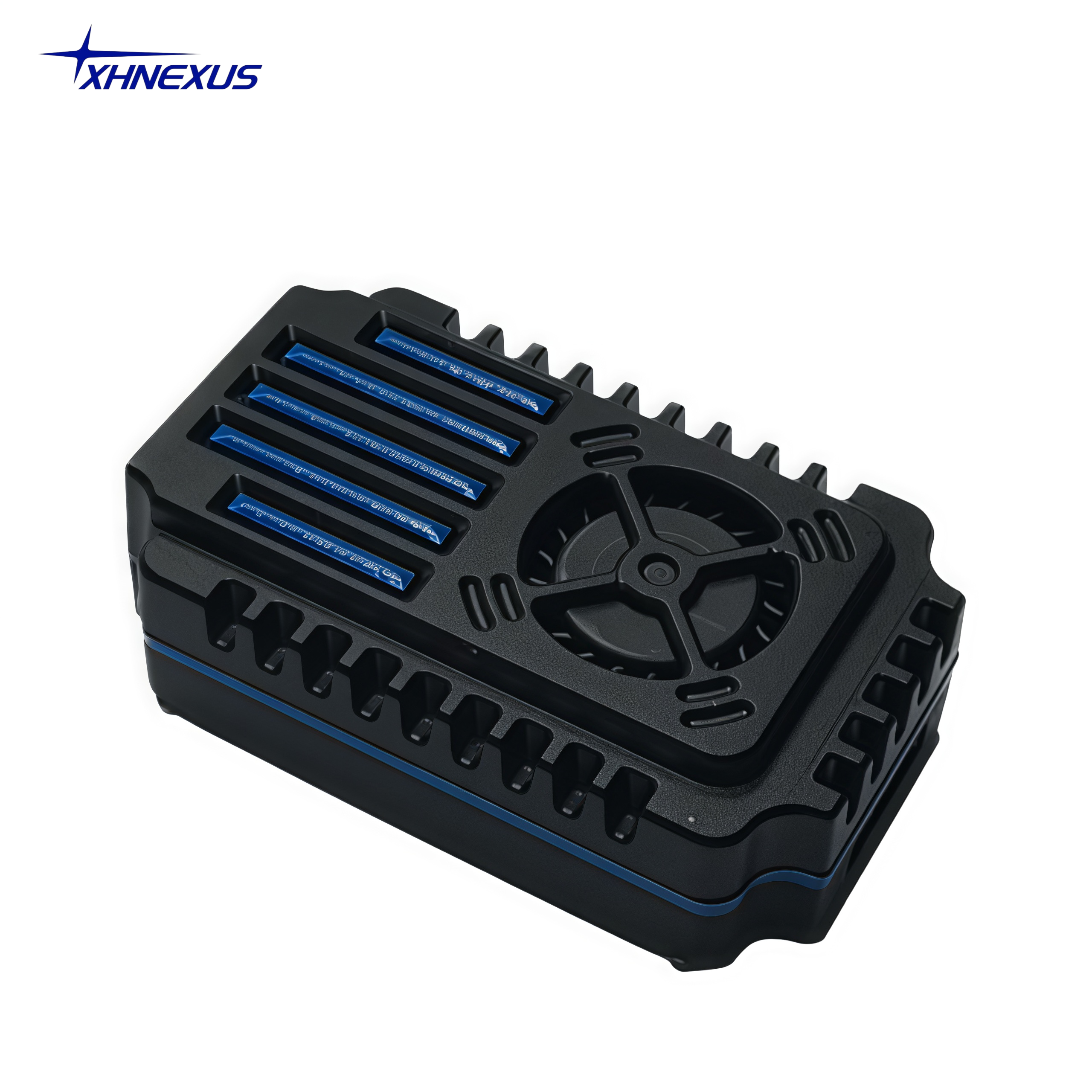

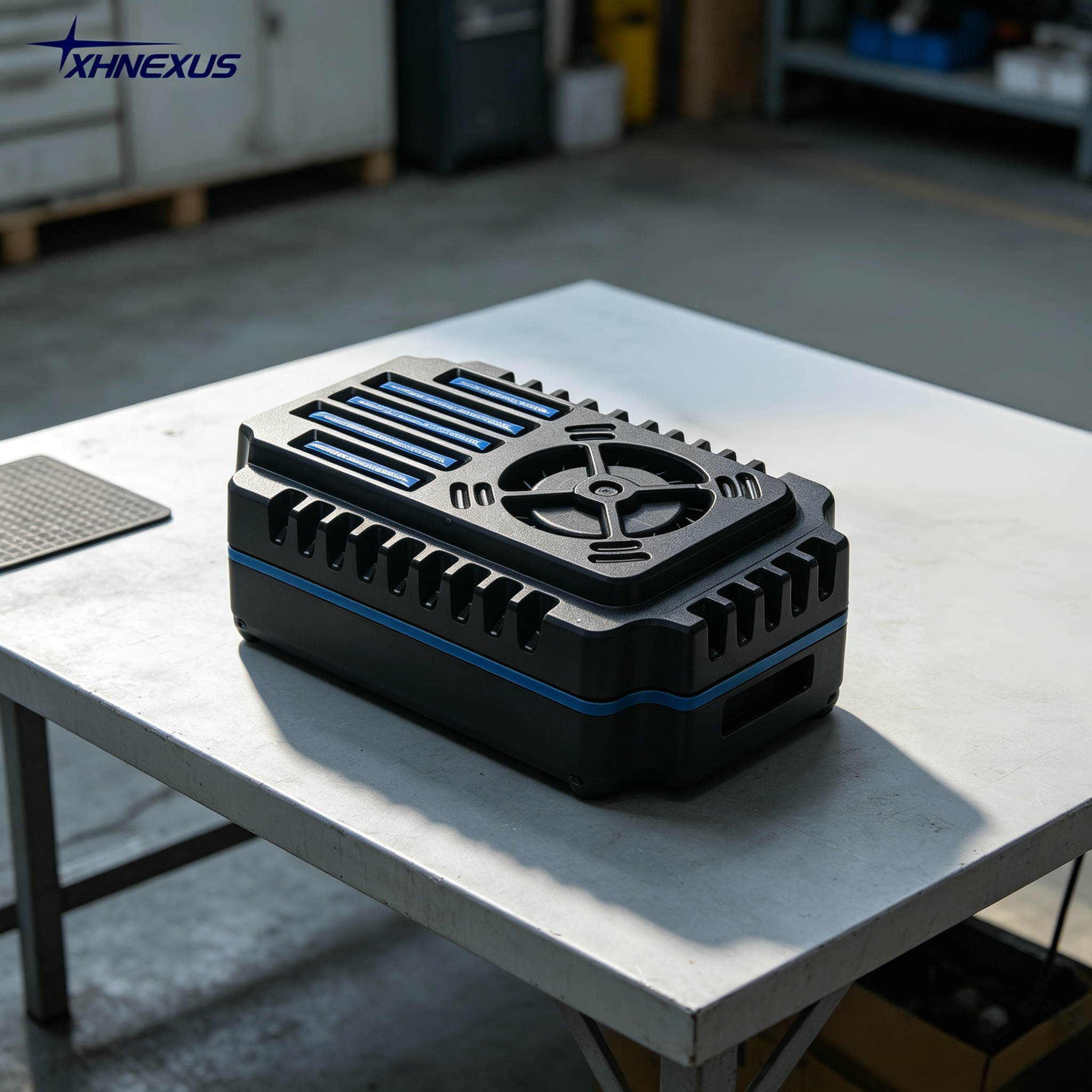

XH-3301 is a mid-power 3.8G analog VTX module with max 3.5W output, delivering up to 18KM ideal LOS transmission. It features 5 switchable power levels and 32 channels. As a balanced frequency band, 3.8G offers higher bandwidth than 3.3G and better diffraction than 5.8G, delivering consistent performance in lightly obstructed scenarios. Compatible with NTSC/PAL, 7-36V wide input, 12V/2.6A high-current & 5V/500MA auxiliary output, MMCX antenna port, and 35.1g lightweight body, suitable for mid-long range FPV drones and multi-rotor UAV platforms.
| Item | Specification |
|---|---|
| Model | XH-3301 |
| Frequency | 3.590-3.950GHz (3.8G FPV band) |
| Transmit Power | PIT / 25mW / 200mW / 1000mW / 3500mW (3.5W) |
| Max Range | 18KM (ideal LOS) |
| Channels | 32CH |
| Video Format | NTSC / PAL |
| Input Voltage | 7-36V DC |
| Aux Output | 12V/2.6A, 5V/500MA |
| Antenna Port | MMCX |
| Crystal | IRC |

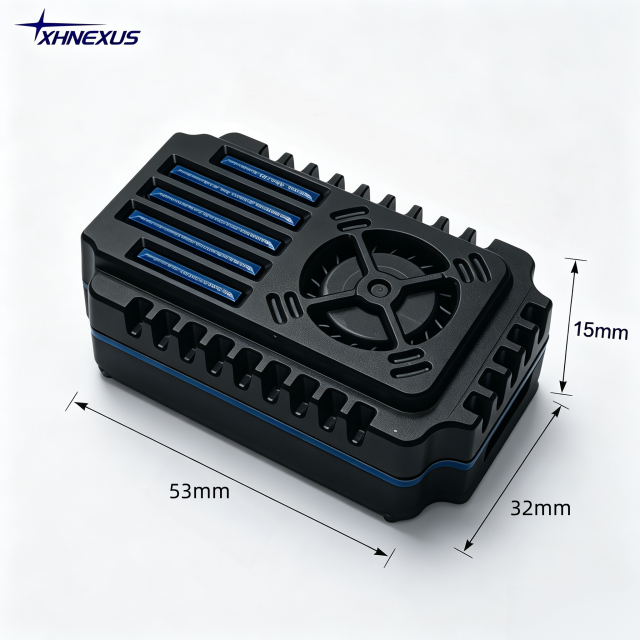

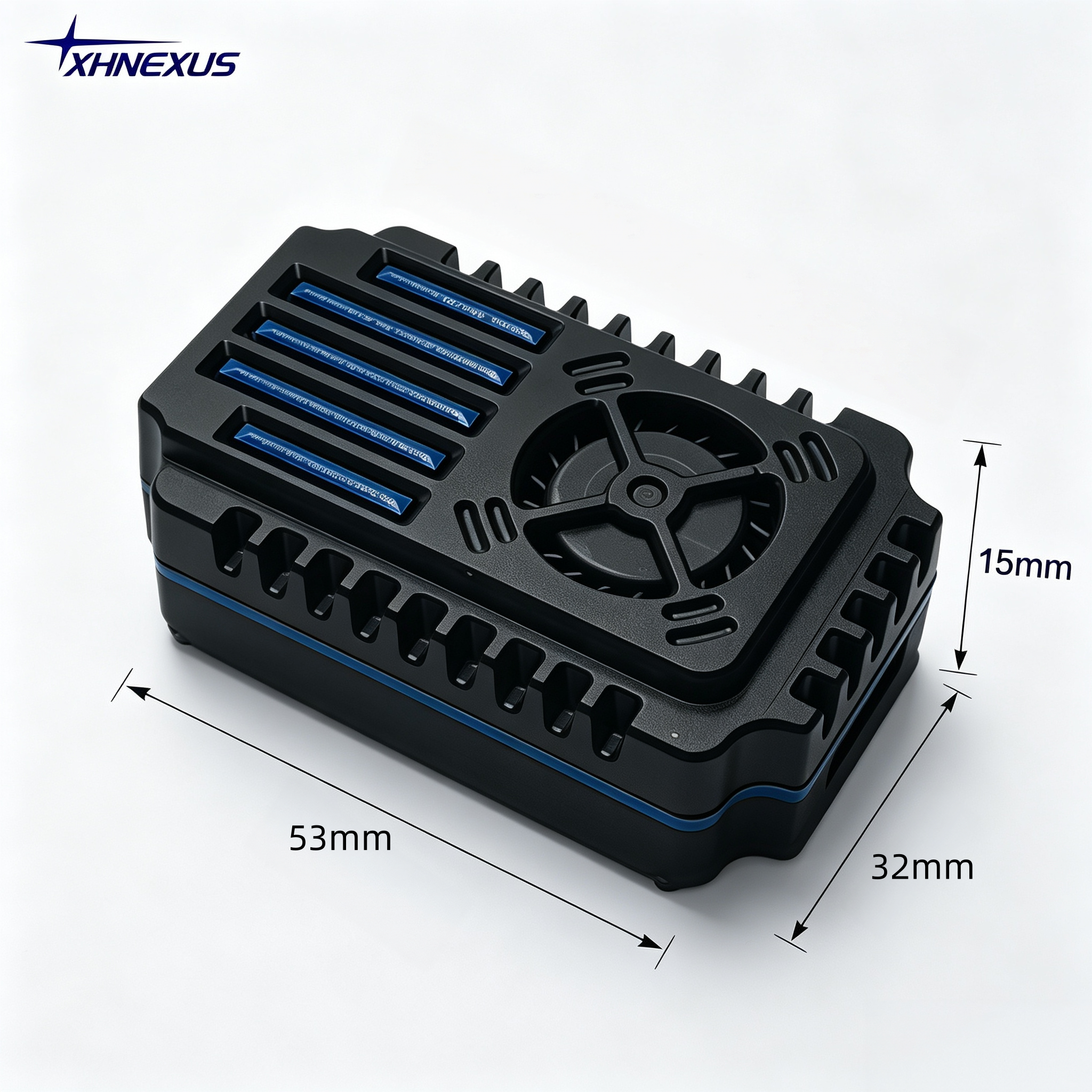

| Dimensions | 53mm×32mm×15mm |
| Mounting | 20*20mm M2 |
| Weight | 35.1g |
Mid-long range FPV racing drones, multi-rotor UAV video links, lightly obstructed wireless transmission, fixed-wing RC aircraft
