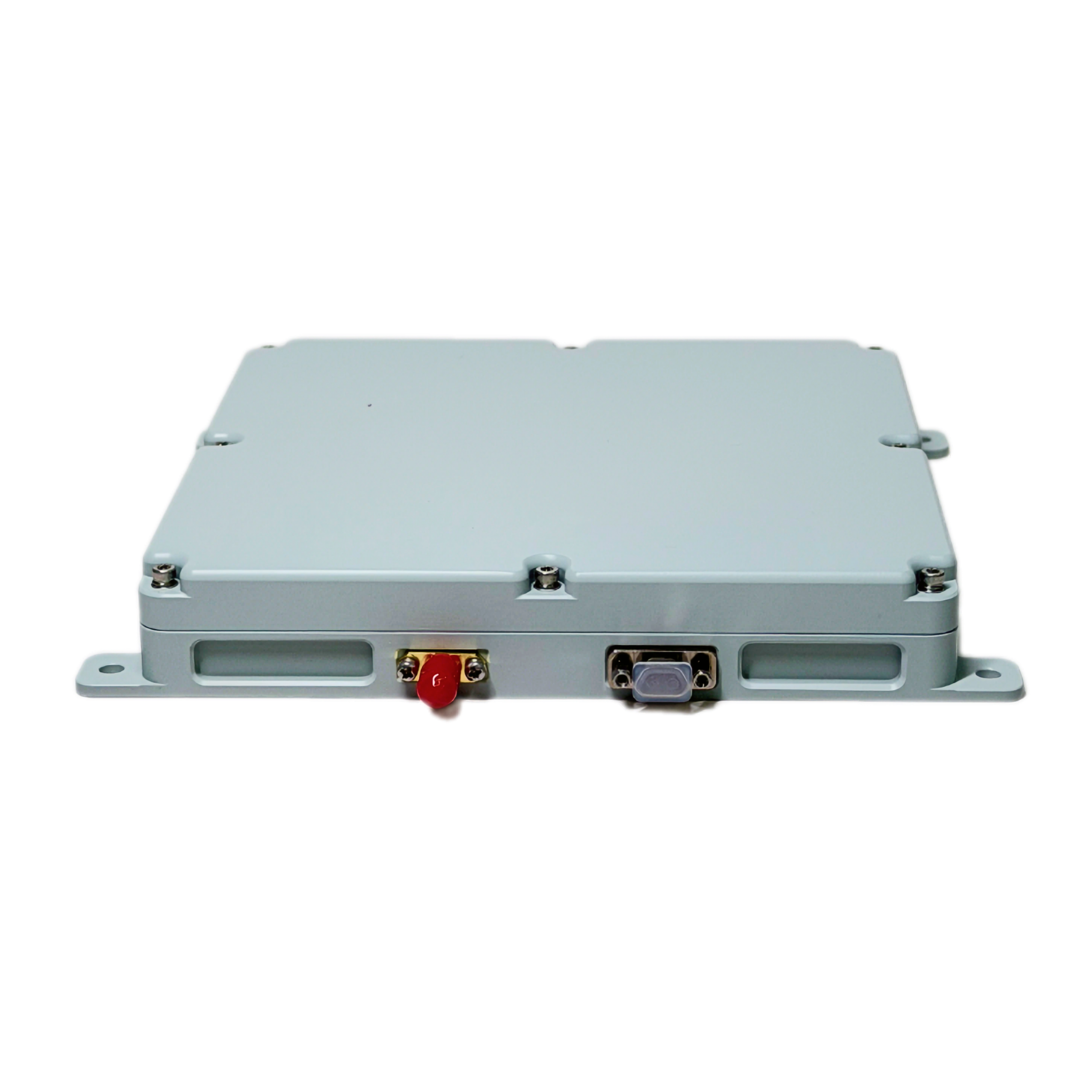

The XH-8AT-FULL-KGR-34V is a miniaturized satellite navigation anti-jamming terminal built for industrial drone applications. It supports dual GNSS constellations including GPS and GLONASS, maintaining stable and reliable navigation performance even in dense and complex electromagnetic environments.
This device adopts an 8-element antenna array architecture, with fully integrated anti-jamming processing modules and an on-board GNSS receiver. It can detect and suppress multiple barrage jamming signals simultaneously, with a maximum handling capacity of 7 concurrent interference sources. With full spatial anti-jamming coverage, it delivers consistent performance throughout dynamic flight and maneuvering scenarios.
Optimized for size, weight and power consumption, the terminal fits perfectly onto UAV platforms with strict payload and space limitations. Its standard RF output interface enables seamless integration with downstream navigation systems and flight controllers, serving as a robust front-end anti-jamming module for unmanned navigation links.
| Parameter | Specification |
|---|---|
| Model | XH-8AT-FULL-KGR-34V |
| Product Type | 8-element anti-jamming terminal |
| Antenna Array | 8 elements |
| Max Simultaneous Jamming Sources | 7 channels |
| Single jamming suppression ratio | ≥110dBc |
| Three simultaneous jammings suppression ratio | ≥100dBc |
| Seven simultaneous jammings suppression ratio | ≥70dBc |
| Supported interference types | Band-limited Gaussian white noise, spread spectrum matched filter, pulse jamming, sweep jamming, mixed interference |
| Anti-jamming spatial coverage | Azimuth 0~360°; Elevation -90°~90° |

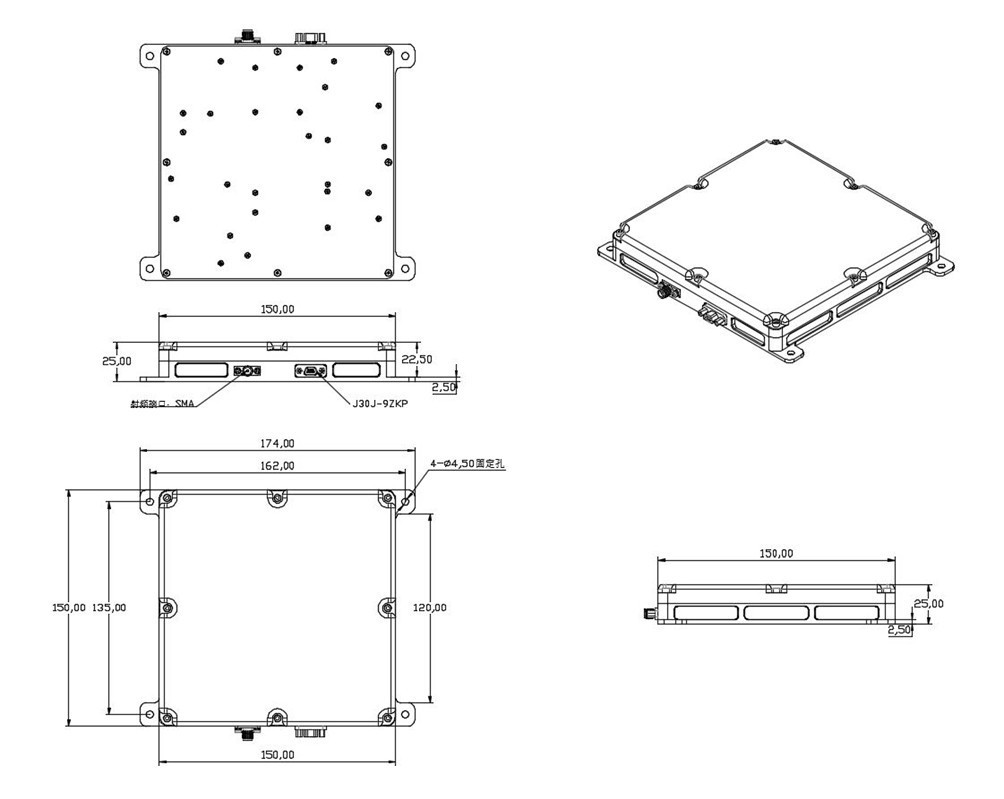

| Dimensions | 150 × 150 × 22.5mm |
| Power consumption | ≤19W |
| Weight | ≤720g |
| Output signal frequency | 1561.098MHz / 1575.42MHz |
| Output power | -70 ~ -60dBm |
| Output impedance | 50 ohms |
