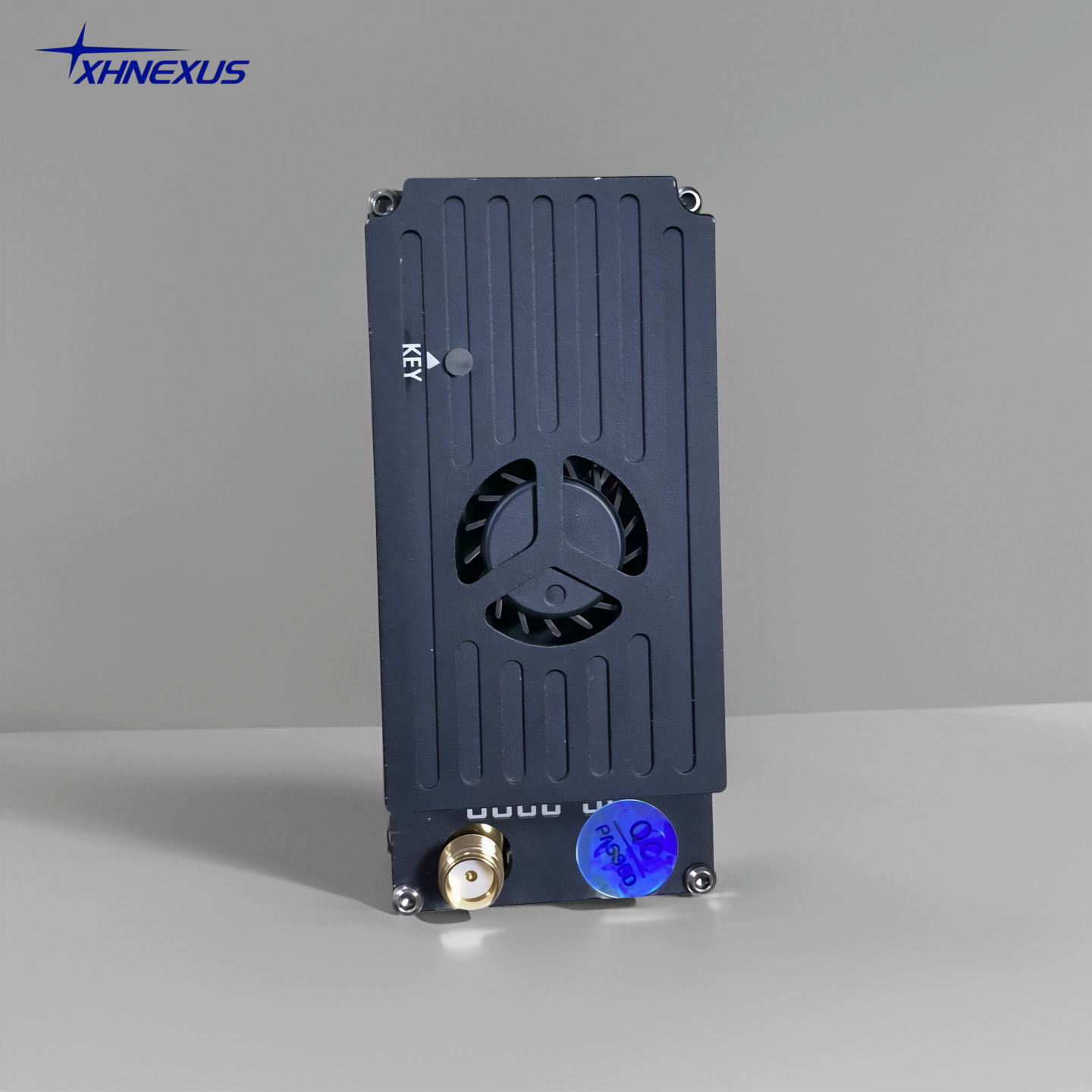

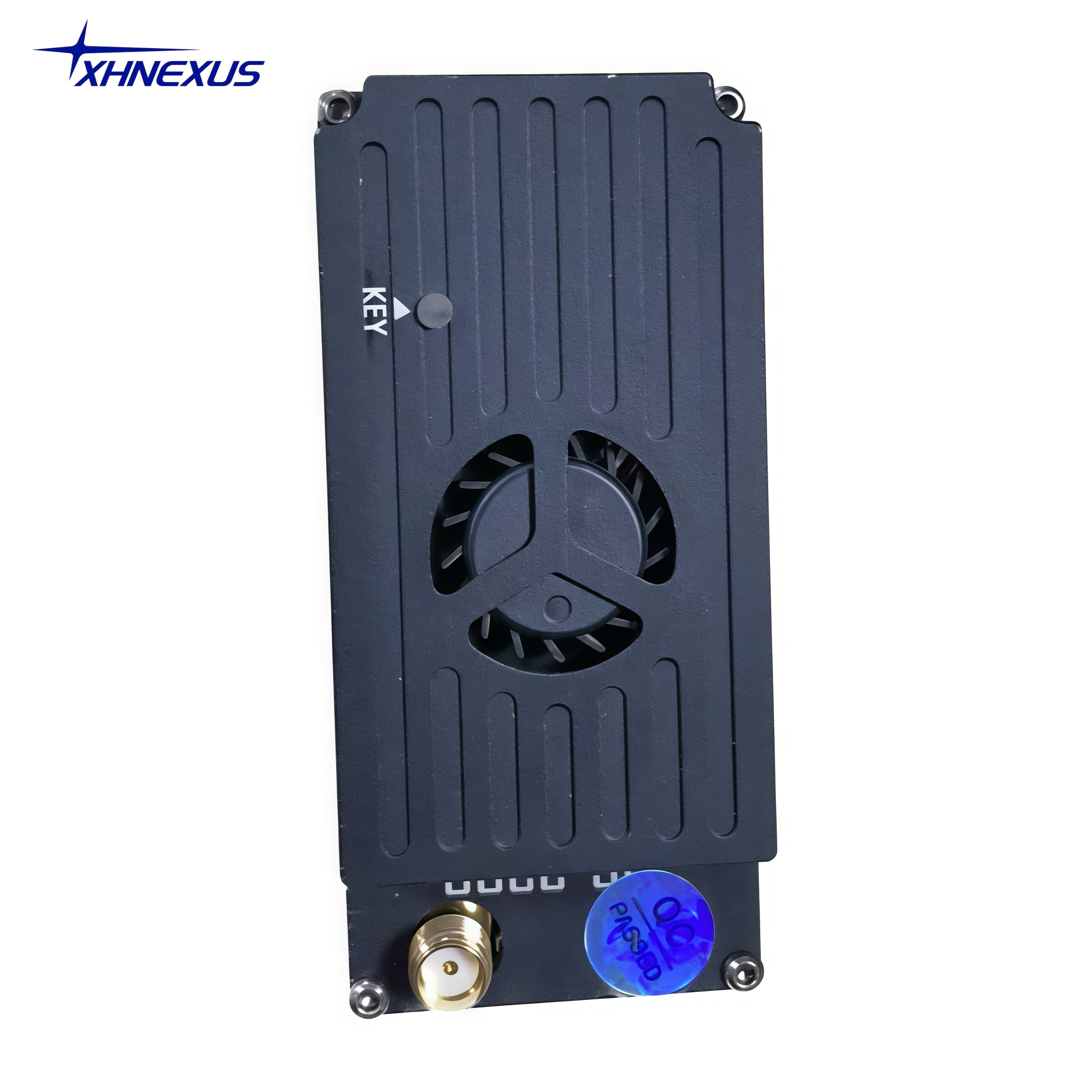

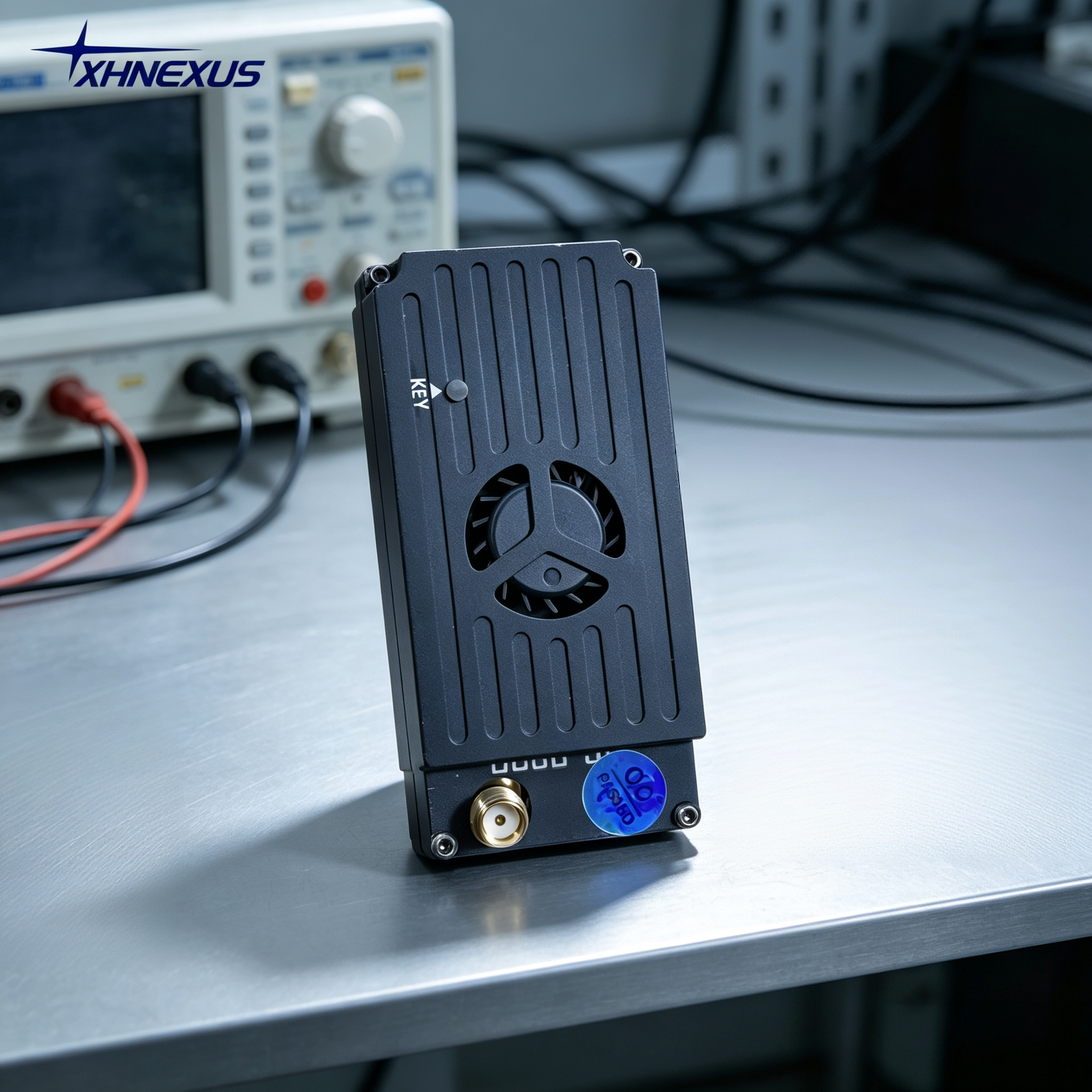

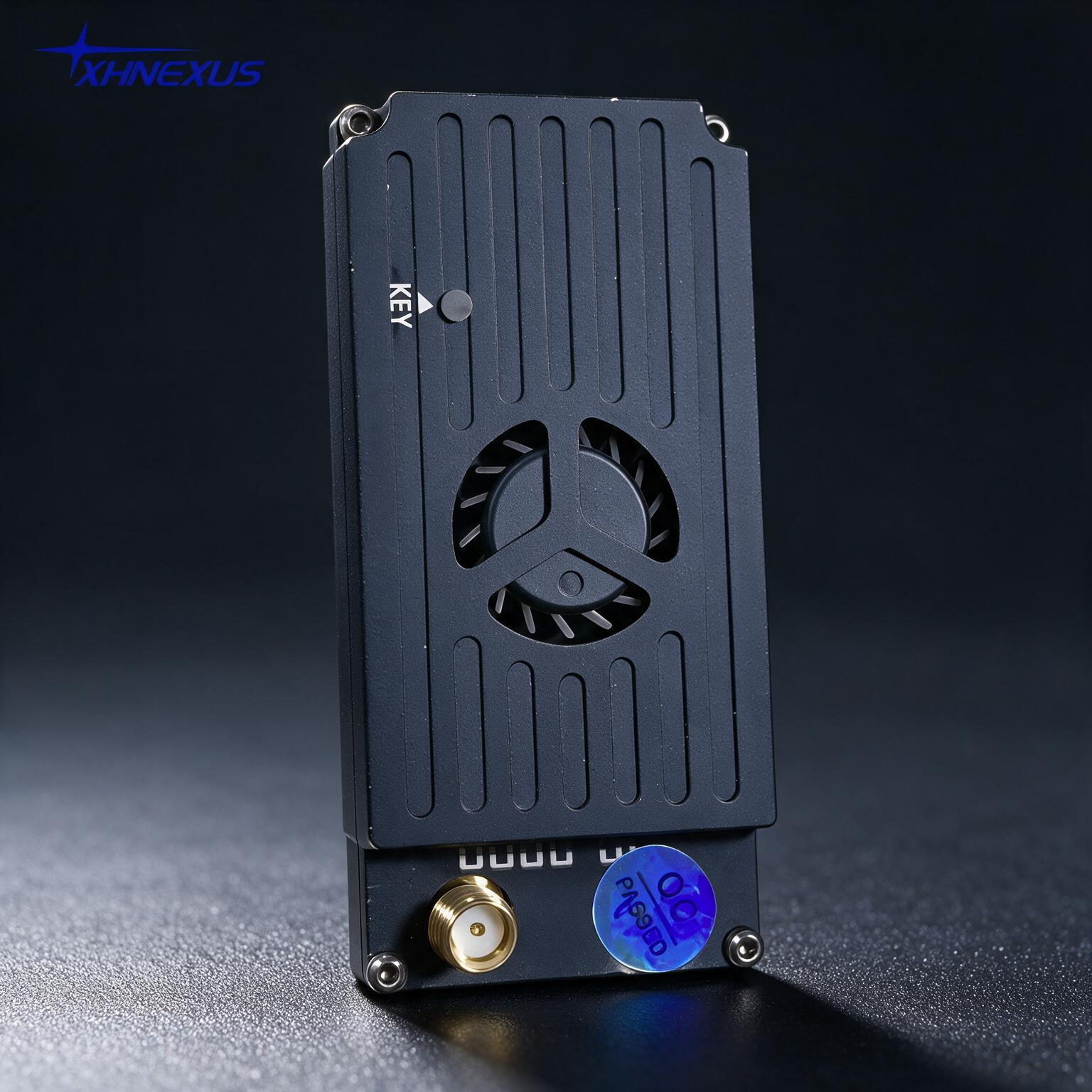

XH-R13 is a wide-band analog VTX receiver module covering 1.3G-1.8G with 32 selectable channels and -85dB receiving sensitivity, stably receiving analog video signals from 1.2G, 1.3G and 1.4G transmitters. Powered by 5V low voltage with 390mA operating current for low power consumption. Only 3g weight and 26×73×7mm ultra-thin size, easy to integrate into ground stations, goggles and portable receiving devices, ideal as a supporting receiver solution for mid-long range FPV flight.
| Item | Specification |
|---|---|
| Model | XH-R13 |
| Receiving Frequency | 1.3G-1.8GHz |
| Channels | 32CH |
| Receiving Sensitivity | -85dB |
| Input Voltage | 5V DC |
| Operating Current | 390mA |
| Dimensions | 26mm×73mm×7mm |
| Weight | 3g |
FPV ground station reception, FPV goggle integration, portable video receiving devices, mid-long range FPV flight support
