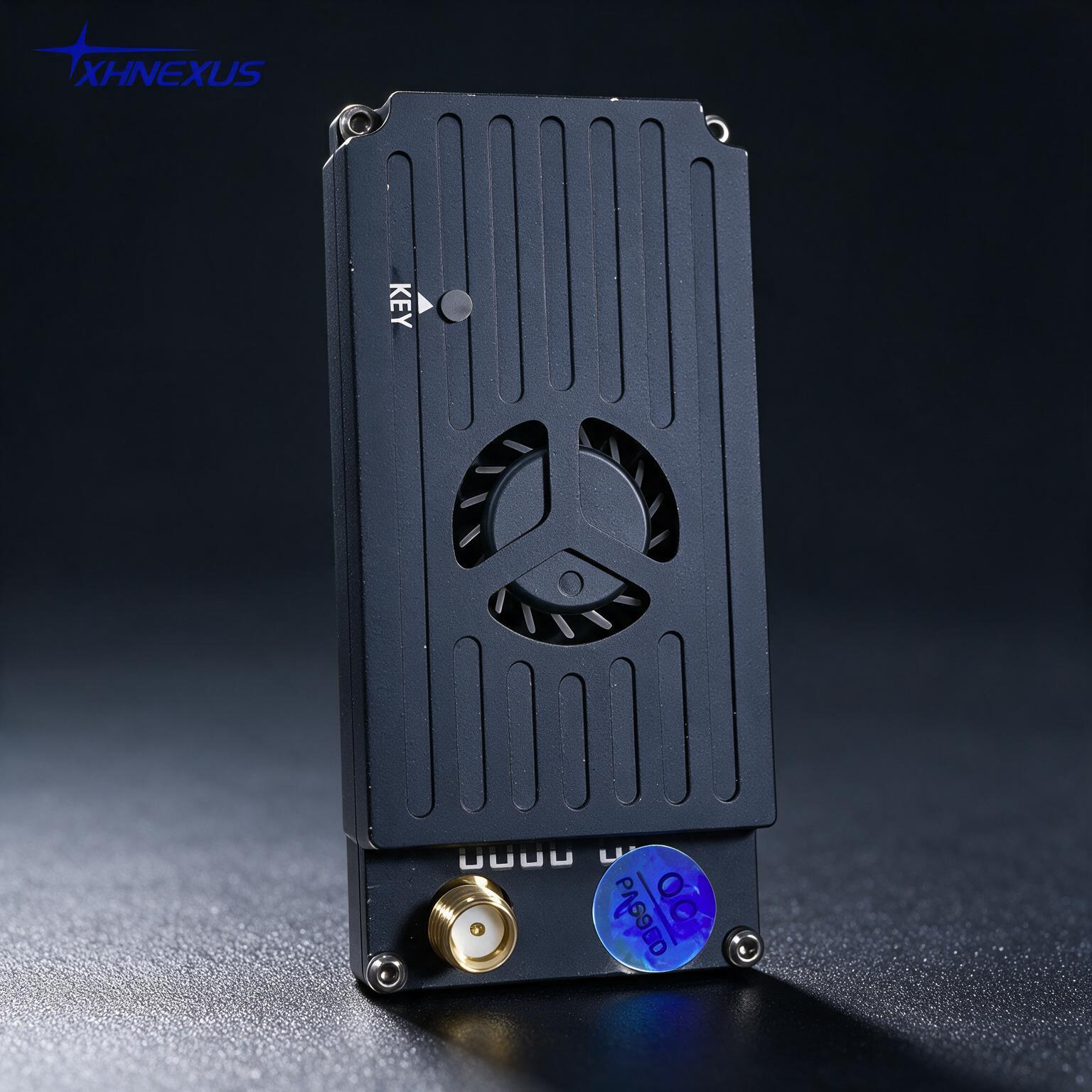

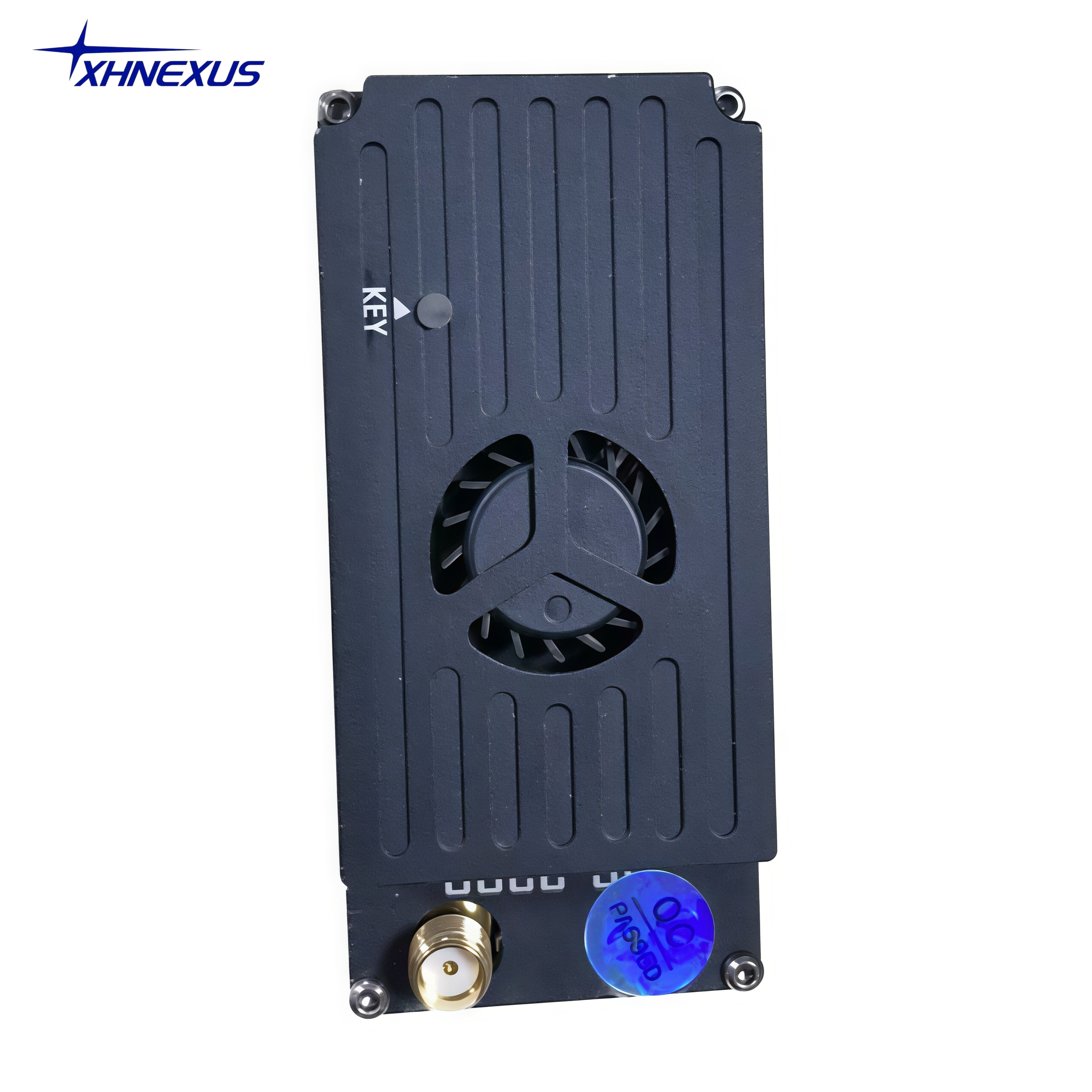

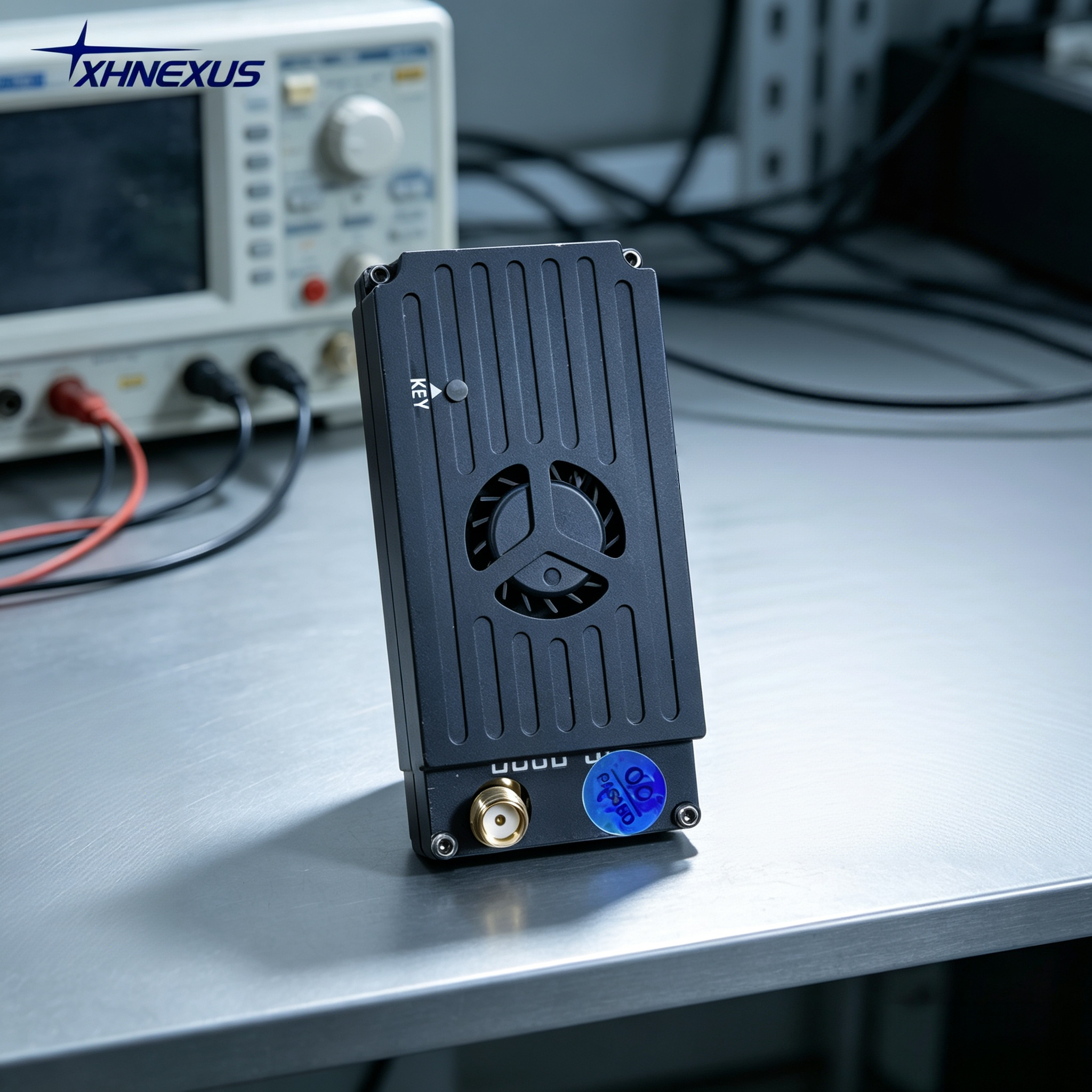

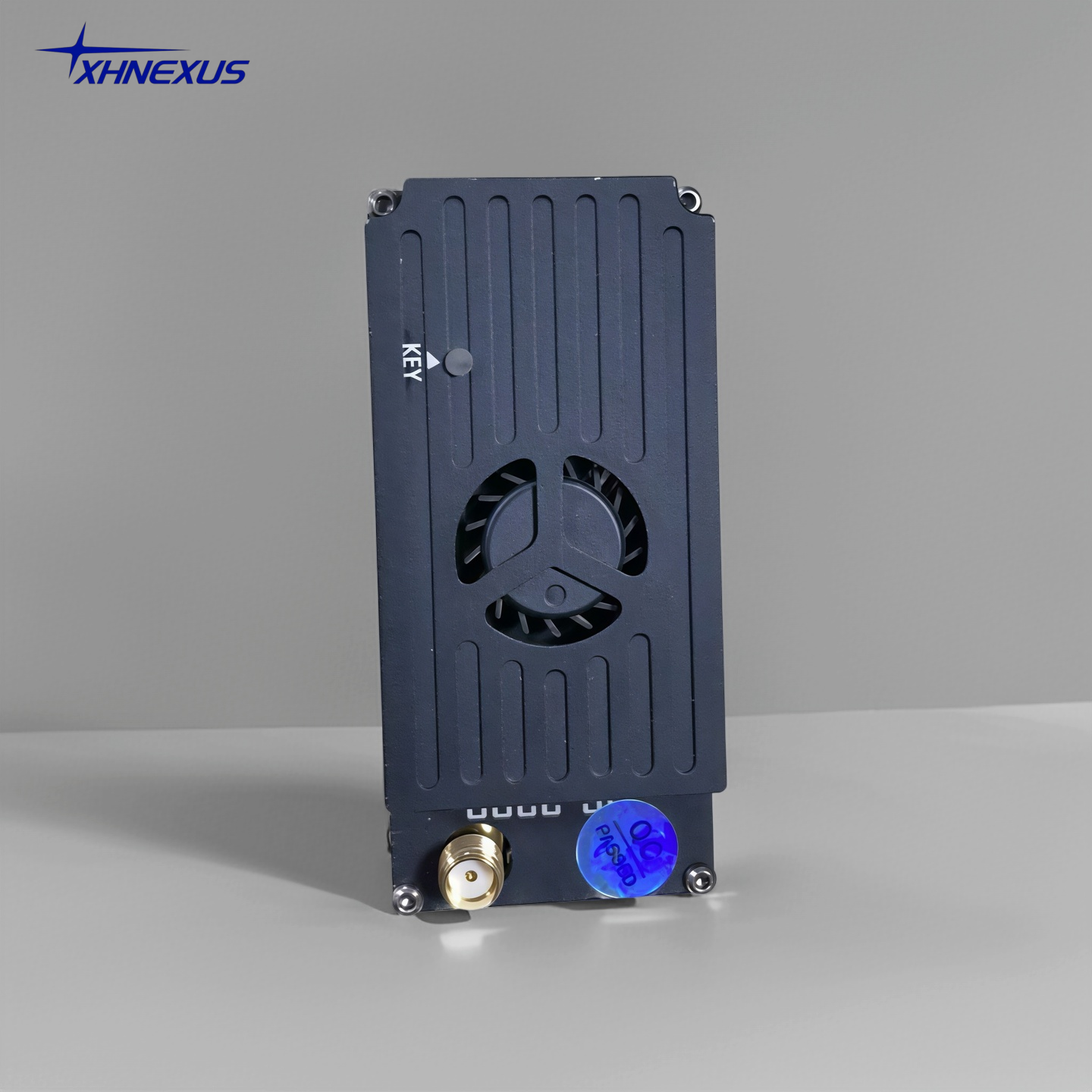

XH-R33 is a wide-band analog VTX receiver module covering 3.1G-3.95G with 32 selectable channels and -85dB receiving sensitivity, stably receiving analog video signals from 3.3G band transmitters. Powered by 5V low voltage with 390mA operating current for low power consumption. Only 3g weight and 26×73×7mm ultra-thin size, easy to integrate into ground stations, goggles and portable receiving devices, a cost-effective supporting receiver solution for mid-long range FPV flight.
| Item | Specification |
|---|---|
| Model | XH-R33 |
| Receiving Frequency | 3.1G-3.95GHz |
| Channels | 32CH |
| Receiving Sensitivity | -85dB |
| Input Voltage | 5V DC |
| Operating Current | 390mA |
| Dimensions | 26mm×73mm×7mm |
| Weight | 3g |
FPV ground station reception, FPV goggle integration, portable video receiving devices, mid-long range FPV flight support
