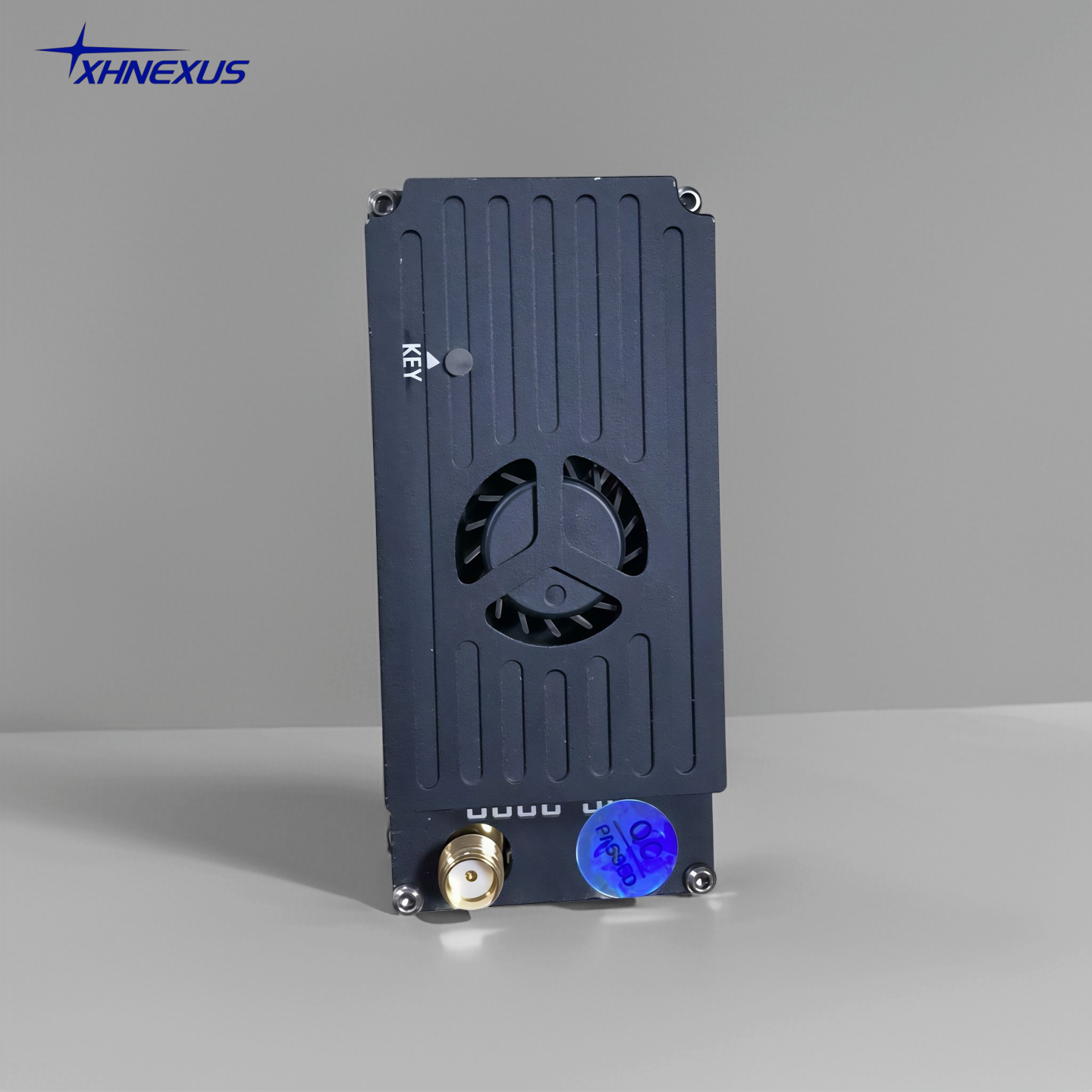

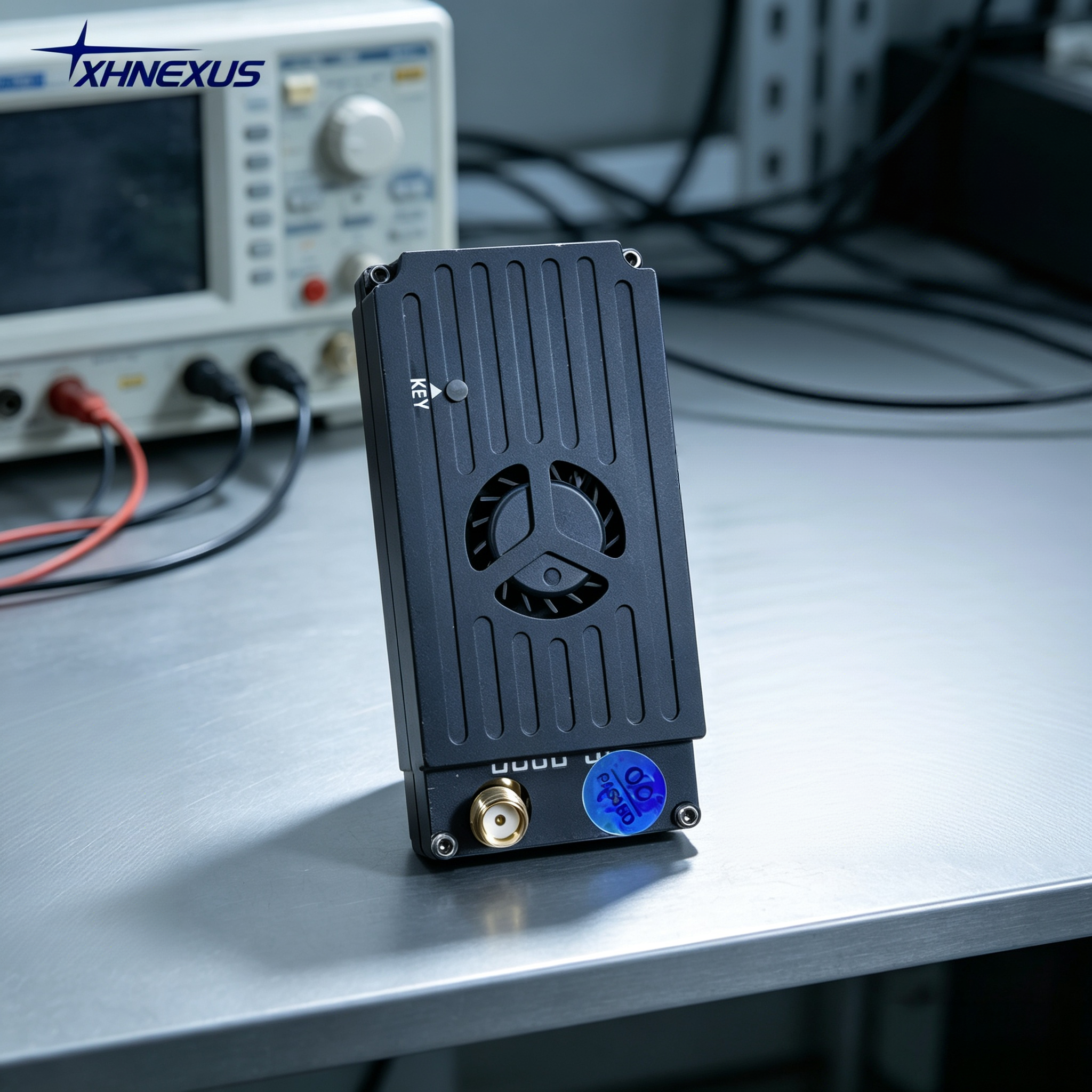

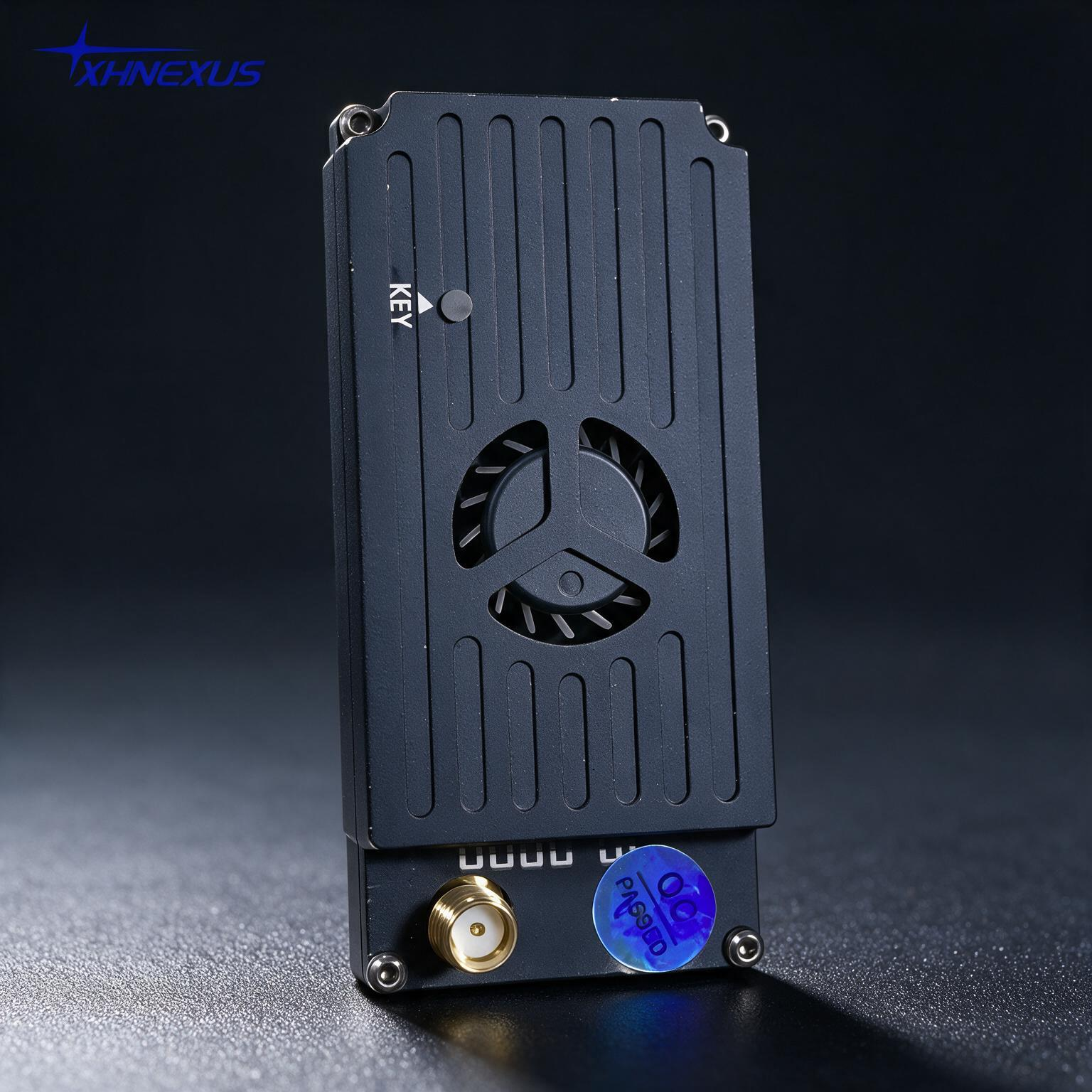

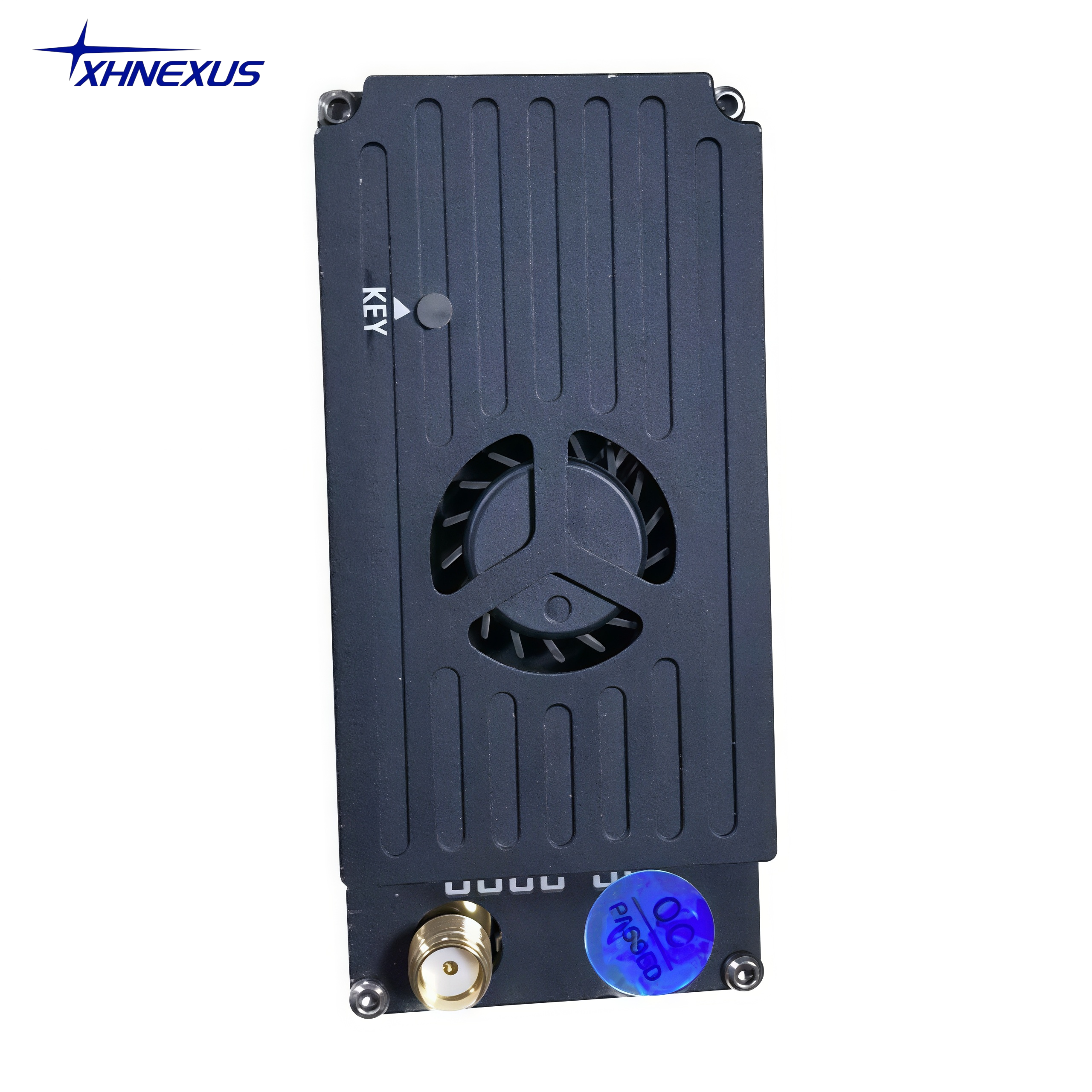

XH-R46 is a 4.6G analog VTX receiver module with 32 selectable channels and -85dB receiving sensitivity, stably receiving analog video signals in the 4.6G band. As a niche FPV frequency band, 4.6G has significantly lower co-channel interference than mainstream 5.8G, delivering more stable video with less dropout and artifacts in crowded flying fields and racing events. Powered by 5V low voltage with 390mA operating current for low power consumption. Only 3g weight and 26×73×7mm ultra-thin size, easy to integrate into ground stations, goggles and portable receiving devices, making it an ideal receiver solution for FPV racing and group flying scenarios.
| Item | Specification |
|---|---|
| Model | XH-R46 |
| Receiving Frequency | 4.6GHz |
| Channels | 32CH |
| Receiving Sensitivity | -85dB |
| Input Voltage | 5V DC |
| Operating Current | 390mA |
| Dimensions | 26mm×73mm×7mm |
| Weight | 3g |
FPV racing drones, group flying fields, FPV ground station reception, FPV goggle integration, high anti-interference wireless video transmission
