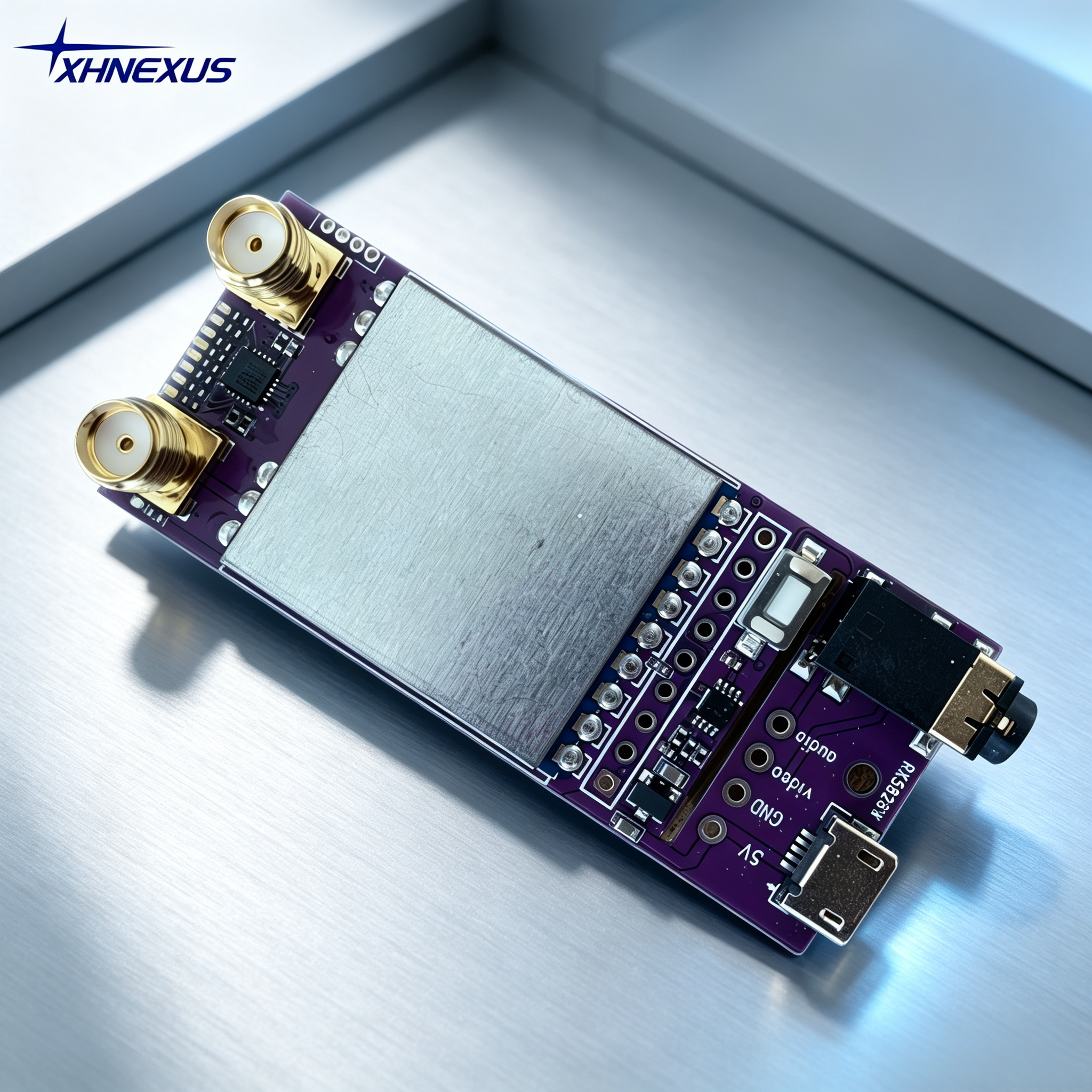

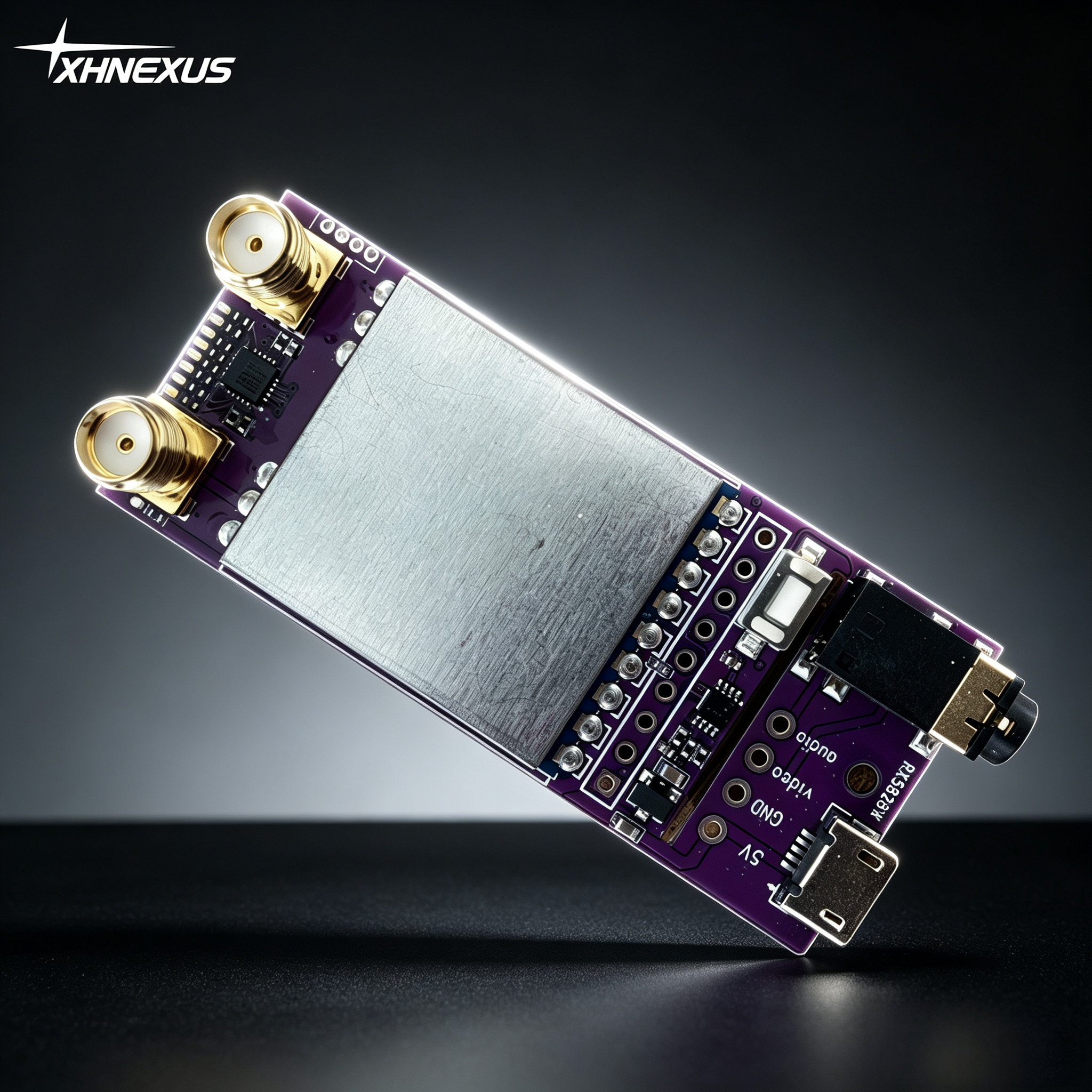

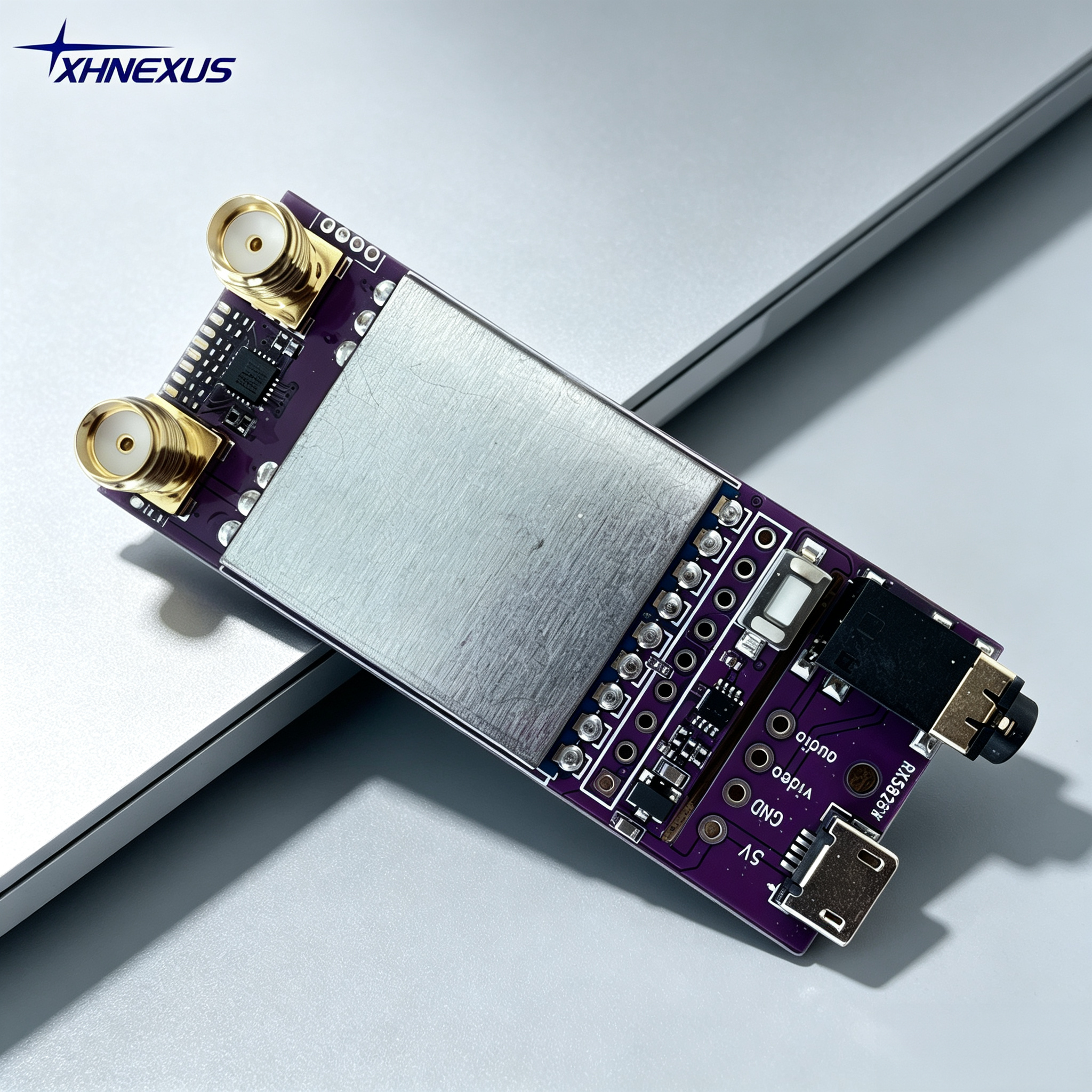

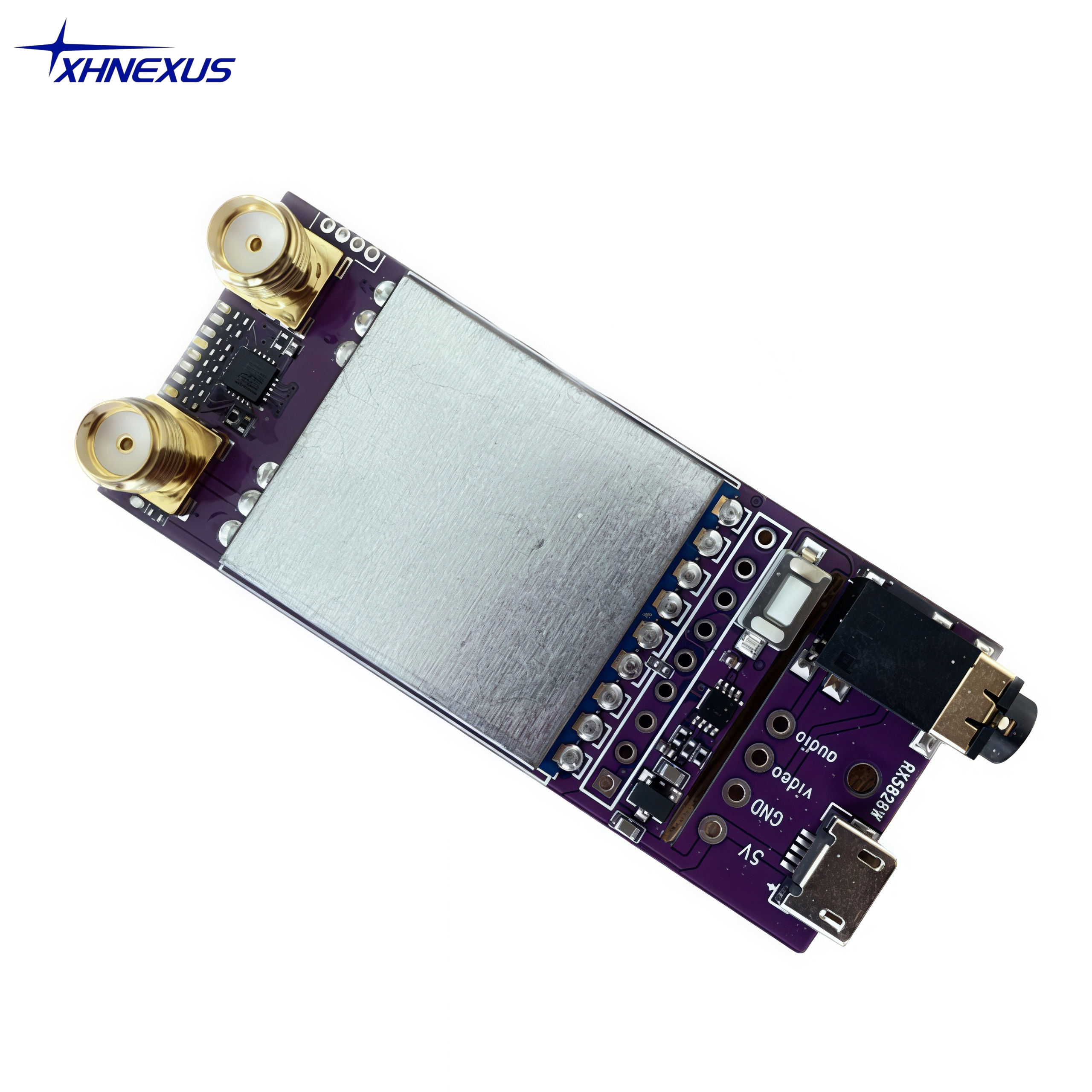

XH-R49 is a 4.9G analog VTX receiver module compatible with 5.8G 16-channel frequencies, delivering -85dB receiving sensitivity for stable analog video signal reception. Powered by 5V low voltage with 390mA operating current for low power consumption. Only 3g weight and 26×63×7mm ultra-thin compact size, easy to integrate into FPV video goggles, ground stations and portable receiving devices, a cost-effective receiver solution for short-to-mid range FPV flight.
| Item | Specification |
|---|---|
| Model | XH-R49 |
| Receiving Frequency | 4.9G (5.8G 16CH compatible) |
| Channels | 16CH |
| Receiving Sensitivity | -85dB |
| Input Voltage | 5V DC |
| Operating Current | 390mA |
| Dimensions | 26mm×63mm×7mm |
| Weight | 3g |
FPV video goggle integration, FPV ground station reception, portable video receiving devices, short-to-mid range FPV flight support
