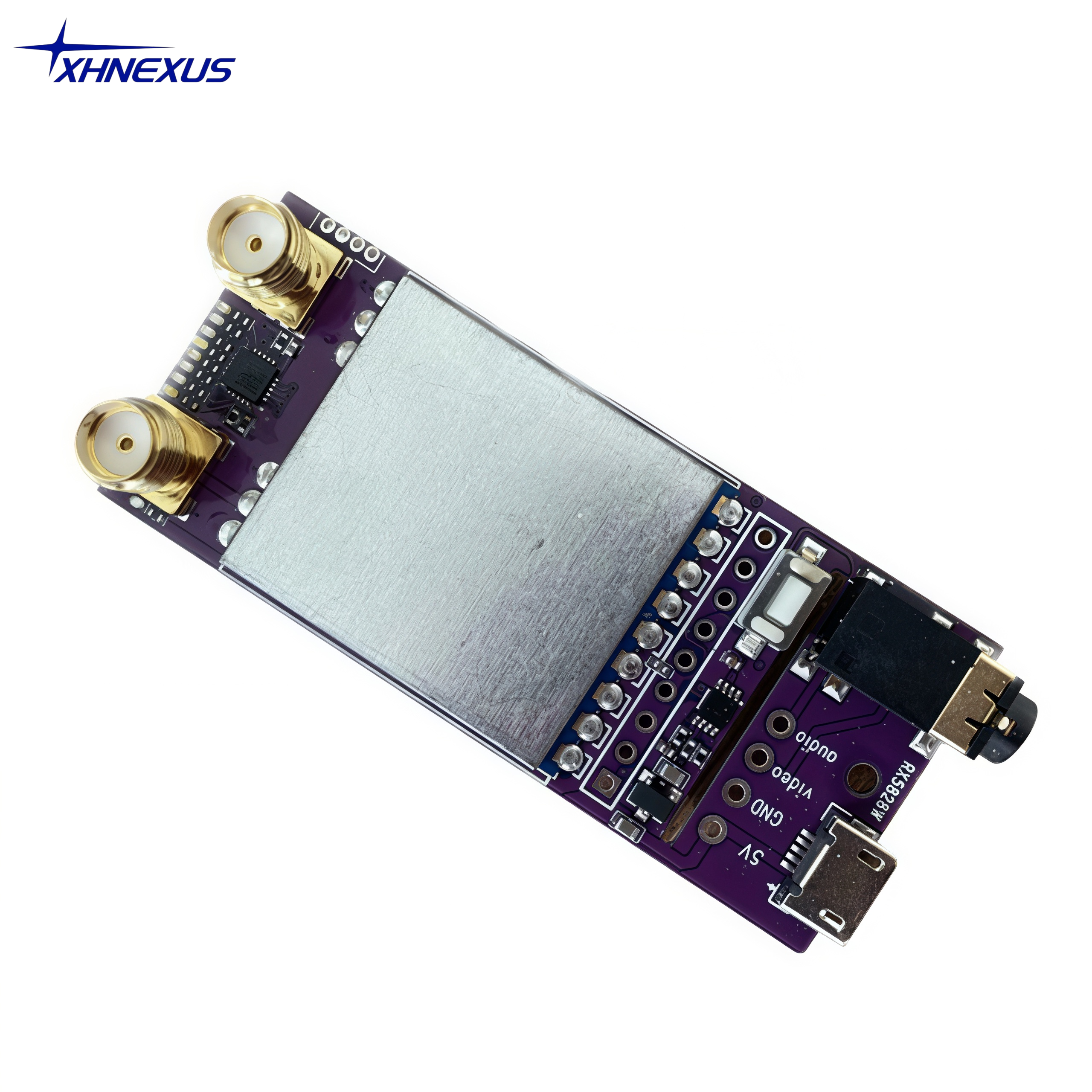

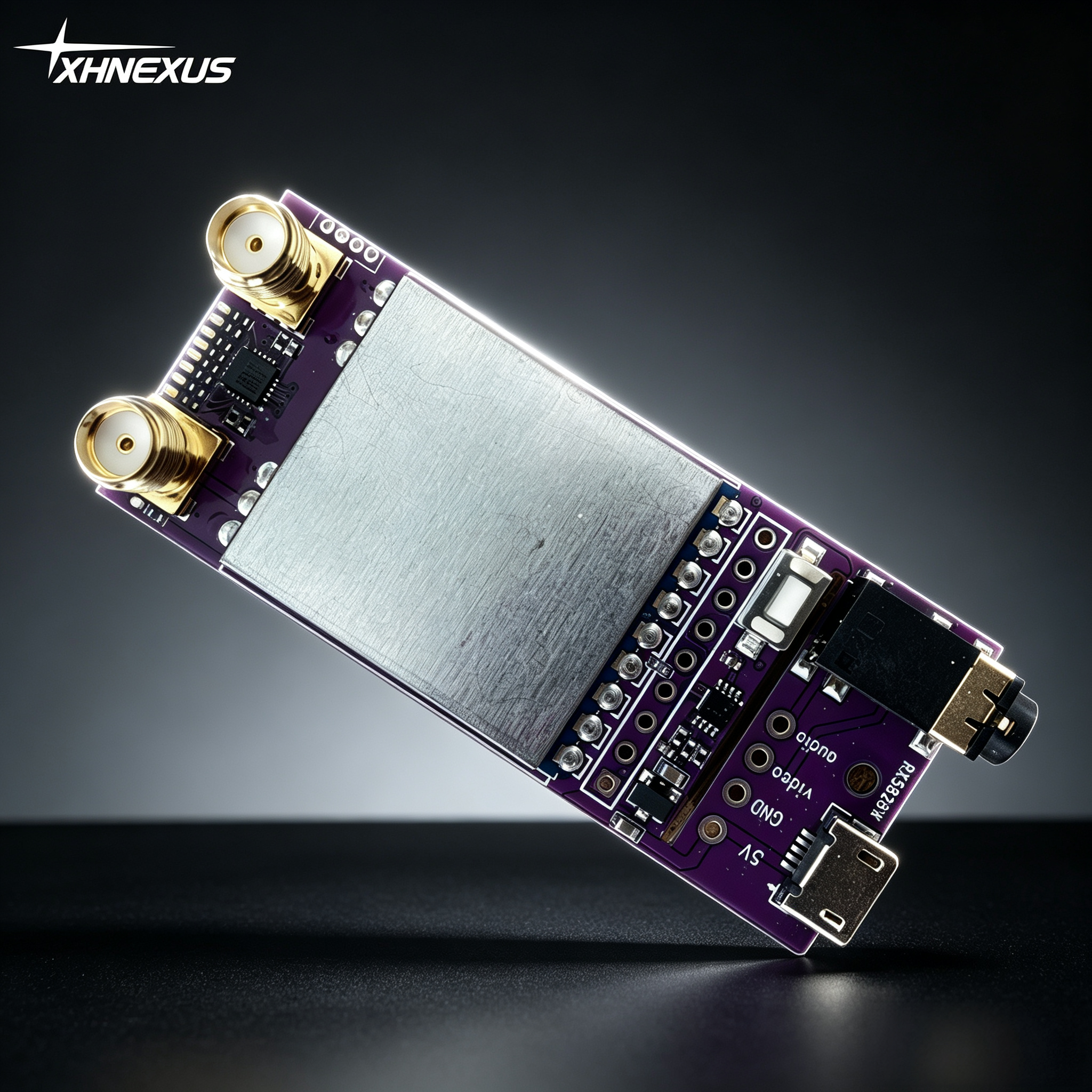

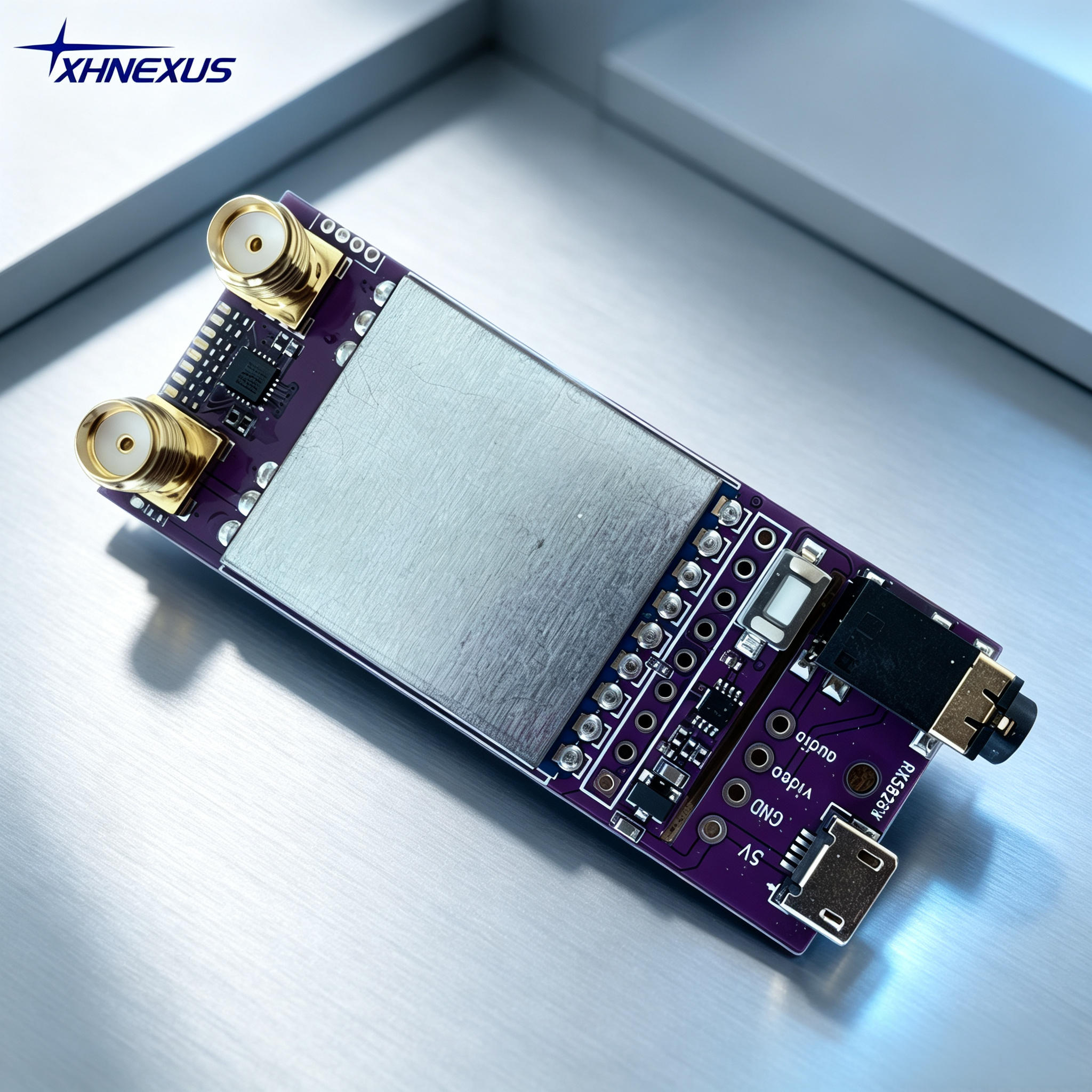

XH-R58 is a wide-band analog VTX receiver module for the mainstream 5.8G band, with 72-channel full band coverage, compatible with most 5.8G analog VTX transmitters on the market. It delivers -85dB receiving sensitivity for stable video reception even in weak signal environments. Powered by 5V low voltage with 390mA operating current for low power consumption. Only 3g weight and 26×63×7mm ultra-thin compact size, easy to integrate into FPV video goggles, ground stations and portable receiving devices, serving as a universal standard receiver solution for all types of FPV flight.
| Item | Specification |
|---|---|
| Model | XH-R58 |
| Receiving Frequency | 5.8GHz |
| Channels | 72CH |
| Receiving Sensitivity | -85dB |
| Input Voltage | 5V DC |
| Operating Current | 390mA |
| Dimensions | 26mm×63mm×7mm |
| Weight | 3g |
FPV video goggle integration, FPV ground station reception, portable video receiving devices, all types of FPV flight support
